Technical Specifications
General

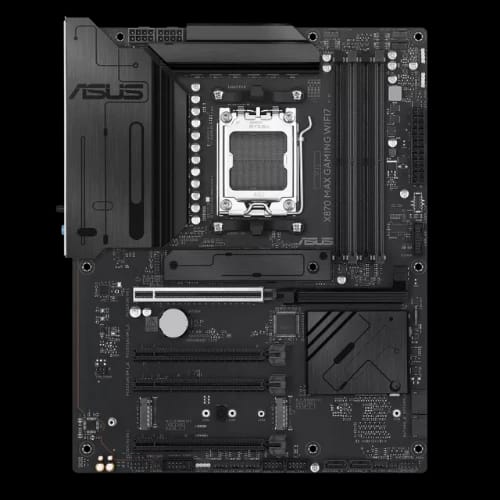

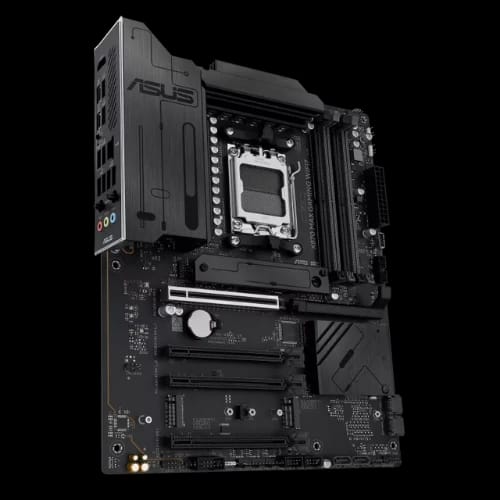

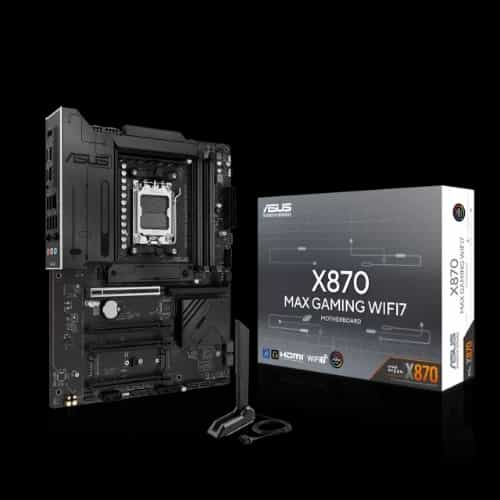

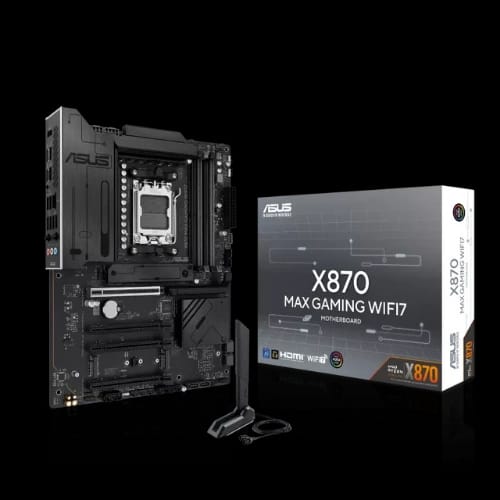

| Model | ASUS X870 MAX GAMING WIFI7 |
| Form Factor | ATX, 30.5 x 24.4 cm |
| Chipset | AMD X870 |
| CPU Socket | AM5 |
| Operating System | Windows 11 |
| Accessories | SATA cables, Wi-Fi antennas, M.2 screws, Quick Start Guide |
Memory
| Slots | 4 x DIMM |
| Max Capacity | 256GB DDR5 |
| Supported Speed | Up to 8000+ MT/s (OC) |
| ECC Support | ECC & Non-ECC, un-buffered |
| Memory Profiles | AMD EXPO™, ASUS AEMP |
| Channel | Dual Channel Architecture |
Graphics
| HDMI | 1 x HDMI 2.1, 4K@60Hz |
| USB4 Type-C | 2 x Ports, Display Support |
| PCIe Slots | 1 x PCIe 5.0 x16, 2 x PCIe 4.0 x16, 1 x PCIe 3.0 x16 |
Storage
| M.2 Slots | 3 x Key M, PCIe 5.0/4.0 x4 |
| SATA Ports | 4 x 6Gb/s |
| RAID Support | AMD RAIDXpert2: 0/1/5/10 |
Networking
| Ethernet | Realtek 2.5Gb LAN, ASUS LANGuard |
| Wi-Fi | Wi-Fi 7 2x2, 2.4/5/6GHz |
| Bluetooth | v5.4 |
USB Ports
| Rear | 2 x USB4 Type-C, 1 x USB 10Gbps, 3 x USB 5Gbps, 4 x USB 2.0 |
| Front | 1 x USB 20Gbps Type-C, 1 x USB 5Gbps header, 2 x USB 2.0 headers |
Audio
| Codec | Realtek 7.1 HD Audio |
| Features | Jack-detection, Multi-streaming, Front Panel Retasking |
| Playback | 24-bit/192 kHz |
| Enhancements | Audio Shielding, Premium Capacitors, Dedicated PCB Layers |
Warranty
| Duration | 3 Years |
