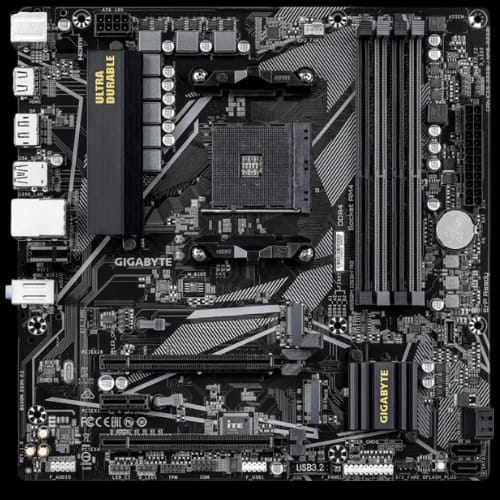

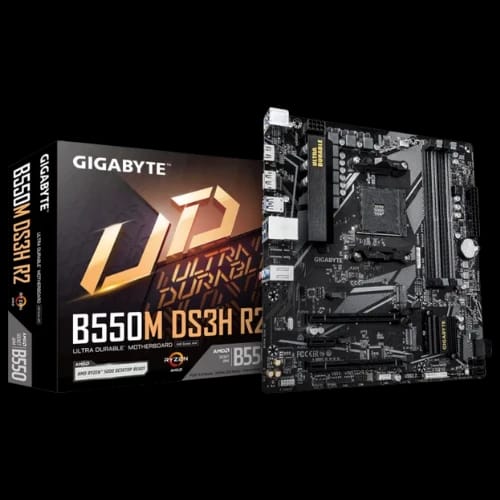

GIGABYTE B550M DS3H R2 mATX AM4 Motherboard

Product Description

Powerful GIGABYTE B550M DS3H R2 mATX AM4 Motherboard for Reliable Ryzen Performance

Slow storage or limited upgrades? The GIGABYTE B550M DS3H R2 mATX AM4 Motherboard gives AM4 builders a capable B550 platform for modern Ryzen systems. As a dependable Desktop Component, it combines Ryzen support, four DDR4 slots, dual M.2 storage, PCIe 4.0 capability, and practical headers inside a compact Micro ATX design.

This motherboard fits gaming PCs, creator workstations, office desktops, and home computers. Many users searching for the best budget motherboard appreciate its balanced upgrade path, making it a practical choice for everyday computing and gaming in Bangladesh.

Is the GIGABYTE B550M DS3H R2 Ready for Ryzen?

The AMD B550 chipset with Socket AM4 supports Ryzen 5000 Series, Ryzen 5000 G-Series, Ryzen 4000 G-Series, Ryzen 3000 Series, and Ryzen 3000 G-Series processors. If you are comparing Gigabyte AMD motherboards in Bangladesh, processor compatibility remains one of the most important buying factors because it directly affects PCIe generation, graphics support, memory speed, and storage bandwidth.

Ryzen Compatibility and PCIe Performance

Ryzen 5000 and Ryzen 3000 Series processors enable PCIe 4.0 x16 on the primary graphics slot. Compatible non-G processors also unlock PCIe 4.0 NVMe performance via the CPU-connected M.2 connector, while G-Series processors use PCIe 3.0 for these connections.

Always verify processor compatibility through GIGABYTE's official CPU support list before purchasing.

How Strong Are DDR4 Memory and Storage Options?

This motherboard includes four DDR4 DIMM slots supporting up to 128GB memory using 32GB modules. Dual-channel architecture, XMP, ECC unbuffered, and non-ECC unbuffered memory provide flexibility for different workloads.

Memory and Storage Flexibility

Memory speeds range from DDR4-2133 to DDR4-3200, while supported overclocking profiles reach DDR4-4733 O.C. Actual performance depends on the processor, memory kit, and module configuration.

Storage highlights include:

• Two M.2 2280 connectors supporting PCIe or SATA SSDs
• PCIe 4.0 support on the CPU-connected M.2 slot with compatible processors
• Four SATA 6Gb/s ports
• RAID 0, RAID 1, and RAID 10 support for NVMe and SATA drives

This configuration works well for operating systems, gaming libraries, creative projects, and long-term storage.

What Display, Audio, and LAN Features Are Included?

Ryzen processors with Radeon Graphics support DisplayPort 1.4 and HDMI 2.1 video outputs. DisplayPort reaches up to 5120 × 2880 at 60Hz, while HDMI supports up to 4096 × 2160 at 60Hz. HDR and HDCP 2.3 support depend on the installed processor.

Multimedia and Network Experience

The Realtek ALC1220 audio codec delivers 2, 4, 5.1, and 7.1-channel High Definition Audio, while the rear line-out also supports DSD audio playback.

Realtek Gigabit Ethernet provides stable wired networking up to 1Gbps for gaming, office productivity, and large downloads.

Does This B550 Motherboard Offer Practical Expansion?

The primary PCIe x16 slot supports graphics cards or compatible NVMe adapter cards. An additional full-length PCIe 3.0 x4 slot and one PCIe 3.0 x1 slot provide expansion options for additional hardware.

Connectivity for Future Upgrades

Rear I/O includes four USB 3.2 Gen 1 ports and two USB 2.0/1.1 ports. Internal headers provide USB Type-C, USB 3.2 Gen 1, and USB 2.0 support for compatible PC cases.

Additional onboard features include:

• Addressable RGB and RGB headers
• CPU cooler lighting support
• CPU and system fan headers
• RGB Fusion lighting compatibility

How Do Monitoring and Q-Flash Plus Help?

Hardware monitoring tracks voltage, temperatures, fan speeds, overheating conditions, and fan failure alerts. Compatible cooling fans also support automatic speed control for improved thermal management.

Firmware Updates and Software Tools

Q-Flash Plus includes a dedicated firmware update button, while standard Q-Flash remains available. APP Center offers model-dependent utilities such as @BIOS, EasyTune, RGB Fusion, Smart Backup, and System Information Viewer.

The motherboard supports Windows 11 64-bit and Windows 10 64-bit operating systems.

Who Should Choose This Micro ATX AM4 Board?

The 24.4 × 24.4cm Micro ATX form factor fits many compatible PC cases. Students, professionals, developers, gamers, freelancers, and content creators can all benefit from its balanced features and expansion capability.

Four DDR4 slots, dual M.2 connectors, four SATA ports, Gigabit LAN, multiple display outputs, and RGB headers provide useful room for future upgrades without increasing system complexity.

Where to Buy GIGABYTE B550M DS3H R2 Online in BD?

If you are exploring GIGABYTE brand Products, this motherboard offers an excellent balance of Ryzen compatibility, storage flexibility, and long-term value. Customers planning to build your own pc online can easily pair it with compatible Ryzen processors, DDR4 memory, graphics cards, and SSDs for a complete system.

For buyers searching for the latest motherboard price in Bangladesh, PCB Store in BD provides genuine products, reliable after-sales support, warranty assistance, technical guidance, and nationwide delivery. Availability and pricing may change, so checking current stock before ordering is recommended. The motherboard includes a three-year warranty supported through PCB Store across Bangladesh.
