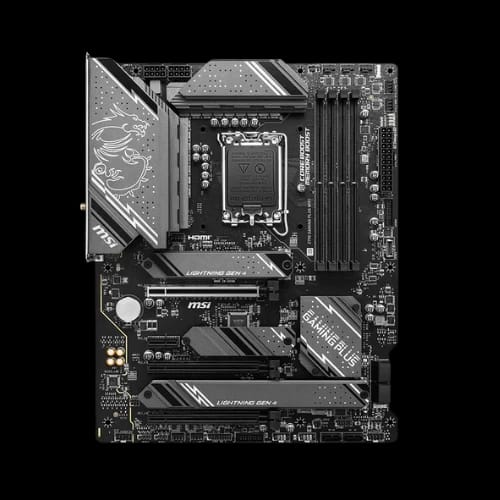

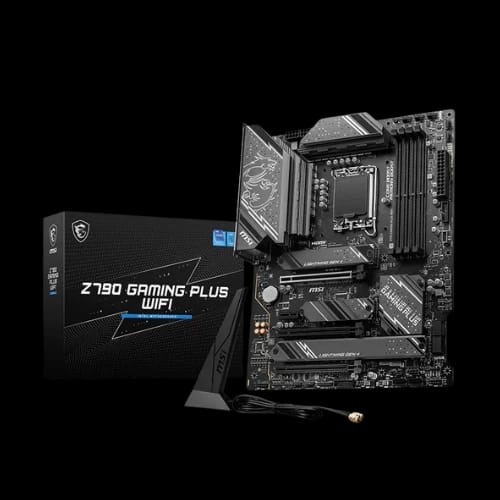

MSI Z790 GAMING PLUS Wi-Fi 6E DDR5 Intl LGA 1700 Motherboard

Product Description

MSI Z790 GAMING PLUS Wi-Fi 6E DDR5 Intl LGA 1700 Motherboard

Struggling with limited storage, slow networking, or restricted CPU upgrades? The MSI Z790 GAMING PLUS Wi-Fi 6E DDR5 motherboard solves those concerns.

Built around the Intel Z790 chipset, this ATX motherboard supports Intel Core 14th, 13th, and 12th Gen processors. It combines DDR5 memory, PCIe 5.0 graphics support, four M.2 slots, Wi-Fi 6E, and Intel 2.5Gbps LAN.

For gamers, creators, developers, and demanding office users, it provides a strong base for an LGA 1700 desktop. The MSI Z790 GAMING PLUS Wi-Fi 6E DDR5 Intl LGA 1700 Motherboard is available through PCB Store in Bangladesh.

MSI Z790 GAMING PLUS Wi-Fi 6E DDR5 Performance Overview

The Intel Z790 chipset offers broad connectivity and expansion for performance-focused desktop builds. Its LGA 1700 socket supports Intel Core 14th, 13th, and 12th Gen processors, plus selected Pentium Gold and Celeron chips.

This wide processor support gives builders more freedom when selecting a CPU. You can create a balanced gaming PC, high-performance workstation, or productivity system without changing the motherboard platform.

The ATX board measures 243.84mm × 304.8mm. It fits standard ATX-compatible computer cases and provides enough physical space for multiple expansion cards, storage drives, cooling connections, and RGB accessories.

DDR5 Memory and Intel XMP 3.0 Support

Four DDR5 DIMM slots support dual-channel memory operation. The supplied primary specification lists a maximum memory capacity of 256GB, while another supplied product data block lists 192GB.

Memory frequency support ranges from DDR5-4800 JEDEC to DDR5-7200+ through overclocking. Actual speed depends on memory rank, module count, processor capability, BIOS configuration, and installed memory kit.

Supported overclocking configurations include:

• Up to 7200+MHz with 1DPC 1R
• Up to 6600+MHz with 1DPC 2R
• Up to 6400+MHz with 2DPC 1R
• Up to 5600+MHz with 2DPC 2R

Intel XMP 3.0 support simplifies compatible memory profile configuration. The board supports non-ECC, unbuffered DDR5 memory and dual-controller dual-channel operation.

PCIe 5.0 Expansion for Modern Graphics Cards

The primary PCIe x16 slot connects directly to the processor and supports PCIe 5.0 x16. This slot accommodates modern gaming graphics cards and provides bandwidth headroom for future GPU generations.

The motherboard includes three PCIe x16-sized slots and one PCIe x1 slot. Additional chipset-connected slots support PCIe 4.0 x4 and PCIe 3.0 x1 operation.

This layout benefits users who need more than a graphics card. Capture cards, network adapters, sound cards, storage controllers, and other add-in devices can be installed based on slot availability.

Four M.2 Slots and Six SATA Ports

Storage flexibility is a major strength of the MSI Z790 GAMING PLUS Wi-Fi 6E. It includes four M.2 sockets and six SATA 6Gbps ports.

The first M.2 slot connects through the CPU and supports PCIe 4.0 x4 drives. It accepts 2242, 2260, 2280, and 22110 form factors.

The remaining M.2 sockets connect through the Z790 chipset. Two slots support PCIe 4.0 x4 or SATA mode, while another supports PCIe 4.0 x4 storage.

Both SATA and M.2 NVMe storage support RAID 0, RAID 1, RAID 5, and RAID 10. Users can configure storage around speed, redundancy, capacity, or workload requirements.

This combination suits large game libraries, video projects, software development environments, office databases, and multi-drive backup systems.

Wi-Fi 6E, Bluetooth 5.3, and 2.5Gbps LAN

Intel Wi-Fi 6E provides access to 2.4GHz, 5GHz, and supported 6GHz wireless networks. With a compatible router and local regulatory support, wireless transfer rates can reach up to 2.4Gbps.

The pre-installed wireless module supports MU-MIMO and 802.11 a/b/g/n/ac/ax standards. Wi-Fi 6E 6GHz operation may depend on regional regulations and Windows 11 support.

Bluetooth 5.3 supports compatible keyboards, mice, controllers, headsets, speakers, and mobile devices. Wired users receive an Intel 2.5Gbps LAN port for fast local networking and internet connectivity.

These options benefit online gamers, streamers, freelancers, developers, and users transferring large files across a local network.

USB, Display, Audio, and Internal Connectivity

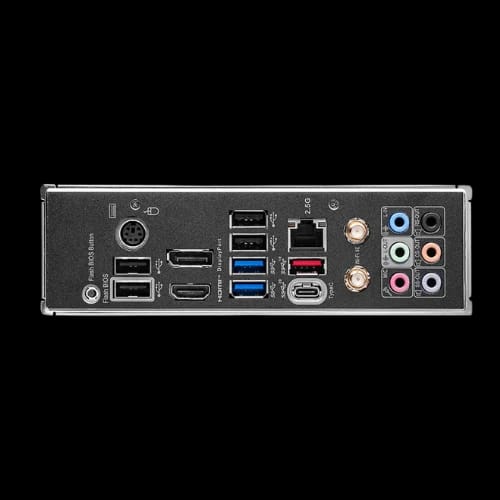

The rear panel includes USB 2.0, USB 5Gbps Type-A, USB 10Gbps Type-A, and USB 20Gbps Type-C connections. Front-panel headers add USB 2.0, USB 5Gbps Type-A, and USB 10Gbps Type-C support.

Display outputs include HDMI 2.1 and DisplayPort 1.4. They work only when the installed processor has integrated graphics.

The supplied information lists HDMI output at up to 4K 60Hz. DisplayPort resolution appears as 4K 60Hz in one specification block and 8K 60Hz in another.

Realtek ALC897 audio delivers 7.1-channel high-definition sound. The board also supports S/PDIF output through the listed audio configuration.

Internal headers include:

• One CPU fan header
• One pump fan header
• Six system fan headers
• Two addressable RGB headers
• Two standard RGB headers
• TPM 2.0 header
• USB4 card connector
• Front audio and front-panel headers

Four EZ Debug LEDs help identify CPU, memory, graphics, or boot-related problems during system assembly and troubleshooting.

Who Should Buy This MSI Z790 Motherboard?

The MSI Z790 GAMING PLUS Wi-Fi 6E suits users building a feature-rich Intel DDR5 desktop.

Gamers can pair it with a compatible Intel Core processor, dedicated graphics card, fast NVMe storage, and high-frequency DDR5 memory. Content producers and video editors gain multiple storage connections and broad USB support.

Software developers, freelancers, IT firms, and office professionals can benefit from 2.5Gbps LAN, Wi-Fi 6E, Bluetooth 5.3, and extensive multi-drive support. Tech hobbyists also receive useful debugging LEDs, RGB headers, fan connections, and expansion options.

Warranty and Availability at PCB Store Bangladesh

The MSI Z790 GAMING PLUS Wi-Fi 6E DDR5 Intl LGA 1700 Motherboard includes a three-year manufacturing warranty.

PCB Store provides dependable after-sales assistance across Bangladesh. Our team handles eligible warranty claims, technical concerns, and product support directly through PCB Store.

Buyers searching for the MSI Z790 GAMING PLUS Wi-Fi 6E price in Bangladesh can check current stock and pricing at PCB Store. Availability may change, particularly during processor launches, gaming PC campaigns, and DDR5 upgrade periods.
