Gigabyte B760M D2H DDR5 13th & 12th Gen Intel Motherboard

Product Description

Gigabyte B760M D2H DDR5 13th & 12th Gen Intel Motherboard

Slow system response with old DDR4 boards? Gigabyte B760M D2H DDR5 13th & 12th Gen Intel Motherboard fixes that upgrade pain with DDR5 support, PCIe 4.0 expansion, dual M.2 storage, and strong Intel platform compatibility. For users building a modern Intel PC in Bangladesh, this Micro ATX motherboard gives a practical balance of speed, connectivity, and upgrade flexibility.

This motherboard fits buyers who want current-generation Intel performance without moving into an expensive enthusiast board. It supports 14th, 13th, and 12th Generation Intel Core processors, along with Pentium Gold and Celeron processors on the LGA1700 socket. That makes it suitable for office PCs, student builds, home systems, productivity desktops, and budget gaming setups.

At PCB Store Bangladesh, the Gigabyte B760M D2H DDR5 motherboard is a smart pick for users who need DDR5 memory, fast storage, 2.5GbE LAN, and reliable warranty support from one place.

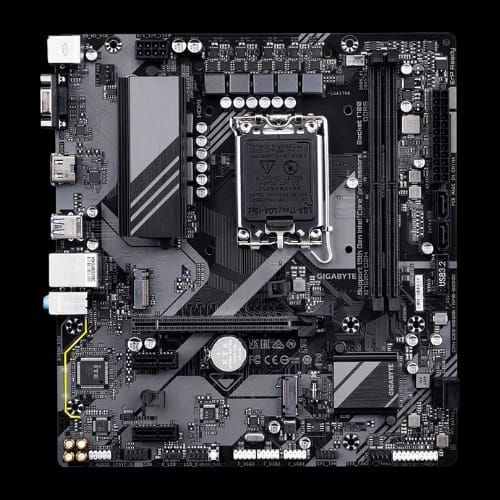

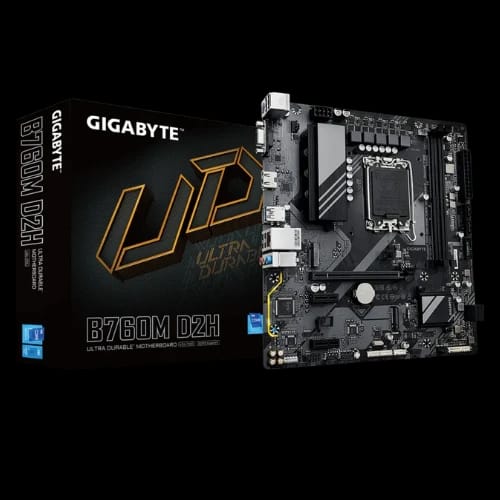

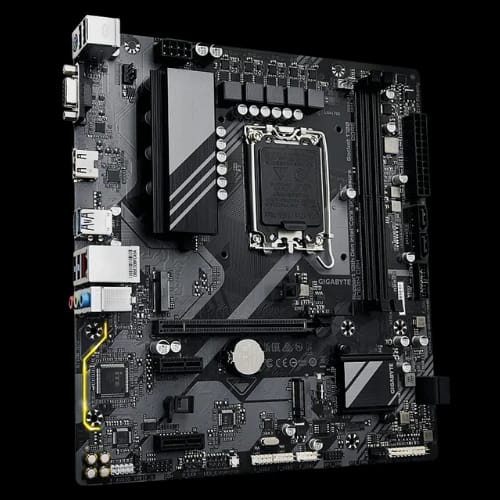

Gigabyte B760M D2H DDR5 Motherboard Specifications and Performance Overview

The Gigabyte B760M D2H DDR5 is based on the Intel B760 Express Chipset. It uses the LGA1700 socket and supports Intel 14th, 13th, and 12th Generation Core processors, depending on BIOS and CPU support list compatibility.

For memory, it includes 2 x DDR5 DIMM slots with support up to 128GB system memory. The board supports DDR5 speeds from 4000 MT/s up to 8000(O.C.) MT/s, depending on CPU, memory kit, and configuration. It also supports dual-channel memory architecture and XMP memory modules, which helps users run compatible DDR5 kits at tuned performance profiles.

Graphics output is handled through Intel HD Graphics support from compatible processors. The motherboard includes one D-Sub port with up to 1920x1200 at 60Hz and one HDMI port supporting up to 4096x2160 at 60Hz. HDMI 2.1 and HDCP 2.3 support make it useful for office displays, home monitors, and 4K screen output when paired with supported CPUs.

Storage performance is one of the strongest practical areas. The board includes 2 x M.2 connectors for PCIe 4.0 x4/x2 SSDs and 4 x SATA 6Gb/s connectors. SATA RAID 0, RAID 1, RAID 5, and RAID 10 support is available for users managing multiple drives.

Key Features of Gigabyte B760M D2H DDR5 Intel Motherboard

The biggest appeal of this motherboard is its clean platform value. It brings DDR5 memory and PCIe 4.0 storage into a Micro ATX build while keeping essential connectors intact.

Key feature highlights include:

• LGA1700 socket for Intel 14th, 13th, and 12th Gen processors
• Intel B760 Express Chipset for modern Intel desktop builds
• DDR5 memory support up to 128GB
• DDR5 8000(O.C.) support with compatible memory
• Dual PCIe 4.0 M.2 connectors
• Realtek 2.5GbE LAN for faster wired networking
• Q-Flash and Q-Flash Plus support
• HDMI 2.1 output with 4K 60Hz support
• Micro ATX form factor for compact PC cases
• 3 years warranty support

The PCI Express layout is also practical. The CPU-linked PCIe x16 slot supports PCIe 4.0 and runs at x16, designed for a graphics card or NVMe SSD. The chipset also provides 2 x PCIe 3.0 x1 slots for smaller expansion cards.

DDR5 Memory and Storage Benefits for Real PC Users

DDR5 support matters for users building a PC that should stay relevant longer. With up to 128GB memory support, this Gigabyte motherboard gives enough headroom for multitasking, browser-heavy workloads, coding, office suites, and creator applications.

For students and office executives, dual-channel DDR5 can help keep daily use responsive. For software developers, the memory capacity helps with IDEs, local servers, containers, browsers, and background tools. For freelancers, this makes the system more capable for mixed work like design, documentation, communication, and light editing.

The dual M.2 PCIe 4.0 slots are equally useful. One fast NVMe SSD can handle Windows and software, while another can store active projects or games. The 4 x SATA ports are useful for adding hard drives or SATA SSDs for backup, media, or bulk storage.

Connectivity, Audio, LAN, and USB Support

The Realtek 2.5GbE LAN chip supports 2.5Gbps, 1Gbps, and 100Mbps network speeds. This is useful for users with high-speed internet, office networks, NAS storage, or large file transfers. For Bangladesh-based users working from home or small offices, wired 2.5GbE networking gives better stability than many basic LAN options.

Audio is handled by a Realtek Audio CODEC with High Definition Audio support. The board supports 2/4/5.1/7.1-channel audio, and 7.1-channel configuration can be adjusted through audio software. It also includes S/PDIF Out support.

USB support covers everyday peripherals well. The rear panel includes 4 x USB 3.2 Gen 1 ports and 2 x USB 2.0/1.1 ports. Internal headers add more USB options for front-panel case connectivity.

Back panel connectors include:

• PS/2 keyboard/mouse port
• D-Sub display output
• HDMI display output
• 4 x USB 3.2 Gen 1 ports
• 2 x USB 2.0/1.1 ports
• RJ-45 LAN port
• 3 x audio jacks

Power, Monitoring, Cooling, and Build Control

The Gigabyte B760M D2H DDR5 uses a 24-pin ATX main power connector and an 8-pin ATX 12V power connector. Internal cooling support includes 1 x CPU fan header and 2 x system fan headers. It also supports fan speed detection, fan fail warning, fan speed control, temperature detection, voltage detection, and water cooling flow rate detection.

This matters in real PC builds. A motherboard that can monitor fan speed and temperature helps users track system condition inside BIOS or supported software. Fan speed control depends on the installed cooler, but the hardware monitoring options are useful for practical maintenance.

RGB builders also get 1 x addressable LED strip header and 1 x RGB LED strip header. The board supports GIGABYTE Control Center, though available applications and functions may vary by motherboard model.

Ideal Use Cases for Gigabyte B760M D2H DDR5 in Bangladesh

This motherboard fits several user types. School and college students can build a fast study PC with Intel integrated graphics and later add a graphics card. Office users get stable display output, fast wired LAN, and enough USB ports for daily work.

Software developers can benefit from DDR5 capacity, dual M.2 SSD support, and Windows 11 64-bit support. Freelancers who manage documents, websites, basic design tools, and communication apps will appreciate the clean upgrade path.

For entry-level gamers and tech hobbyists, the PCIe 4.0 x16 slot allows a dedicated graphics card. Content producers and video editors can use fast NVMe storage and high memory capacity, though final performance will depend heavily on the CPU, RAM, SSD, and graphics card used.

This is not an oversized board with unnecessary extras. It is a focused Micro ATX motherboard for users who need modern Intel platform essentials at a sensible value.

Reliability, Warranty, and PCB Store Purchase Confidence

The Gigabyte B760M D2H DDR5 comes with 3 years warranty. That matters because a motherboard is the foundation of the whole PC. CPU, RAM, SSD, graphics card, cooling, and power all depend on stable board-level compatibility.

PCB Store provides reliable after-sales service across Bangladesh. Our team handles warranty claims, technical issues, and product support directly through PCB Store. For buyers searching Gigabyte B760M D2H DDR5 price in Bangladesh, local support is just as important as the product itself.

Availability can change quickly because DDR5 Intel motherboards are in steady demand. For a modern LGA1700 build with DDR5 memory, dual M.2 PCIe 4.0 storage, 2.5GbE LAN, Q-Flash Plus, and Micro ATX sizing, this model is a strong choice at PCB Store Dhaka and across Bangladesh.
