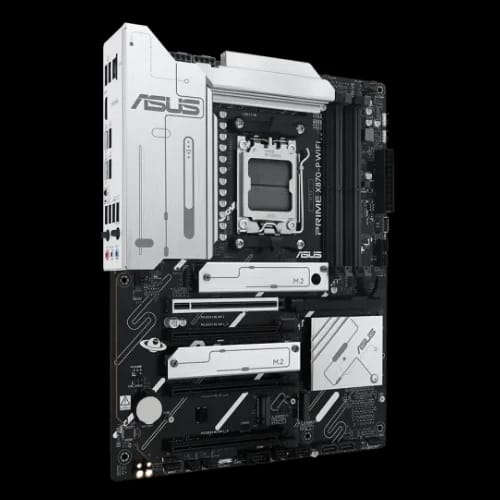

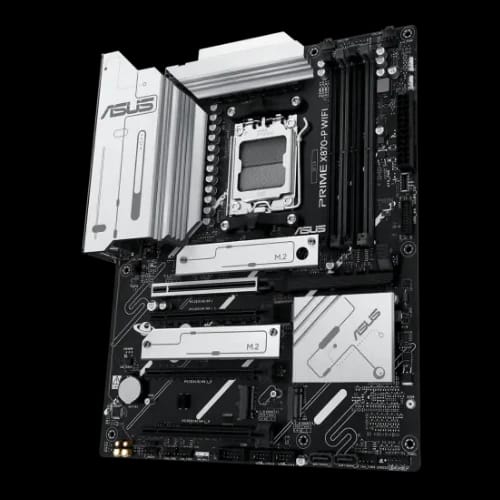

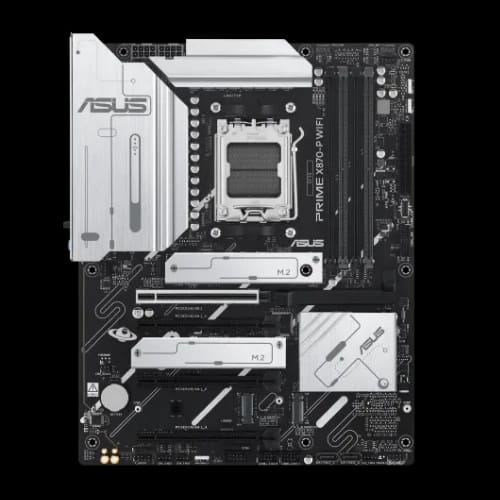

ASUS PRIME X870-P WIFI-CSM AM5 ATX Motherboard

Product Description

ASUS PRIME X870-P WIFI-CSM AM5 ATX Motherboard is built for PC builders who want control, stability, and a future-ready AM5 platform, making it a strong fit for anyone comparing an ASUS AMD Motherboard for a new Ryzen setup. It centers on AMD’s AM5 ecosystem while keeping the layout, connectivity, and management features practical. This board supports modern Ryzen systems that need high bandwidth, steady power delivery, and long-term usability, whether you’re planning a clean upgrade path or a fresh build around a reliable Motherboard. Based on the AMD X870 chipset, it supports Ryzen 9000, 8000, and 7000 series desktop processors and balances performance headroom with professional-grade features, from memory profile support to straightforward connectivity expansion.

ASUS PRIME X870-P WIFI-CSM Specifications and Performance Overview

The ASUS PRIME X870-P WIFI-CSM AM5 ATX Motherboard follows the standard ATX form factor. Its layout supports full-sized builds with proper spacing for airflow and expansion.

Core Platform Specifications

• Form Factor: ATX (12" x 9.6")
• Socket: AMD AM5
• Chipset: AMD X870
• Supported CPUs: AMD Ryzen 9000, 8000, and 7000 series
• Operating System: Windows 1

This board supports modern Ryzen CPUs without compromise. BIOS management tools support system recovery and updates without CPU installation.

Memory Architecture and Capacity

Memory support defines system responsiveness and multitasking range.

• Slots: 4 × DDR5 DIMM
• Max Capacity: Up to 256 GB
• Speed Support: Up to 8000+ MT/s (OC)
• Channels: Dual-channel
• Profiles: AMD EXPO, ASUS AEMP
• ECC: ECC and non-ECC, unbuffered

On-die ECC support improves memory reliability even with non-ECC modules. This suits long workloads and productivity-focused systems.

ASUS PRIME X870-P WIFI-CSM Key Features and User Benefits

This motherboard focuses on build efficiency and long-term stability rather than excess styling.

Expansion Slot Configuration

Expansion flexibility depends on CPU generation.

• Ryzen 9000 / 7000:
• 1 × PCIe 5.0 x16 (x16 mode)
• Ryzen 8000:
• 1 × PCIe 4.0 x16 (x8/x4 mode)
• Chipset Slots:
• 3 × PCIe 4.0 x16 (x1 mode)

SafeSlot Core+ reinforces primary GPU support. PCIe Q-Release simplifies graphics card removal.

Storage Layout and RAID Support

High-speed storage remains a key strength.

M.2 Slots: 4 total

• M.2_1: PCIe 5.0 x4 or PCIe 4.0 x4
• M.2_2: PCIe 4.0 x4
• M.2_3: PCIe 4.0 x4
• M.2_4: PCIe 3.0 x2

SATA: 2 × SATA 6Gb/s

RAID support varies by CPU generation. Bandwidth sharing exists between some M.2 and PCIe slots. ASUS provides mapping details through official documentation.

ASUS PRIME X870-P WIFI-CSM Power Design and Thermal Control

Stable power delivery supports sustained CPU performance.

Power Connectors and VRM Design

Power Inputs:

• 1 × 24-pin ATX
• 2 × 8-pin EPS

DIGI+ VRM with DrMOS components controls voltage regulation. ProCool connectors improve contact stability under load.

Cooling and Thermal Management

Thermal layout focuses on practical airflow.

Fan Headers:

• CPU Fan
• CPU OPT
• AIO Pump
• 4 × Chassis Fans

VRM and M.2 heatsinks help manage sustained thermal loads. Fan Xpert 4 with AI Cooling II supports dynamic fan tuning.

ASUS PRIME X870-P WIFI-CSM Connectivity and Networking Capabilities

Modern systems depend on high-bandwidth connections.

Wired and Wireless Networking

• Ethernet: Realtek 2.5 Gb LAN with ASUS LANGuard
• Wireless: Wi-Fi 7 (802.11be, 2x2)
• Bluetooth: Version 5.4

Wi-Fi 7 supports 2.4, 5, and 6 GHz bands with speeds up to 2.9 Gbps. This suits fast local networks and future routers.

USB and Display Connectivity

Rear and front USB options support high-speed devices.

Rear USB Ports (10 total):

• 2 × USB4 Type-C (40 Gbps)
• 1 × USB 10Gbps Type-A
• 3 × USB 5Gbps Type-A
• 4 × USB 2.0 Type-A

Front USB Support (7 total):

• USB 10Gbps Type-C
• USB 5Gbps header
• USB 2.0 headers

USB Type-C power delivery supports up to 5V / 3A output.

Display Output Support

• HDMI: 1 × HDMI 2.1 (4K@60Hz)
• USB4 Display: Dual USB4 ports support DisplayPort 1.4a output

This configuration supports multi-display setups without a discrete GPU.

ASUS PRIME X870-P WIFI-CSM Audio and Internal Features

Audio design focuses on signal clarity and component isolation.

• Codec: Realtek 7.1 HD Audio
• Playback: Up to 24-bit / 192 kHz

Design Elements:

• Audio shielding
• Premium capacitors
• Dedicated PCB layers

Front panel 7.1 output requires an HD audio module.

Internal Headers and Customization

• Internal connectors support system expansion.
• Addressable Gen 2 RGB headers
• Aura RGB header
• Clear CMOS
• COM and TPM headers
• S/PDIF out

Aura Sync supports unified RGB control across compatible devices.

ASUS PRIME X870-P WIFI-CSM Compatibility and Ideal Use Cases

This motherboard suits builders who want flexibility without complexity.

Recommended Use Scenarios

• Ryzen 9000 or 7000 performance desktops
• Workstations with high memory capacity needs
• Long-term upgrade builds using AM5
• Professional or managed systems

ASUS Control Center Express supports remote monitoring and management. This suits business environments and system integrators.

ASUS PRIME X870-P WIFI-CSM Reliability, BIOS, and Warranty

Reliability remains a core focus of the PRIME series.

Protection and Build Standards

• ASUS 5X Protection III
• Stainless-steel I/O shield
• Overvoltage protection
• Reinforced PCIe slots

BIOS and Recovery Tools

• 256 Mb UEFI AMI BIOS
• BIOS FlashBack
• CrashFree BIOS 3
• EZ Flash and EZ Mode

These tools reduce downtime during updates or recovery.

This provides long-term confidence for professional and personal development.

Why Buy ASUS PRIME X870-P WIFI-CSM AM5 ATX Motherboard in Bangladesh

This motherboard supports current and upcoming Ryzen platforms. It balances performance, connectivity, and manageability. Wi-Fi 7 and USB4 extend platform relevance.

Local availability matters for warranty and support. Choosing a reliable supplier ensures proper after-sales service.

Buy ASUS PRIME X870-P WIFI-CSM AM5 ATX Motherboard by ASUS

Upgrade your AM5 build with stable power delivery, modern connectivity, and strong expansion support, especially if you’re selecting core PC Components for a Ryzen-focused system. The ASUS PRIME X870-P WIFI-CSM AM5 ATX Motherboard suits performance desktops and professional workstations, with the expansion and I/O you need for long-term upgrades across the wider ASUS ecosystem. Get yours now from PCB Store while stock is available.
