Technical Specifications
Model

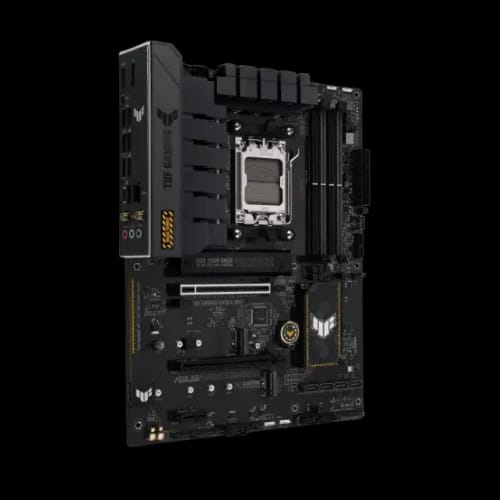

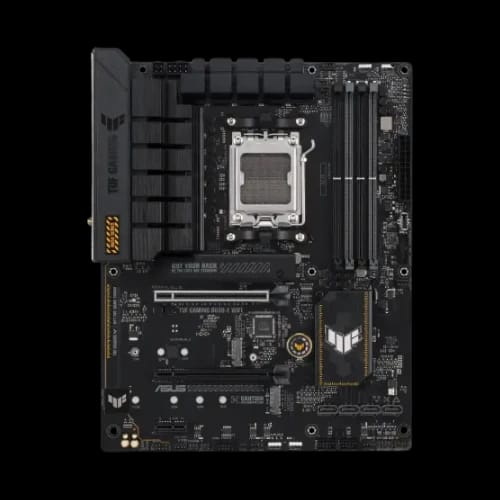

| Model Name | TUF GAMING B650-E WIFI |
| Form Factor | ATX (12" × 9.6" / 30.5 × 24.4 cm) |
| Operating System | Windows 11, Windows® 10 (64-bit) |
CPU
| Socket | AMD AM5 |
| Supported CPUs | AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors |
| Notes | See ASUS CPU support list (as per product page). |
Memory
| Slots / Max | 4 × DIMM, up to 192GB DDR5 |
| Supported Speeds | 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 |
| Type | DDR5, ECC & Non-ECC, Un-buffered |
| Channel | Dual-channel |
Networking
| Ethernet | 1 × Realtek 2.5GbE |
| Protection | TUF LANGuard |
Wireless & Bluetooth
| Wi-Fi | Wi-Fi 6E (2×2, 802.11 a/b/g/n/ac/ax), bands: 2.4/5/6GHz* |
| Bluetooth | v5.3 |
USB Connectivity
| Rear (8 total) | 2 × USB 10Gbps (1 × Type-A + 1 × Type-C), 3 × USB 5Gbps (Type-A), 3 × USB 2.0 (Type-A) |
| Front (7 total) | 1 × USB 20Gbps connector (Type-C), 1 × USB 5Gbps header (2 ports), 2 × USB 2.0 headers (4 ports) |
Internal I/O Headers
| Cooling | 1 × CPU Fan (4-pin), 1 × CPU OPT (4-pin), 1 × AIO Pump (4-pin), 4 × Chassis Fan (4-pin) |
| Power | 1 × 24-pin ATX, 1 × 8-pin +12V, 1 × 4-pin +12V |
| Storage | 3 × M.2 (Key M), 4 × SATA 6Gb/s |
| USB | 1 × USB 20Gbps (Type-C), 1 × USB 5Gbps header (2 ports), 2 × USB 2.0 headers (4 ports) |
| Misc | 3 × ARGB Gen2, 1 × Aura RGB, 1 × Clear CMOS header, 1 × COM port header, 1 × AAFP (front audio), 20-3 pin system panel (chassis intrude) |
Warranty Information
| Warranty | 3 Years |
