Which processors are compatible with this motherboard?

Supports AMD Ryzen 5000/4000/3000 series and G-series processors.

How much memory can it support?

Up to 128GB DDR4 across 4 DIMM slots.

Does it support PCIe 4.0?

Yes, PCIe 4.0 is supported on the x16 slot with Ryzen 5000/3000 CPUs.

What storage options are available?

2 M.2 slots (PCIe 4.0/3.0), 4 SATA 6Gb/s connectors, RAID 0/1/10 supported.

Can it handle high-resolution displays?

Yes, DisplayPort 1.4 up to 5120x2880@60Hz and HDMI 2.1 up to 4096x2160@60Hz.

What audio features does it have?

Realtek High-Definition Audio with 2/4/5.1/7.1-channel support.

Newsletter Contact Us Forum

HOME

SOLD OUT

gigabyte b550m k am4 micro atx motherboard 1

gigabyte b550m k am4 micro atx motherboard 2

/ PC Components / Motherboard / Gigabyte (AMD) / GIGABYTE B550M K AM4 Micro-ATX Motherboard

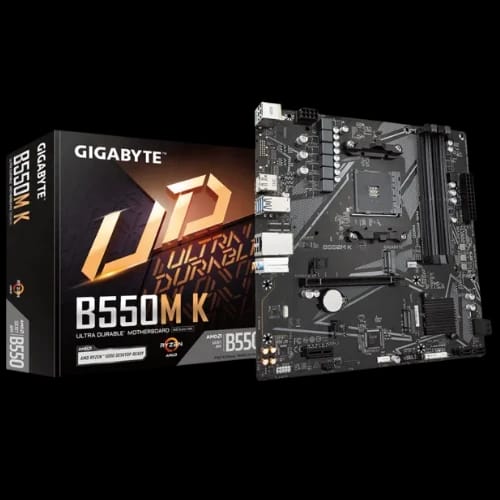

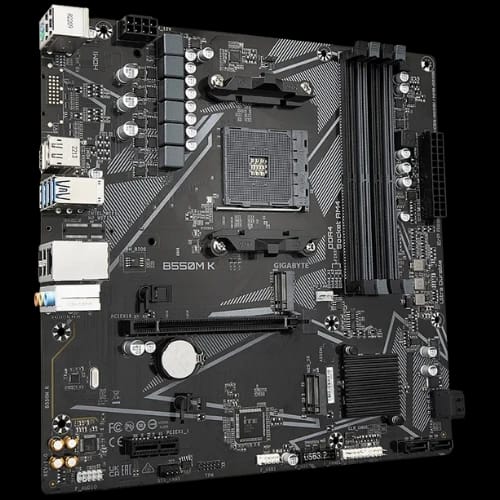

GIGABYTE B550M K AM4 Micro-ATX Motherboard

৳11800.00

Key Features

Model: B550M K
Supported CPU: Ryzen 5000/ 5000 G/ 4000 G and 3000 Series Processors
Supported RAM: 4x DDR4, Max 128GB 4733(OC)
Graphics Output: 1x HDMI, 1x DisplayPort
Features: GbE LAN with Bandwidth Management

Out Of Stock

General

CPU SupportAMD Ryzen 5000/5000 G/4000 G/3000 SeriesChipsetAMD B550BIOS1 x 128 Mbit flash, AMI UEFI, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Form FactorMicro ATX, 24.4cm x 24.4cmAudioRealtek Audio CODEC, High Definition, 2/4/5.1/7.1-channel

Expansion Slots

PCIe x161 slot, PCIe 4.0/3.0 dependent on CPUPCIe x11 slot, PCIe 3.0

Memory

Memory TypeDDR4DIMM Slots4Supported SpeedsDDR4 2133–4733 MHz (O.C.)Maximum Memory128 GB

Storage & RAID

M.2 Slots2 x M.2 Socket 3, 2280, PCIe 4.0/3.0 & SATA supportSATA Ports4 x SATA 6Gb/sRAIDRAID 0, 1, 10

Internal I/O & Headers

Power Connectors1 x 24-pin ATX, 1 x 8-pin 12VFan Headers1 x CPU, 1 x SystemUSB Headers1 x USB 3.2 Gen 1, 1 x USB 2.0/1.1

Special Features & Software

Special FeaturesAPP Center, BIOS, EasyTune, Smart Backup, System Info Viewer, Q-Flash, Xpress InstallBundled SoftwareNorton Internet Security OEM, LAN bandwidth management software
