Nvidia Quad Blackwell RTX PRO 6000 2U Rack Server

Product Description

NVIDIA Quad Blackwell RTX PRO 6000 2U Rack Server in Bangladesh

Is your HPC workload crippled by outdated GPU infrastructure?

The Nvidia Quad Blackwell RTX PRO 6000 2U Rack Server kills that bottleneck dead.

This is the IoT SuperServer a 2U rackmount server engineered around a single Intel Xeon 6700-series socket and up to four NVIDIA RTX PRO™ 6000 Blackwell Server Edition GPUs. Scientific research teams, financial services firms, and edge AI deployments across Bangladesh are choosing this platform because nothing else in this chassis class comes close.

RTX PRO 6000 Blackwell Server: Specifications and Performance Overview

The Model runs the Intel® Xeon® 6700 series with up to 80 cores and 160 threads on a single LGA-4710 socket. CPU TDP support reaches 350W, handled entirely by air cooling. That is serious sustained compute headroom.

System Memory is equally no-compromise:

• 16 DIMM slots across 8 channels
• Up to 2TB DDR5-5200 ECC RDIMM in 2DPC configuration
• Up to 1TB DDR5-6400 ECC RDIMM in 1DPC
• Up to 512GB DDR5-8000 ECC MRDIMM for maximum bandwidth

ECC RAM at this density removes memory-error risk from long-running training runs and financial modeling pipelines. For buyers comparing ECC RAM and Intel Xeon server configurations in Bangladesh, the DDR5-8000 MRDIMM ceiling is a standout spec.

Key Features of the Nvidia Quad Blackwell RTX PRO 6000 2U Rack Server

Quad GPU Acceleration via PCIe 5.0

The motherboard Super X14SBGM delivers four PCIe 5.0 x16 FHFL double-width slots plus three additional PCIe 5.0 x16 FHFL slots. CPU-to-GPU interconnect runs at full PCIe 5.0 x16 bandwidth for all four cards.

Supported accelerators include:

• NVIDIA RTX PRO™ 6000 Blackwell Server Edition
• NVIDIA H200 NVL (141GB)

Optional NVIDIA® NVLink™ Bridge connectivity links GPUs directly, bypassing PCIe for GPU-to-GPU data transfer. In multi-GPU scientific research and model analysis workloads, NVLink makes a measurable throughput difference.

Hot-Swap NVMe Storage

Four front-facing hot-swap E1.S NVMe drive bays allow live drive replacement without powering down. Two additional M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110) are onboard. Storage-hungry HPC labs and NAS & Server setups in Bangladesh benefit directly from this flexible bay configuration.

Titanium-Level Redundant Power

Three 2000W Titanium-rated (96% efficiency) redundant power supplies keep the system alive even if one PSU fails. Each unit measures 73.5 x 40 x 185mm. For server rack deployments requiring high uptime, common in financial services and research labs, Titanium PSU efficiency reduces both heat output and electricity costs significantly.

Power, Thermal, and Chassis Highlights

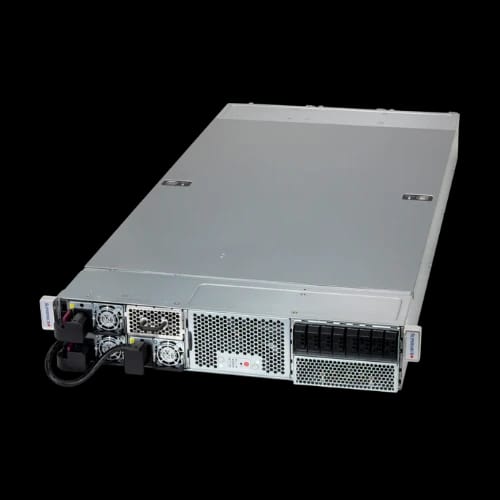

The 2U rackmount chassis model CSE-GP201TS-R000NP measures 35.43" (900mm) deep longer than standard 2U servers, built to accommodate full-length, double-width GPU cards without thermal compromise.

Cooling runs through up to six 6cm heavy-duty fans with PWM speed control, tachometer monitoring, and a dedicated air shroud. Operating temperature range: 10°C to 35°C. This server is designed for standard data center environments.

PC Health Monitoring covers CPU cores, chipset voltages, memory rails, fan RPM, and chassis temperature in real time. The front panel includes dedicated LEDs for power status, overheat, network activity, and drive activity, critical for server rack monitoring in Bangladesh data centers where rapid fault detection matters.

Security Architecture Built for Enterprise Use

The RTX PRO 6000 Blackwell 2U Rack Server does not treat security as optional. The platform includes:

• TPM 2.0 hardware security
• Silicon Root of Trust (RoT) NIST 800-193 compliant
• Cryptographically signed firmware
• Secure Boot and Secure Firmware Updates
• Automatic Firmware Recovery
• Runtime BMC protections and System Lockdown
• Remote Attestation for supply chain security

For regulated industries like financial services and government-linked research labs, this security stack directly addresses compliance requirements without third-party add-ons.

Use Cases: Who Actually Needs This Server?

The server is purpose-built for compute-heavy verticals where GPU density, memory bandwidth, and platform reliability are non-negotiable requirements.

• Scientific Research and HPC workloads are the primary target. Molecular dynamics, physics simulations, and genomics pipelines demand sustained parallel throughput. Four RTX PRO 6000 Blackwell GPUs operating simultaneously across PCIe 5.0 x16 lanes deliver exactly that kind of parallelism at rack scale.
• Model analysis and AI inference benefit directly from the combination of Blackwell-generation GPU architecture and up to 2TB of ECC DDR5 system memory. Large language models and deep learning pipelines need both GPU VRAM headroom and high-bandwidth host memory. This platform addresses both constraints in a single 2U chassis.
• Edge AI deployments and HPC gain from the compact 2U rackmount form factor. Where traditional AI training servers consume 4U or more, this system pushes quad-GPU compute into half the vertical space. That matters in edge data centers and co-location facilities where rack space carries a real cost per unit.
• Financial services environments require two things above all else: data integrity and uptime. The triple redundant Titanium-level power supplies eliminate single-point PSU failure. ECC DDR5 memory catches and corrects in-memory bit errors before they corrupt financial models or risk calculations. Both are standard on this platform, not optional add-ons.
• Research lab environments running mixed workloads also benefit from the flexible PCIe 5.0 expansion layout. Labs that need a combination of GPU acceleration, high-speed NVMe storage, and add-on compute cards can populate the seven available PCIe 5.0 slots across different card types without bottlenecking any single subsystem.

Whether this server sits alongside a dedicated NAS storage server, integrates into a broader Intel Xeon server cluster, or anchors a standalone AI compute rack, the server handles the role cleanly. PCB Store in Bangladesh supplies the full rack ecosystem around it from server rack and PDU and cable management to SAS hard disk drives, SAS SSD drives, and ECC RAM so your infrastructure scales as one coordinated system.

PCIe Expansion and Add-On Cards

Beyond GPU slots, the board exposes two M.2 PCIe 5.0 x2 NVMe slots and supports AOC options for extended network connectivity. Teams building out a server rack in Bangladesh with PDU, cable management, and PCIe LSI/RAID card requirements will find the expansion layout practical and deep. A dedicated 1 RJ45 1GbE BMC LAN port keeps out-of-band management separate from production traffic.

Reliability and Warranty

It builds the server on a proven enterprise server platform. The Super X14SBGM motherboard uses a System-on-Chip architecture, AMI 64MB SPI Flash BIOS, and ACPI power management. End-of-life product return program supports responsible hardware lifecycle management.

The server ships at 84 lbs gross weight (66 lbs net) and is packaged for safe freight transport. For server hardware delivery and installation in Bangladesh, PCB Store handles logistics end-to-end.

Get the Nvidia Quad Blackwell RTX PRO 6000 2U Rack Server at PCB Store Bangladesh

PCB Store is Bangladesh's trusted source for enterprise server hardware: Intel Xeon servers, AMD EPYC/Ryzen servers, ECC RAM, SAS hard disk drives, SAS SSD drives, server power supplies, server coolers, server racks, PDU and cable management, and PCIe LSI/RAID cards.

The Nvidia Quad Blackwell RTX PRO 6000 2U Rack Server is available now. Demand for Blackwell-generation GPU server hardware is accelerating fast — limited stock means pricing and availability shift quickly.

Contact PCB Store today to confirm the current server barebone price in Bangladesh, GPU configuration options, and lead times. Whether you are building an HPC cluster, a financial analytics rack, or an edge AI deployment, PCB Store configures this system correctly the first time.
