Is MSI B450M-A PRO MAX II good for gaming?

Absolutely. Supports Ryzen CPUs, fast DDR4, and stable 2.5G LAN for smooth gaming.

Is it suitable for video editing or productivity?

Yes. Dual-channel RAM, stable power delivery, and Ryzen CPU support make it ideal for multitasking.

Yes. The M.2 slot supports PCIe NVMe SSDs for fast boot and load times.

What PSU is recommended?

A 450–550W quality power supply works for most builds.

Can I use SATA HDDs/SSDs?

Yes. Four SATA 6Gb/s ports support HDDs and SSDs.

Does it support RGB lighting?

No RGB headers. Built for performance over aesthetics.

Can I add Wi-Fi later?

Yes. USB Wi-Fi adapters or PCIe Wi-Fi cards are compatible.

Is it good for small gaming builds?

Yes. Its Micro-ATX form factor fits compact gaming setups perfectly.

Newsletter Contact Us Forum

HOME

msi b450m a pro max ii am4 atx motherboard-1

/ PC Components / Motherboard / MSI (AMD) / MSI B450M-A PRO MAX II AM4 ATX Motherboard

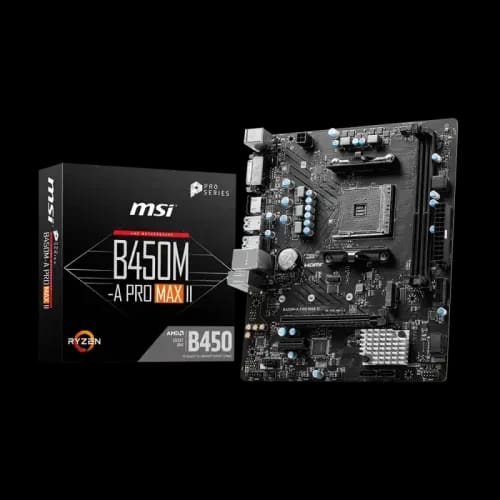

MSI B450M-A PRO MAX II AM4 ATX Motherboard

৳9100.00

৳8500.00

Key Features

Model: B450M-A PRO MAX II
Supported CPU: Ryzen 5000, 5000 G, 4000 G, 3000, 3000 G-Series Processors
Supported RAM: 2x DDR4, up to 4133 (OC) MHz
Graphics Output: 1 x HDMI, 1x DVI
Features: 1 x M.2 Slot, Realtek 8125 2.5Gbps LAN

Basic Information

ChipsetAMD B450CPU SupportSupports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series, 1000 Series Desktop Processors, and Athlon™ with Radeon™ Vega Graphics desktop processorsSocketAM4Form FactormATXPCB Size200mm x 236mm

Memory

Memory Slots2x DDR4 DIMM SlotsMaximum CapacityUp to 64GBMemory TypeDDR4 2667 / 2800 / 2933 / 3000 / 3066 / 3200 / 3466 / 3600 / 3733 / 3866 / 4000 / 4133 MHz (by A-XMP OC MODE)Channel SupportDual-Channel ModeECC SupportSupports non-ECC, UDIMM memory and ECC UDIMM memory (non-ECC mode)Memory ArchitectureUn-buffered Memory

Onboard Graphics

HDMI™1x HDMI™ 2.0b with HDR, Max Resolution: 4K @ 60Hz*DVI-D1x DVI-D, Max Resolution: 1920x1200 @ 60HzNoteAvailable only on processors featuring integrated graphics. Graphics specs may vary by CPU.

Expansion Slots

PCI-E x161x PCI-E 3.0 x16 (from CPU)PCI-E x11x PCI-E 2.0 x1 (from Chipset)AudioRealtek® ALC897 Codec, 7.1-Channel High Definition Audio

Storage

M.2 Slot1x M.2_1 (from CPU) — Supports PCIe 3.0 x4 / SATA mode, 2280 / 2260 / 2242 devicesSATA Ports4x SATA 6Gb/sRAID SupportSupports RAID 0, RAID 1, RAID 10 for SATA storage devices

USB Connectivity

Rear Ports2x USB 2.0, 4x USB 5Gbps Type-AFront Ports4x USB 2.0, 2x USB 5Gbps Type-ALANRealtek® 8125 2.5Gbps LAN Controller

Internal I/O Connectors

Power Connectors1x 24-pin ATX Power, 1x 8-pin CPU PowerCooling Headers1x CPU Fan, 1x System FanFront Panel2x JFP HeadersFront Audio1x JAUDChassis Intrusion1x JCICOM Port1x JCOMTPM1x TPM Header (Supports TPM 2.0)Internal USB4x USB 2.0 Ports, 2x USB 5Gbps Type-A Ports

Back Panel Ports

Keyboard/MouseCombo PortVideo OutputDVI-D, HDMI™USB PortsUSB 3.2 Gen 1 5Gbps (Type-A), USB 2.0LAN Port2.5G LANAudio Connectors3x Audio JacksOperating System SupportWindows® 11 64-bit, Windows® 10 64-bitBox ContentsMotherboard, SATA Cables, I/O Shield, User Manual, Driver CD (varies by region)
