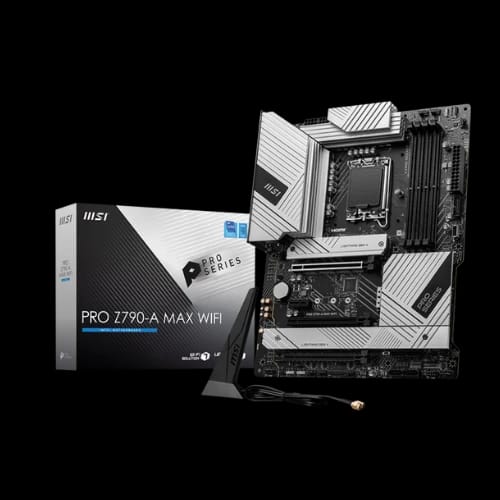

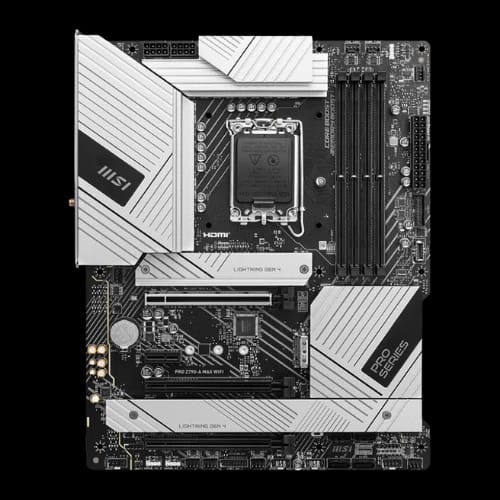

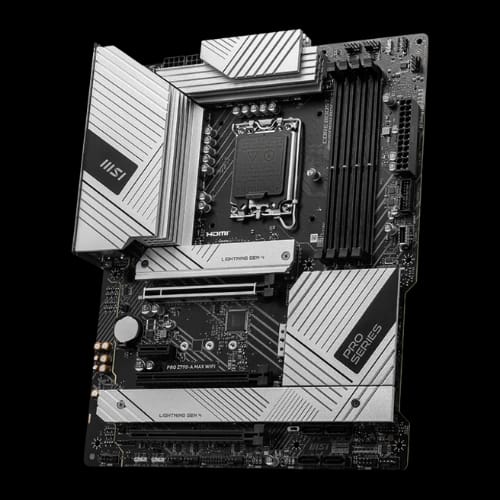

MSI PRO Z790-A MAX WIFI DDR5 ATX Motherboard

Processor

Supported CPU12th/13th/14th Gen Intel Core, Pentium Gold, CeleronSocketLGA 1700ChipsetIntel Z790

Memory

Memory Slots4× DDR5 UDIMMMax Capacity192GBSupported Speeds7800+(OC), 7600(OC), 7400(OC), 7200(OC), 7000(OC), 6800(OC), 6600(OC), 6400(OC), 6200(OC), 6000(OC), 5800(OC), 5600(JEDEC), 5400(JEDEC), 5200(JEDEC), 5000(JEDEC), 4800(JEDEC)1DPC 1RUp to 7800+ MHz1DPC 2RUp to 6600+ MHz2DPC 1RUp to 6400+ MHz2DPC 2RUp to 5600+ MHz

Storage

M.2 Slots4× M.2M.2_1PCIe 4.0×4, 22110/2280/2260/2242 (CPU)M.2_2PCIe 4.0×4, 2280/2260/2242 (Chipset)M.2_3PCIe 4.0×4 / SATA, 2280/2260/2242M.2_4PCIe 4.0×4 / SATA, 2280/2260/2242SATA Ports6× SATA 6Gb/s

Graphics

HDMIHDMI 2.1, 4K 60HzDisplayPortDP 1.4, 8K 60Hz

Networking

LANIntel 2.5Gbps LANWi-FiWi-Fi 7, 2.4GHz/5GHz/6GHz, 320MHz, up to 5.8GbpsBluetoothBluetooth 5.4

Audio

CodecDetailsRealtek ALC4080Channels7.1-channel USB audioOutputS/PDIF supported

Expansion Slots

PCI_E1PCIe 5.0×16 (CPU)PCI_E2PCIe 3.0×1PCI_E3PCIe 4.0×4PCI_E4PCIe 3.0×1

Internal I/O

ATX_PWR1× connectorCPU_PWR2× connectorsCPU Fan1× headerPump Fan1× headerSystem Fan6× headersFront Panel2× JFPChassis Intrusion1× JCIFront Audio1× JAUDTBT Connector1× JTBT (RTD3)Tuning Controller1× JDASHARGB V2 Headers3× JARGB_V2RGB Header1× JRGBTPM HeaderTPM 2.0USB 2.04× portsUSB 3.2 Gen1 Type-A2× portsUSB 3.2 Gen2 Type-C1× portUSB4 Card Connector1× JTBT_U4_1 (RTD3)

External I/O

DisplayPort1× DPHDMI1× HDMIUSB 2.02× portsUSB 3.2 Gen12× Type-AUSB 3.2 Gen23× Type-AUSB 3.2 Gen2x21× Type-CLAN1× 2.5G LANWi-Fi/BluetoothAntenna connectorsAudio Jacks1× setS/PDIF-OUT1× portFlash BIOS Button1× button

Physical

Form FactorATXDimensions243.84mm × 304.8mm
