Technical Specifications
Basic Information

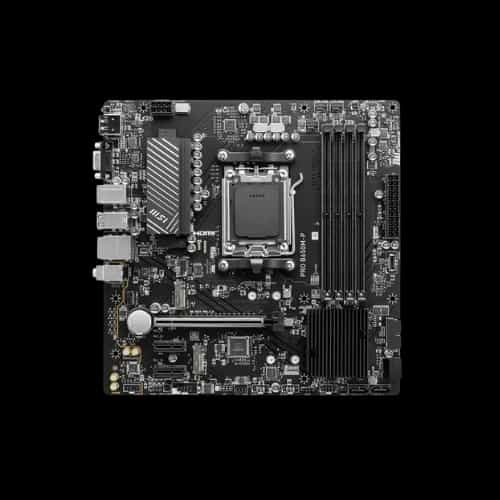

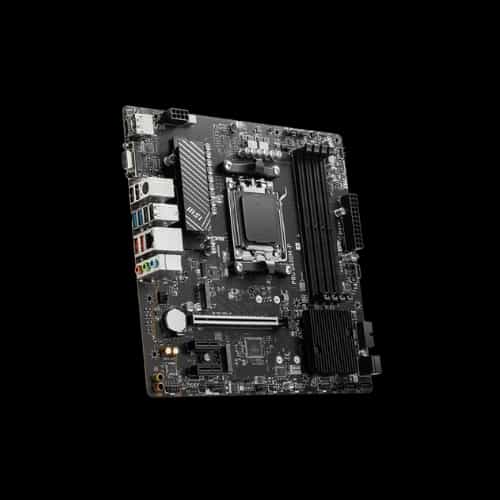

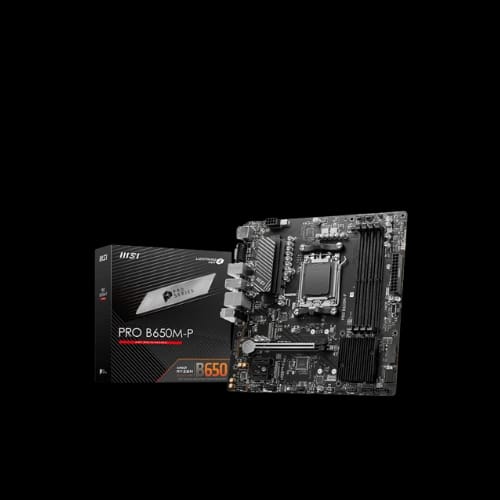

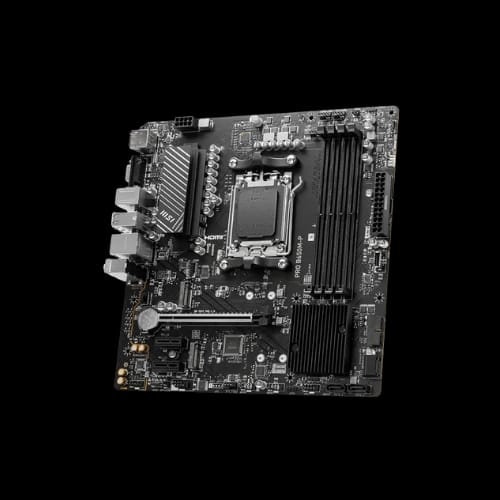

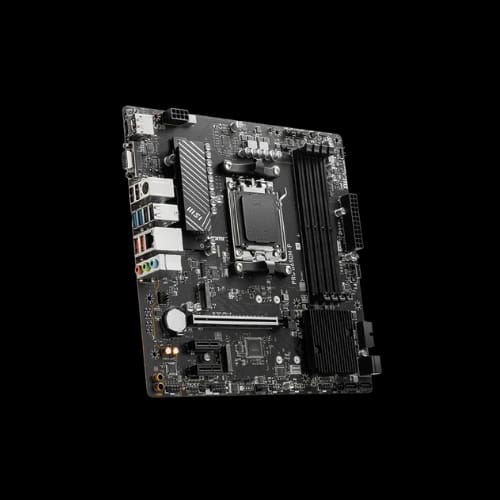

| Model | AMD B650 Micro-ATX Motherboard |
| Form Factor | mATX (243.84mm × 243.84mm) |
| Operating System Support | Windows® 11 64-bit, Windows® 10 64-bit |
Processor (CPU)
| Socket Type | AMD Socket AM5 |
| Supported CPUs | AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| Chipset | AMD B650 |
Memory
| Slots | 4 × DDR5 DIMM |
| Maximum Capacity | Up to 256 GB |
| Supported Speeds (MHz) | DDR5 7200+(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800 (JEDEC) |
| Max Overclocking Frequency | 1DPC 1R – 7200+ MHz • 1DPC 2R – 6000 MHz • 2DPC 1R – 6000 MHz • 2DPC 2R – 5400 MHz |
| Architecture | Dual Channel |
| Module Type | Non-ECC, Un-buffered DIMM |
Audio
| Codec | Realtek® ALC897 |
| Channels | 7.1-Channel High Definition Audio |
Storage
| M.2 Slots | 2 × M.2 |
| M.2_1 Source | CPU • PCIe 4.0 x4 • Supports 2280/2260 Devices |
| M.2_2 Source | Chipset • PCIe 4.0 x4 • Supports 2280/2260 Devices |
| SATA Ports | 4 × SATA 6 Gb/s |
| RAID Support | RAID 0 / 1 / 10 for SATA • RAID 0 / 1 for M.2 NVMe |
Networking
| LAN Controller | Realtek® 8125BG 2.5 Gb Ethernet LAN |
Internal I/O Connectors
| Power | 1 × ATX Power • 1 × CPU Power |
| Cooling | 1 × CPU Fan • 1 × Pump Fan • 3 × System Fans |
| Front Panel | 2 × JFP • 1 × Chassis Intrusion (JCI) • 1 × Front Audio (JAUD) |
Warranty
| Duration | 3 Years |
