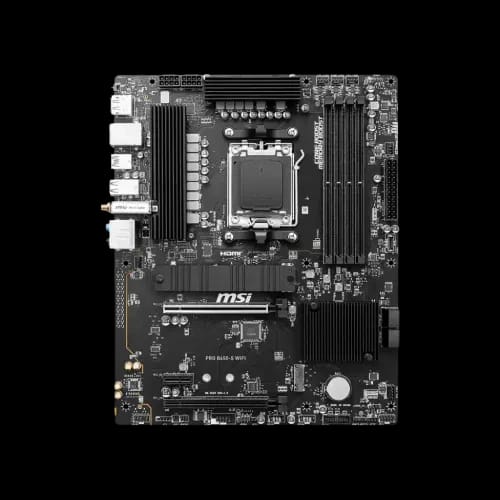

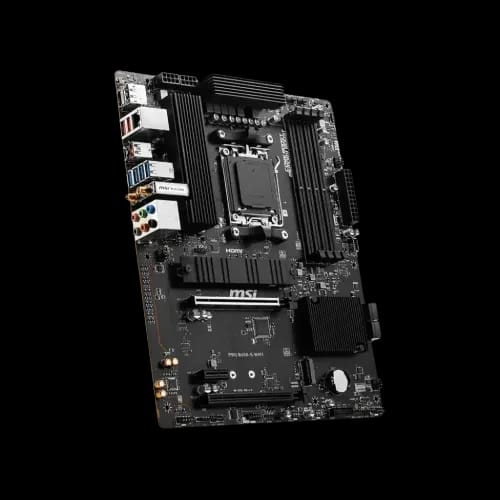

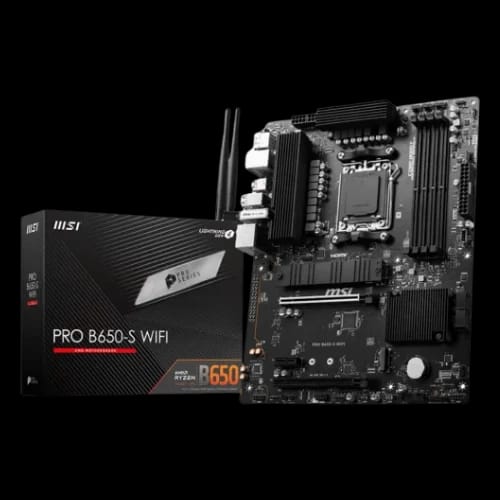

MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard

Basic Information

ModelMSI PRO B650-S WIFI DDR5 AM5 ATXSocketAM5ChipsetAMD B650Form FactorATX (243.84mm x 304.8mm)

CPU Support

Supported ProcessorsAMD Ryzen 9000/8000/7000 Series

Memory

TypeDDR5Slots4 DIMMsMax Capacity256GBSupported Speeds7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHzDual ChannelSupported

Graphics

HDMI1x HDMI 2.1 (4K 60Hz)DisplayPort1x DP 1.4 (4K 60Hz)

Storage

M.2 Slots2x PCIe 4.0M.2_1PCIe 4.0 x4, 22110/2280M.2_2PCIe 4.0 x4, 2280/2260SATA Ports4x SATA 6Gb/s

Connectivity

LANRealtek 8125BG 2.5GWirelessAMD Wi-Fi 6EBluetooth5.3

Internal I/O

Power Connectors1x ATX_PWR, 2x CPU_PWRFan Headers1x CPU, 1x Pump, 4x SystemFront Panel2x JFP

Back Panel Ports

Display OutputsHDMI, DisplayPortLAN2.5G LANUSBUSB 3.2 Gen2 Type-A, USB 3.2 Gen1 Type-A, USB 3.2 Gen2x2 Type-CWirelessWi-Fi / Bluetooth
