Technical Specifications
Basic Information
| Category | Details |
| Chipset | AMD B650 |
| CPU Support | Supports AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors |
| Socket | AM5 |
| Form Factor | ATX |
| PCB Size | 243.84mm × 304.8mm |
Memory
| Category | Details |
| Memory Slots | 4x DDR5 DIMM Slots |
| Maximum Capacity | Up to 256GB |
| Supported Memory Speeds | DDR5 7200+(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800(JEDEC) MHz |
| Max. Overclocking Frequency | 1DPC 1R: Up to 7200+ MHz 1DPC 2R: Up to 6000+ MHz 2DPC 1R: Up to 6000+ MHz 2DPC 2R: Up to 5400+ MHz |
| Memory Architecture | Dual-Channel Mode |
| Memory Type | Non-ECC, Un-buffered DDR5 |
| AMD EXPO Support | Yes |
Onboard Graphics
| Category | Details |
| HDMI™ | 1x HDMI™ 2.1 with HDR, Max Resolution: 4K @ 60Hz* |
| DisplayPort | 1x DP 1.4, Max Resolution: 4K @ 60Hz* |
| Note | Available only on CPUs with integrated graphics; specs may vary depending on processor. |
Expansion Slots
| Category | Details |
| PCI-E x16 Slots | 2x PCI-E x16 |
| PCI-E x1 Slot | 1x PCI-E x1 |
| Slot Configuration | Ryzen™ 9000/7000: x16/x4 Ryzen™ 8700/8600/8400: x8/x4 Ryzen™ 8500/8300: x4/x4 |
| PCI_E1 | PCIe 4.0 x16 (From CPU) |
| PCI_E2 | PCIe 3.0 x1 (From Chipset) |
| PCI_E3 | PCIe 4.0 x4 (From Chipset) |
| Audio | Realtek® ALC897 Codec, 7.1-Channel High Definition Audio |
Storage
| Category | Details |
| M.2_1 Slot | From CPU, PCIe 4.0 x4, supports 22110 / 2280 devices |
| M.2_2 Slot | From CPU, PCIe 4.0 x4, supports 2280 / 2260 devices (PCIe 4.0 x2 when Ryzen™ 8500/8300 installed) |
| SATA Ports | 4x SATA 6Gb/s |
| RAID Support | SATA: RAID 0, RAID 1, RAID 10 M.2 NVMe: RAID 0, RAID 1 |
| Multi-GPU Support | AMD Multi-GPU Technology |
USB Connectivity
| Category | Details |
| Front Ports | 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C |
| Rear Ports | 4x USB 5Gbps Type-A, 3x USB 10Gbps Type-A, 1x USB 20Gbps Type-C |
| LAN | Realtek® 8125BG 2.5Gbps LAN |
Wireless LAN & Bluetooth
| Category | Details |
| Wi-Fi | Wi-Fi 6E (Pre-installed M.2 Key-E module) |
| Bluetooth | Bluetooth 5.3 |
| Features | MU-MIMO TX/RX, Supports 20/40/80MHz bandwidth in 2.4GHz / 5GHz / 6GHz* bands |
| Note | Wi-Fi 6E 6GHz band availability depends on local regulations (Windows 11 only). Bluetooth 5.3 is supported on Windows 10 build 21H1 and Windows 11. |
Internal I/O Connectors
| Category | Details |
| Power Connectors | 1x 24-pin ATX Power, 2x 8-pin CPU Power |
| Cooling Headers | 1x CPU Fan, 1x Pump Fan, 4x System Fan |
| Front Panel | 2x JFP |
| Audio | 1x Front Audio (JAUD) |
| Chassis Intrusion | 1x JCI |
| COM Port | 1x JCOM |
| RGB / ARGB Headers | 2x RGB (JRGB), 2x Addressable V2 RGB (JARGB_V2) |
| Tuning Connector | 1x JDASH (Tuning Controller) |
| TPM | 1x TPM Header (Supports TPM 2.0) |
| Internal USB | 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C |
| LED Feature | 4x EZ Debug LED |

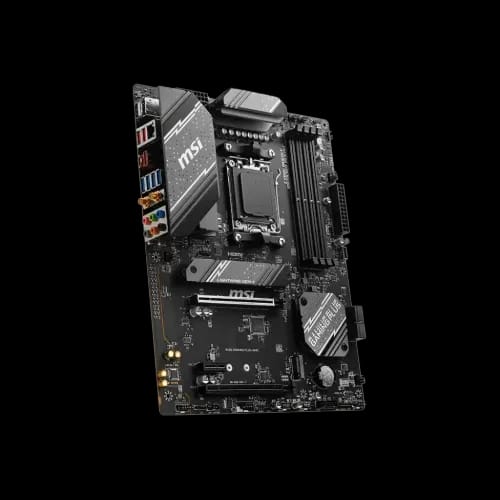

Back Panel Ports
| Video Output | DisplayPort, HDMI™ |
| USB Ports | USB 3.2 Gen 2 (10Gbps) Type-A ×2, USB 3.2 Gen 1 (5Gbps) Type-A, USB 3.2 Gen 2x2 (20Gbps) Type-C |
| LAN Port | 2.5G LAN |
| Wi-Fi / Bluetooth Antennas | Included |
| Audio Connectors | 3x Audio Jacks |
| Flash BIOS Button | Yes |
| Operating System Support | Windows® 11 64-bit, Windows® 10 64-bit |
| Box Contents | Motherboard, Wi-Fi Antenna, SATA Cables, I/O Shield, Driver DVD, Quick Installation Guide |
| Dimensions (L × W) | 243.84mm × 304.8mm |
Warranty Information
| Warranty | 03 Years |
