Is the GIGABYTE X870 GAMING WIFI6 compatible with Ryzen 9000 series?

Yes, it fully supports Ryzen 9000, 8000, and 7000 series processors.

Does this motherboard support DDR5 memory?

Yes, it supports DDR5 up to 8000MHz (OC) with AMD EXPO and XMP profiles.

Can I use PCIe 5.0 SSDs?

Yes, the M2A_CPU slot supports PCIe 5.0 x4 SSDs.

Does the board have Wi-Fi?

Yes, it includes built-in Realtek Wi-Fi 6 with Bluetooth 5.3.

How many M.2 slots does it have?

There are three M.2 slots—one PCIe 5.0 and two PCIe 4.0.

Will it support HDMI output from Ryzen APUs?

Yes, the HDMI 2.1 port works with Ryzen CPUs that have integrated graphics.

Does it support 7.1 audio?

Yes, through the Realtek HD audio system with software configuration.

Is the USB4 port real or bandwidth-limited?

It’s a true USB4 Type-C port with up to 40Gbps speed and DP1.4 support.

Can I build a high-end gaming PC with this board?

Absolutely. Its PCIe 5.0, DDR5, and triple M.2 design make it ideal for powerful gaming rigs.

Is the motherboard future-proof?

Yes, with AM5 support, PCIe 5.0, DDR5, and USB4, it’s built for long-term upgrades.

Newsletter Contact Us Forum

HOME

SOLD OUT

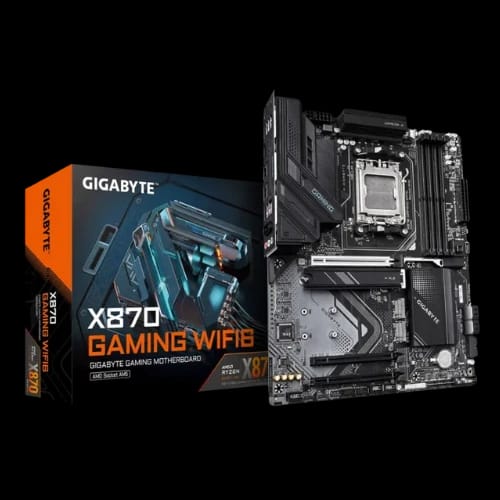

gigabyte x870 gaming wifi6 ddr5 amd am5 atx motherboard

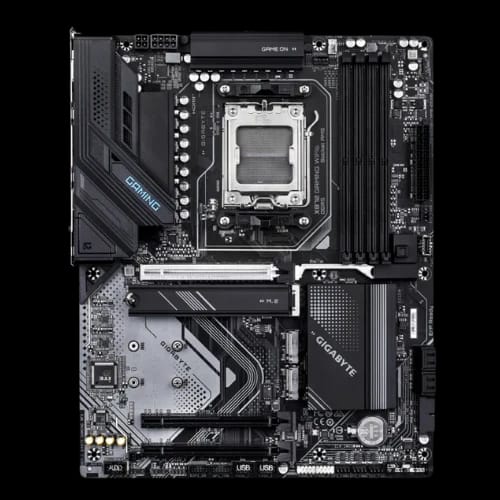

gigabyte x870 gaming wifi6 ddr5 amd am5 atx motherboard 2

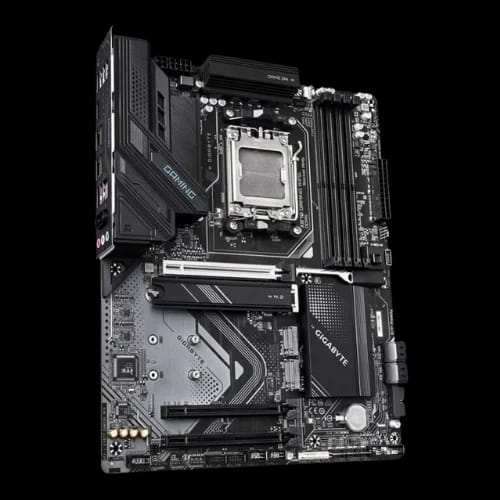

gigabyte x870 gaming wifi6 ddr5 amd am5 atx motherboard 3

/ PC Components / Motherboard / Gigabyte (AMD) / GIGABYTE X870 GAMING WIFI6 DDR5 AM5 ATX Motherboard

GIGABYTE X870 GAMING WIFI6 DDR5 AM5 ATX Motherboard

৳32800.00

Key Features

GIGABYTE X870 Gaming
PCIe 5.0 Slot
USB4 Type-C
DDR5 8000(OC)
Wi-Fi 6 Built-in
Triple M.2 Slots

Out Of Stock

Basic Information

Supported CPUAMD Socket AM5; Ryzen 9000/8000/7000 SeriesChipsetAMD X870BIOS256 Mbit flash; AMI UEFI BIOS; PnP 1.0a; DMI 2.7; WfM 2.0; SM BIOS 2.7; ACPI 5.0Form FactorATX; 30.5 cm × 24.4 cm

Memory

TypeDDR5Slots4 DIMMsArchitectureDual-channelSupported ModulesNon-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16Memory ProfilesAMD EXPO; XMPMaximum Memory256 GB (64 GB per DIMM)

Graphics

Integrated GPUAMD Radeon GraphicsUSB4 Display Output2 × USB4 Type-C; DP output; 3840×2160@240 Hz; DP 1.4; HDRHDMI Output1 × HDMI; 4096×2160@60 Hz; HDMI 2.1; HDCP 2.3; HDR

Expansion Slots

PCIEX16 (CPU)1 × PCIe x16; Ryzen 9000/7000: PCIe 5.0 x16; Ryzen 8000 Phoenix 1: PCIe 4.0 x8; Phoenix 2: PCIe 4.0 x4PCIEX1 (Chipset)2 × PCIe x16-form; PCIe 3.0 x1

Storage

M.2 Slot (M2A_CPU)PCIe 5.0/4.0 x4/x2; 25110/22110/2580/2280M.2 Slot (M2B_SB)PCIe 4.0 x4/x2; 25110/22110/2580/2280M.2 Slot (M2C_SB)PCIe 4.0 x2; 25110/22110/2580/2280SATA4 × SATA 6 Gb/sRAID (NVMe)RAID 0/1/5/10; RAID 5 on Ryzen 9000 onlyRAID (SATA)RAID 0/1/10

Connectivity & Ports

HDMI1 × HDMIUSB42 × USB4 Type-C (rear)USB 3.2 Gen 21 × Type-A (rear)USB 3.2 Gen 13 × rear; 2 × internalUSB 3.2 Gen 2x21 × internal Type-CUSB 2.04 × rear; 8 × internalLANRealtek 2.5 GbEWirelessRealtek Wi-Fi 6 RTL8851BE; 2.4/5 GHz; Bluetooth 5.3

Audio

CodecRealtek Audio CODECChannels2/4/5.1/7.1-channelSupportHD Audio

Internal I/O

Power Connectors24-pin ATX; 8-pin ATX 12V; 4-pin ATX 12VCooling Headers1 × CPU fan; 1 × CPU fan/pump; 4 × system fanRGB Headers3 × ARGB Gen2; 1 × RGBSATA4 × SATA 6 Gb/sM.23 × M.2 Socket 3Front Panel1 × front panel; 1 × audioUSB Headers1 × USB 3.2 Gen 2x2 Type-C; 1 × USB 3.2 Gen 1; 4 × USB 2.0TPM1 × TPM headerOtherReset jumper; Clear CMOS jumper

Back Panel

ButtonsQ-Flash PlusAntenna2 × SMA connectorsHDMI1 × HDMIUSB42 × USB4 Type-CUSB 3.2 Gen 21 × Type-AUSB 3.2 Gen 13 × USB-AUSB 2.04 × USB-ALAN1 × RJ-45Audio3 × audio jacks

Special Features

SoftwareGIGABYTE Control Center; Norton Internet Security (OEM); LAN managementUtilitiesQ-Flash; Q-Flash Plus; Smart Backup

Others

TPM SupportTPM 2.0 header (GC-TPM2.0 SPI modules)

Warranty Information

Duration03 Years
