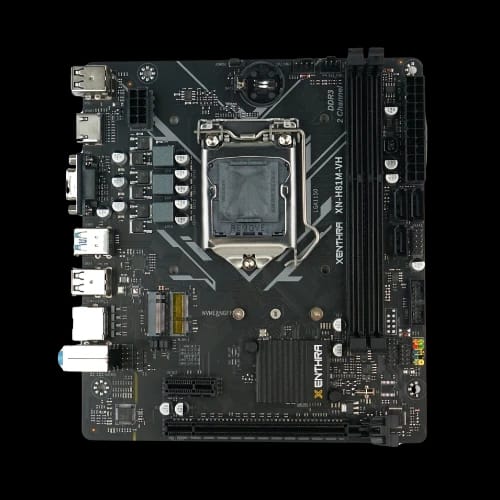

XENTHRA XN-H81M-VH Intel 4th Gen LGA 1150 Micro-ATX Motherboard

Product Description

XENTHRA XN-H81M-VH Intel 4th Gen LGA 1150 Micro-ATX Motherboard

Still using an aging Intel PC? The XENTHRA XN-H81M-VH Intel 4th Gen LGA 1150 Micro-ATX Motherboard gives your existing system a practical upgrade path without replacing every component. It supports popular Intel 4th Generation processors, DDR3 memory, and modern NVMe storage, making it a smart choice for budget-conscious PC builders in Bangladesh.

Whether you are replacing a failed motherboard, reviving an office desktop, or assembling an affordable workstation, this Micro-ATX motherboard delivers dependable compatibility with legacy Intel hardware. At PCB Store, it is available with reliable after-sales support and warranty service across Bangladesh.

Why Choose the XENTHRA XN-H81M-VH Intel 4th Gen LGA 1150 Micro-ATX Motherboard?

Many users still rely on Intel Haswell systems because they remain capable for office work, education, browsing, and light creative tasks. The XENTHRA XN-H81M-VH supports that platform while adding practical features such as an M.2 slot for faster storage and Gigabit LAN for reliable networking.

Its compact Micro-ATX design also fits many standard desktop cases, making installation straightforward during upgrades or repairs.

XENTHRA XN-H81M-VH Specifications and Performance Overview

Built around the Intel B85 Express Chipset, this motherboard supports a broad range of Intel LGA 1150 processors, including:

• Intel Core i7 4th Generation
• Intel Core i5 4th Generation
• Intel Core i3 4th Generation
• Intel Pentium
• Intel Celeron
• Intel Xeon E3-1200 v3 Series

Validated processors include the Intel G1820, Core i3-4330, Core i5-4590S, Core i7-4770, and Xeon E3-1230 v3, giving builders confidence when selecting compatible hardware.

The motherboard supports Windows 7, Windows 10, and Windows 11 in both 32-bit and 64-bit environments, providing flexibility for existing software requirements.

Memory and Storage Support for Everyday Computing

The XENTHRA XN-H81M-VH includes two DDR3 DIMM slots supporting:

• Dual-channel DDR3 architecture
• DDR3 1600 MHz
• DDR3 1333 MHz
• DDR3 1066 MHz
• Up to 16GB total system memory

This configuration suits office applications, online learning, accounting software, web browsing, and multitasking.

Storage flexibility is another strong point. Users can install:

• One M.2 SSD supporting NVMe PCIe 2.0 x4
• SATA NGFF M.2 drives through jumper protocol switching
• One SATA 6Gbps device
• Two SATA 3Gbps devices

This combination lets users keep existing SATA drives while adding a modern M.2 SSD for quicker boot times and application loading.

Expansion, Connectivity, and Display Options

The XENTHRA motherboard provides practical expansion without unnecessary extras.

Expansion includes:

• 1 × PCIe 2.0 x16 slot
• 1 × PCIe 2.0 x1 slot
• Dedicated M.2 Wi-Fi/WLAN slot

Display connectivity supports both modern and older monitors with:

• HDMI output
• VGA (D-Sub) output

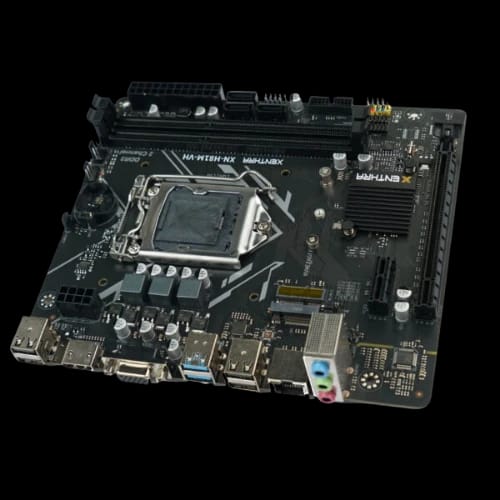

Rear I/O includes:

• 2 × USB 3.0 ports
• 4 × USB 2.0 ports
• Realtek Gigabit LAN
• Three 3.5mm HD audio jacks

For users upgrading older office PCs, this combination offers compatibility with existing displays while supporting newer HDMI monitors.

Power Design and Technical Highlights

The XENTHRA XN-H81M-VH uses a 4-layer PCB structure in a compact 190 mm × 170 mm Micro-ATX layout.

It features:

• 24-pin ATX main power connector
• 4-pin CPU power connector
• Realtek High Definition Audio Codec
• TPM 2.0 header
• CPU fan header
• System fan header
• Front USB expansion headers
• Diagnostic card interface
• CMOS reset header

Power consumption remains reasonable for Intel Haswell platforms.

• Standby Power: 20W–45W
• Full Load: 90W–120W (excluding dedicated graphics card)

This makes it suitable for users seeking an efficient replacement motherboard for daily computing.

Ideal Users and Compatibility

The XENTRA XN-H81M-VH Intel 4th Gen LGA 1150 Micro-ATX Motherboard is well suited for:

• School and college students
• Home users
• Office executives
• Small businesses
• Computer repair shops
• Internet café maintenance
• Software learners
• Freelancers
• Budget PC builders
• IT service providers

It is particularly useful for anyone already owning Intel LGA1150 processors and DDR3 memory who wants to extend the lifespan of an existing desktop without investing in a completely new platform.

Reliability, Warranty, and Support

Every motherboard purchase matters because it forms the foundation of the entire PC. The XENTHRA XN-H81M-VH comes with a 3 Years Replacement Warranty, offering additional confidence for long-term use.

PCB Store provides reliable after-sales service throughout Bangladesh. Our technical team assists with warranty claims, compatibility questions, and product support directly, making ownership easier after purchase.

Buy XENTHRA XN-H81M-VH Intel 4th Gen LGA 1150 Micro-ATX Motherboard in Bangladesh

If you need an affordable replacement motherboard for Intel 4th Generation processors, the XENTHRA XN-H81M-VH is a practical option. Its Intel B85 chipset, DDR3 support, M.2 storage capability, Gigabit LAN, and flexible connectivity make it suitable for both new budget builds and system repairs.

The motherboard is available at PCB Store Dhaka with dependable customer support, genuine warranty coverage, and nationwide after-sales service across Bangladesh. If you are searching for the latest price in Bangladesh, PCB Store is a trusted destination for authentic computer components and accessories.
