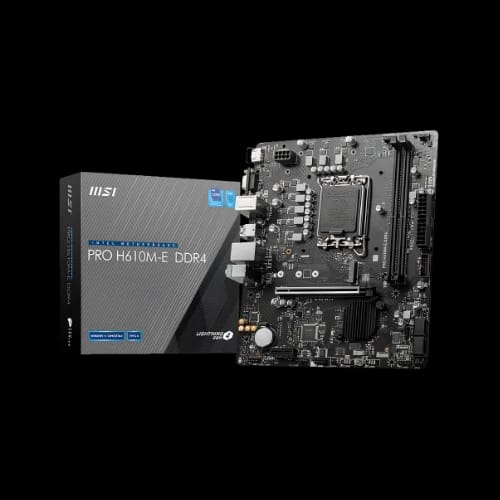

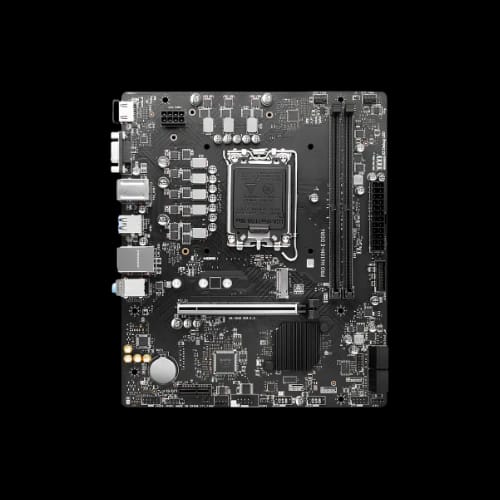

MSI PRO H610M-E DDR4 LGA1700 mATX Motherboard

Product Description

MSI PRO H610M-E DDR4 LG1700 mATX Motherboard

Building a new PC on a budget without sacrificing stability? The MSI PRO H610M-E DDR4 LG1700 mATX Motherboard delivers reliable performance for Intel's latest desktop processors while keeping your build practical and cost-effective. It targets users who need a dependable foundation for office systems, home PCs, entry-level gaming, and everyday productivity without paying for features they may never use.

Built around the Intel H610 chipset, this MSI motherboard supports Intel Core 14th, 13th, and 12th Gen processors, along with Intel Pentium Gold and Celeron CPUs. It combines DDR4 memory support, PCIe 4.0 graphics compatibility, M.2 NVMe storage, Gigabit LAN, and essential connectivity in a compact micro-ATX form factor. If you're searching for the MSI PRO H610M-E DDR4 LG1700 mATX Motherboard price in Bangladesh, this model remains one of the strongest value-focused options available at PCB Store.

MSI PRO H610M-E DDR4 LG1700 mATX Motherboard Specifications and Performance

The MSI PRO H610M-E DDR4 focuses on delivering stable daily performance rather than unnecessary extras. Its Intel H610 chipset supports the latest LGA1700 processor family, making it suitable for users upgrading from older Intel platforms.

Two DDR4 memory slots support up to 64GB of dual-channel memory, allowing smooth multitasking for office work, content creation, programming, and everyday computing.

Storage flexibility is another strength. Alongside four SATA 6Gb/s ports, the motherboard includes an M.2 slot supporting PCIe Gen3 x4 and SATA SSDs, giving builders multiple storage options for operating systems, applications, and large files.

Graphics support depends on processors with integrated graphics, offering:

• HDMI 1.4 with HDR support
• Up to 4K 30Hz output
• VGA output for legacy monitors
• Support for dual display connectivity

A PCIe 4.0 x16 slot provides compatibility with modern graphics cards, allowing future upgrades without replacing the motherboard.

MSI PRO H610M-E DDR4 LG1700 mATX Motherboard Key Features

Several practical features make this motherboard attractive for value-oriented PC builders.

Broad Intel LGA1700 Compatibility

The motherboard supports:

• Intel Core 14th Generation
• Intel Core 13th Generation
• Intel Core 12th Generation
• Intel Pentium Gold processors
• Intel Celeron processors

This broad compatibility provides flexibility for different budgets and performance requirements.

Dual DDR4 Memory Support

The board includes:

• 2 DDR4 DIMM slots
• Up to 64GB capacity
• Dual-channel architecture
• JEDEC-supported memory speeds up to 3200MHz

DDR4 memory also remains affordable, helping reduce overall system cost.

Fast Expansion Options

Expansion includes:

• PCIe 4.0 x16 slot for graphics cards
• PCIe 3.0 x1 slot for expansion cards

Whether adding a dedicated GPU, capture card, or networking solution, the motherboard provides essential upgrade paths.

Flexible Storage Connectivity

Storage options include:

• 1 PCIe Gen3 x4 M.2 slot
• SATA M.2 support
• Four SATA 6Gb/s ports
• Support for 2242, 2260, and 2280 SSDs

This combination suits users who want both fast NVMe storage and large-capacity SATA drives.

Connectivity and Everyday Usability

Connectivity matters just as much as processor support.

The rear I/O includes:

• HDMI
• VGA
• USB 3.2 Gen1 Type-A
• USB 2.0
• Gigabit LAN
• Audio ports
• PS/2 Keyboard/Mouse

Inside the chassis, builders gain access to:

• USB 3.2 Gen1 front header
• USB 2.0 headers
• TPM connector
• RGB LED connector
• Chassis intrusion connector
• Serial port header
• Clear CMOS jumper

MSI also includes EZ Debug LEDs, making troubleshooting much easier during first-time assembly.

Power Delivery and Cooling Support

Stable operation depends on clean power and effective cooling.

The MSI PRO H610M-E DDR4 includes:

• 24-pin ATX power connector
• 8-pin CPU power connector
• One CPU fan header
• Two system fan headers

This layout supports efficient airflow for compact micro-ATX systems while giving builders control over multiple cooling fans.

Audio and Network Performance

The motherboard uses the Realtek ALC897 codec, providing 7.1-channel High Definition Audio suitable for entertainment, online meetings, multimedia playback, and gaming.

Networking is handled by the Realtek RTL8111H Gigabit LAN controller, delivering stable wired internet connectivity for:

• Office environments
• Online gaming
• Video conferencing
• File transfers
• Streaming

Who Should Buy MSI PRO H610M-E DDR4 LG1700 mATX Motherboard?

This motherboard suits many everyday PC users.

It works well for:

• School and college students
• Office executives
• Home users
• Software developers
• Freelancers
• Small businesses
• IT firms
• Educational institutions
• Banking environments
• Entry-level content creators

Its compact micro-ATX size also fits many smaller PC cases while still offering modern connectivity and upgrade options.

Reliability, Warranty, and Support in Bangladesh

MSI has built the PRO series around long-term stability for business and personal computing. The PRO H610M-E DDR4 follows that philosophy by combining dependable hardware with practical expansion features that remain useful throughout multiple upgrade cycles.

The motherboard includes a 3-year warranty, giving buyers added confidence. When purchased from PCB Store, customers receive reliable after-sales support across Bangladesh. Warranty claims, technical assistance, and product support are handled directly through PCB Store, making ownership much more convenient.

Buy MSI PRO H610M-E DDR4 LG1700 mATX Motherboard from PCB Store Bangladesh

If you're building a dependable Intel desktop without overspending, the MSI PRO H610M-E DDR4 offers an excellent balance of compatibility, storage flexibility, DDR4 affordability, and practical connectivity. Support for Intel Core 14th, 13th, and 12th Gen processors gives it room to grow with future upgrades while maintaining excellent everyday reliability.

Whether you're assembling an office workstation, family PC, programming machine, or entry-level gaming system, this MSI motherboard remains a smart long-term investment. Visit PCB Store Dhaka or order online to check the latest MSI PRO H610M-E DDR4 LG1700 mATX Motherboard price in Bangladesh and enjoy trusted after-sales service anywhere in the country.
