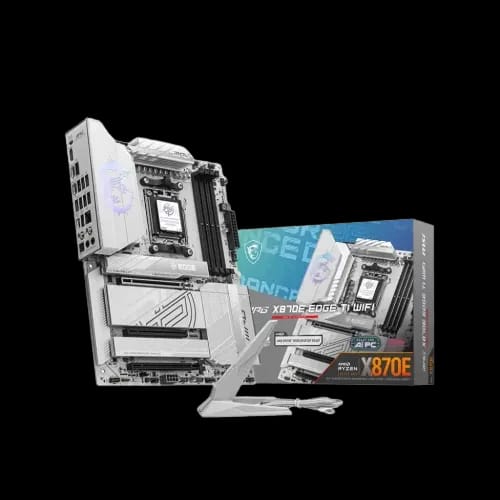

MSI MPG X870E EDGE TI WIFI AM5 ATX Motherboard

Processor Support

CPU SupportAMD Ryzen 9000/ 8000/ 7000 SeriesCPU SocketAMD Socket AM5

Chipset & Form Factor

ChipsetAMD X870EForm FactorATX (243.84mm x 304.8mm)

Memory Support

TypeDDR5 (Dual Channel)Max Capacity256GB (4 DIMM Slots)Max Speed8400+ MT/s (OC)

Expansion Slots

Primary Slot1x PCIe 5.0 x16 (CPU)Secondary Slots1x PCIe 3.0 x1 / 1x PCIe 4.0 x4

Storage Interface

M.2 Slots2x PCIe 5.0 x4 / 2x PCIe 4.0 x4SATA Ports4x SATA 6Gb/sRAIDRAID 0, 1, 10 (NVMe)

Connectivity & I/O

USB4 Ports2x Type-C (40Gbps)USB Rear5x 10Gbps Type-A / 1x 10Gbps Type-CEthernet1x Realtek 8126 5G LANWirelessWi-Fi 7 / Bluetooth 5.4

Audio & Graphics

Audio CodecRealtek ALC4080 (7.1-Channel)Video Output1x HDMI 2.1 (8K 60Hz)

Power & Cooling

Power Connectors1x 24-pin / 2x 8-pin CPU / 1x 8-pin PCIeFan Headers1x CPU / 1x Pump / 6x System Fan
