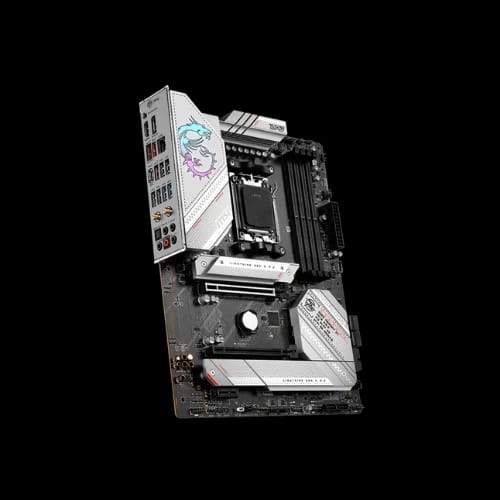

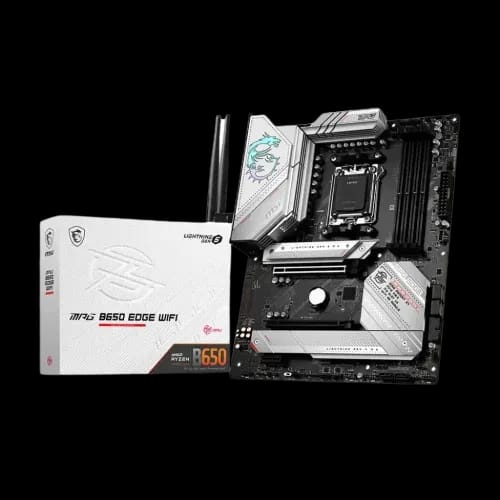

MSI MPG B650 EDGE WIFI DDR5 AM5 ATX Motherboard

Basic Information

Supported CPUAMD Ryzen 9000/8000/7000 SeriesSocketAM5ChipsetAMD B650Form FactorATX (243.84 × 304.8 mm)

Memory

TypeDDR5Slots4 DIMMsSupported Speeds6600–5000 MHz OC / 4800 MHz JEDECMax Capacity128 GBChannel SupportDual-ChannelECCNon-ECC, unbufferedAMD EXPOSupported

Expansion Slots

PCI-E x162 slotsPCI-E x11 slotPCI_E1PCIe 4.0 x16 (CPU)PCI_E2PCIe 4.0 x2 (Chipset)PCI_E3PCIe 3.0 x1 (Chipset)

Graphics Output

HDMI1× HDMI 2.1 (4K 60Hz)DisplayPort1× DP 1.4 HBR3 (8K 60Hz)

Audio

CodecRealtek ALC4080Channels7.1-Channel USB AudioPlaybackUp to 32-bit/384 kHz (front panel)

Connectivity

LANRealtek RTL8125BG 2.5GbpsWirelessAMD Wi-Fi 6EBluetoothBluetooth 5.2

USB Ports

Rear USBUSB: 2×2.0 / 4×Gen1-A / 3×Gen2-A / 1×Gen2x2-CFront USB4× USB 2.0, 2× USB 3.2 Gen1 Type-A, 1× USB 3.2 Gen2 Type-C

Special Features

Debug4× EZ Debug LEDLED Control1× EZ LED switch
