Technical Specifications
Summary

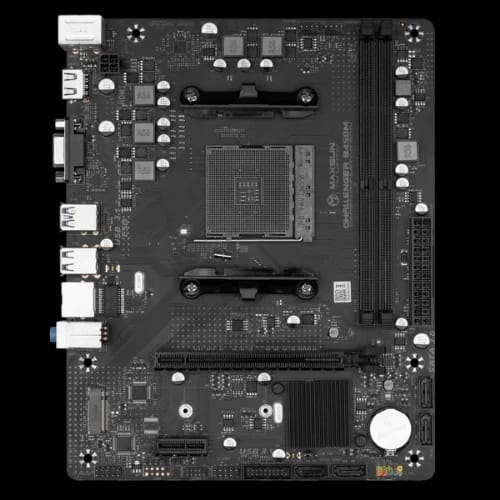

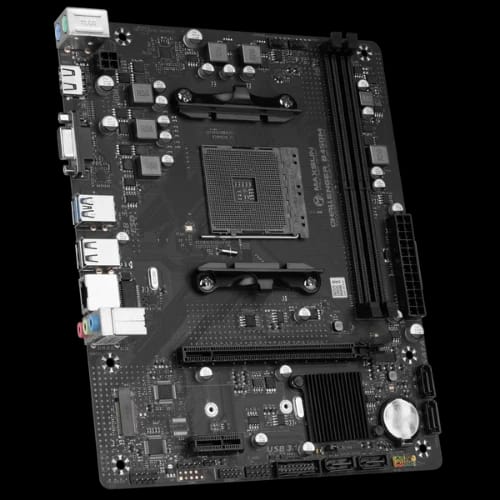

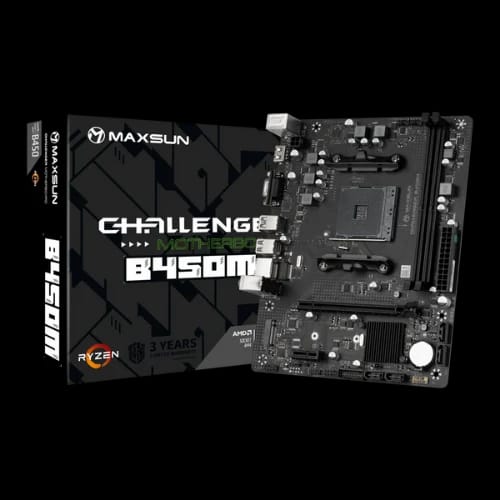

| Model | AMD B450 Micro-ATX Motherboard |
| Form Factor | Micro ATX (220mm × 175mm) |
| Operating System Support | Windows 11 64-bit, Windows 10 64-bit |
Processor (CPU)
| Socket Type | AMD Socket AM4 |
| Supported CPUs | AMD Ryzen™ 5000 G-Series / 5000 Series / 4000 G-Series / 3000 Series Processors |
Memory
| Slots | 2 × DDR4 DIMM |
| Capacity | Up to 64 GB |
| Speed Support (MHz) | 3200(OC), 2933(OC), 2666(OC), 2400(OC) |
| Architecture | Dual Channel (Dual-Controller) |
| Profiles Supported | AMD A-XMP OC |
Storage
| M.2 Slot | 1 × M.2 (Key M) – Type 2242 / 2280 – PCIe 4.0 x4 |
| SATA Ports | 4 × SATA 6 Gb/s |
| RAID Support | RAID 0 / 1 / 5 / 10 for SATA Storage Devices |
Networking
| LAN Chipset | Realtek® RTL8111H |
| Speed | 1 Gbps Ethernet |
Audio
| Chipset | Realtek® ALC897 Codec |
| Channels | 5.1-Channel High Definition Audio |
Graphics
| Display Outputs | 1 × VGA Port (Max: 2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz) <br> 1 × HDMI Port (Max: 4K@30Hz) |
| Note | Graphics specifications depend on CPU type. |
Internal I/O Ports
| Power Connectors | 1 × 24-pin ATX Power • 1 × 4-pin CPU Power |
| Cooling | 1 × CPU Fan • 1 × System Fan |
| Storage | 1 × M.2 Slot (Key M) • 4 × SATA 6Gb/s Ports |
| Front Panel | 1 × Audio • 1 × COM_A • 1 × Speaker Header • 1 × Debug Connector • 1 × Clear CMOS |
| Legacy | 1 × PS/2 Interface |
| USB (Front) | 2 × USB 3.2 Gen1 Type-A • 2 × USB 2.0 |
Rear Panel Connectors
| USB Ports | 2 × USB 3.2 Gen1 Type-A • 2 × USB 2.0 |
| Display Outputs | 1 × VGA • 1 × HDMI |
| LAN Port | 1 × RJ-45 (Realtek® 1GbE) |
| Audio Jacks | 3 × Audio Outputs (5.1-Channel) |
Technical Information
| LED Indicators | No Debug LED |
| Supported OS | Windows 11 64-bit, Windows 10 64-bit |
Warranty Information
| Warranty | 3 Years |
