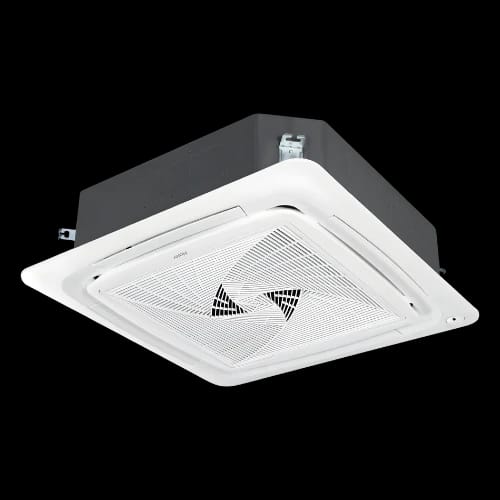

haier hsu 48 4 ton fixed speed cassette type lcac air conditioner main pic
haier hsu 48 4 ton fixed speed cassette type lcac air conditioner cooler box pic
/ Home Appliance / Air Conditioner / Haier / Haier HSU-48 4 Ton Fixed Speed Cassette Type LCAC Air Conditioner

Haier HSU-48 4 Ton Fixed Speed Cassette Type LCAC Air Conditioner

201990.00
190000.00

Key Features

  • Haier HSU-48 Cassette AC
  • 48000 BTU cooling power
  • Round-way air supply
  • R32 eco-friendly refrigerant
  • High lift-up pump
  • DC fan motor

Share:

Technical Specifications

Model Information

Product ModelHSU-48 (Fixed Speed)Indoor Unit CodeAB140S1SR1FAOutdoor Unit Code1U140S1LP1SBPanel CodePB-950QB

Performance Data

Cooling Capacity48000 BTU/hPower Input4550 WattsEnergy Efficiency (EER)3.1Running Current7.33 AmpsPower Supply3 Phase, 380-415V, 50Hz

Airflow & Sound

Max Air Flow2170 m3/hMoisture Removal2.0 L/hIndoor Sound Level54/51/48/44 dB(A)Outdoor Sound Level60 dB(A)

Physical Dimensions

Indoor Unit (W/D/H)840 x 840 x 288 mmOutdoor Unit (W/D/H)950 x 370 x 1350 mmPanel Size (W/D/H)950 x 950 x 50 mmIndoor Net Weight27 kgOutdoor Net Weight91 kg

Technical Hardware

Compressor TypeRotaryRefrigerant TypeR32Liquid Pipe Diameter9.52 mmGas Pipe Diameter15.88 mm

Standard Warranty

Compressor5 yearParts1 yearService1 Year Free
