Haier HSU-30 2.5 Ton Fixed Speed Cassette Type LCAC Air Conditioner (AC)

Product Description

Haier HSU-30 2.5 Ton Cassette AC — Can It Cool Your Entire Space Efficiently?

Large commercial rooms and open-plan interiors demand more than a standard wall-mounted unit. The Haier HSU-30 2.5 Ton Fixed Speed Cassette Type LCAC Air Conditioner is built specifically for that challenge. With 30,000 BTU/h cooling capacity and a 360-degree round-way air supply, this unit delivers uniform cooling across every corner of a room. Choosing the right Home Appliances for large spaces makes all the difference in long-term comfort and efficiency.

PCB Store in Bangladesh stocks this model for professionals, businesses, and premium home setups seeking Haier AC Best Deals on reliable ceiling cassette solutions from one of the world's top air conditioner brands. Buyers looking for the Best Pricing For AC in this capacity range will find this Haier cassette model a strong value proposition worth considering.

Haier HSU-30 Cassette AC Specifications: What the Numbers Actually Mean

The IDU carries model code AB90S1SR1FA, while the outdoor unit runs as 1U90S1LT1SA. The cassette panel model is PB-950QB. These aren't just part numbers — they confirm full system compatibility before installation.

The unit draws 2,460W of power during cooling, with a running current of 10.8A on a single-phase 220–240V/50Hz supply. For a 2.5-ton cassette AC, that power draw is well-managed. The EER rating of 3.66 places it in a competitive energy class, meaning the cooling output per watt of electricity consumed is genuinely efficient for a fixed-speed compressor design.

Refrigerant type is R32 — a lower global warming potential refrigerant that is increasingly standard in modern air conditioners. The liquid-side pipe diameter is 9.52mm and the gas side is 15.88mm, details critical for correct installation and system performance.

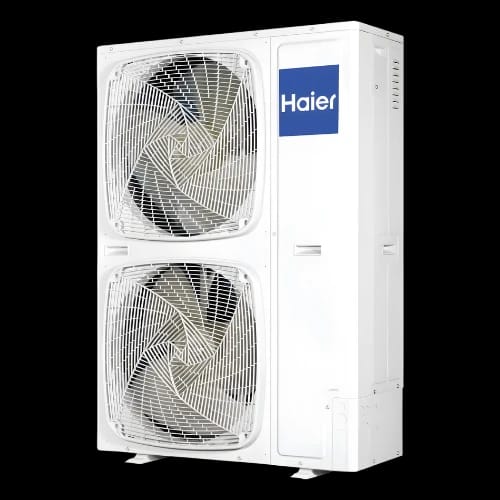

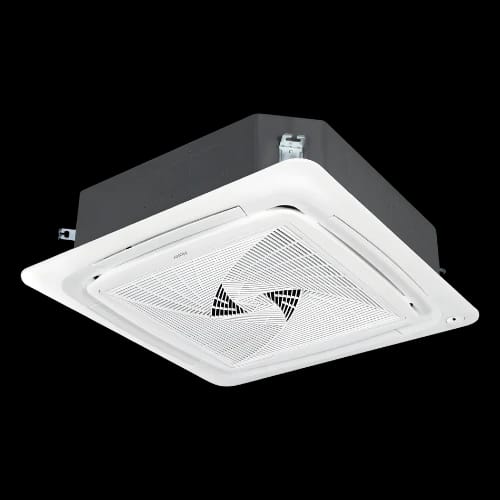

The indoor cassette unit dimensions are 840 x 840 x 246mm with a net weight of 24kg. The outdoor unit measures 920 x 372 x 765mm and weighs 63.5kg. The decorative panel (PB-950QB) fits 950 x 950mm with only 50mm depth — slim enough for clean ceiling integration.

Key Features of the Haier HSU-30 Cassette Air Conditioner That Set It Apart

The Haier HSU-30 uses a DC fan motor, which directly reduces energy consumption compared to AC fan motor designs. DC motors adjust more precisely, respond faster, and generate less heat internally. For a system running continuously in a commercial environment, this matters.

The large heat exchanger design is another technical advantage. A bigger heat exchanger surface area allows the refrigerant to absorb or release heat more efficiently. The result is faster cooling ramp-up time and more stable temperature maintenance even under load.

Round-way air supply is arguably the most defining feature of any cassette-type air conditioner. The Haier HSU-30 distributes conditioned air in all four directions simultaneously. No dead zones. No hot corners. The airflow modes — High, Medium, Low, and Sleep — register at 1800, 1640, 1400, and 1095 m³/h respectively, giving operators precise control over air circulation intensity.

Individual flap control lets users direct airflow independently per side, which is particularly useful in asymmetric room layouts where one section needs stronger airflow than another. Combined with automatic airflow control, the system intelligently responds to room conditions without requiring manual adjustments every time.

Performance, Comfort, and Smart Operational Features

The hidden LED display keeps the ceiling unit visually clean. There's no bright panel disrupting the aesthetic of a hotel lobby, conference room, or premium retail space. The display activates only when needed, then disappears back into the panel design.

High Ceiling Mode is a feature that directly addresses a real installation pain point. Cassette units fitted in spaces with high ceilings struggle to push cooled air down to occupant level. This mode adjusts fan speed and flap angle specifically to compensate for vertical distance, improving effective cooling in warehouses, atriums, and double-height spaces.

Sound performance is respectable for a commercial-grade unit. The indoor cassette runs at 52 dB(A) on high, 49 on medium, 46 on low, and 42 on sleep mode. The outdoor unit holds steady at 55 dB(A). Neither figure will disrupt a working office or a quiet retail environment.

The high lift-up drain pump is a practical installation advantage. It gives engineers more flexibility with drain pipe routing, particularly in buildings where gravity drainage is not easily achievable from ceiling level. This reduces installation complexity and long-term drain maintenance issues.

Where the Haier HSU-30 Cassette AC Fits Best

This unit is designed for mid-to-large enclosed spaces — typically between 350 and 500 square feet depending on ceiling height, insulation quality, and heat load. Office meeting rooms, restaurant dining areas, retail showrooms, hotel suites, and large residential lounges are all ideal applications.

As a home appliance category product in the air conditioner segment, it bridges the gap between residential comfort and light commercial demand. Buyers browsing PCB Store's air conditioner range in Bangladesh will find this Haier cassette model positioned as a premium fixed-speed option for spaces that require 2.5-ton capacity with full ceiling-flush aesthetics.

The super big inlet grille and convenient filter access mean routine maintenance doesn't require specialized tools or extended service calls. The filters slide out cleanly, making periodic cleaning straightforward for in-house maintenance teams.

Reliability and Haier's Standing in the Air Conditioner Market

Haier ranks consistently among the top global air conditioner manufacturers by volume and quality benchmark. The rotary compressor in the HSU-30 is known for durability, quieter operation compared to reciprocating types, and lower vibration — all factors that extend system lifespan in continuous-use environments.

The R32 refrigerant system also future-proofs the installation. R32 is increasingly the industry-standard refrigerant choice, meaning service availability, replacement parts, and qualified technicians will remain accessible in Bangladesh for years ahead.

Ready to Install the Right Cassette AC for Your Space?

The Haier HSU-30 2.5 Ton Fixed Speed Cassette Type LCAC Air Conditioner is stocked at PCB Store in Bangladesh. If you're upgrading a commercial space, fitting out a new build, or replacing an aging central unit with a more targeted cassette system, exploring Haier Brands Deals on this model covers the spec requirements without compromise.

Check availability and current pricing directly on PCB Store In BD website. Stock on commercial-grade cassette units moves quickly, particularly during peak installation seasons. Confirm your unit and panel compatibility before placing an order, and verify that your electrical supply meets the 220–240V/50Hz single-phase requirement.

For bulk orders or project-based procurement, PCB Store's team can assist with technical consultation and delivery coordination across Bangladesh.
