Technical Specifications
Model Identification
| Product Model | HSU-36 (Fixed Speed) |
| Indoor Unit Code | AB105S1SR1FA |
| Outdoor Unit Code | 1U105S1LN1SB |
| Panel Code | PB-950QB |
Performance Data
| Cooling Capacity | 36000 BTU/h |
| Energy Class EER | 3.18 |
| Air Flow Rate | 2080/1780/1580/1400 m3/h |
| Moisture Removal | 2L/H |
Electrical Specs
| Power Supply | 3 Phase, 380-415V, 50Hz |
| Power Input | 3300 Watts |
| Running Current | 5.32 Amps |
Core Components
| Compressor Type | Rotary |
| Refrigerant Type | R32 |
| Fan Motor Type | DC Motor |
Physical Dimensions

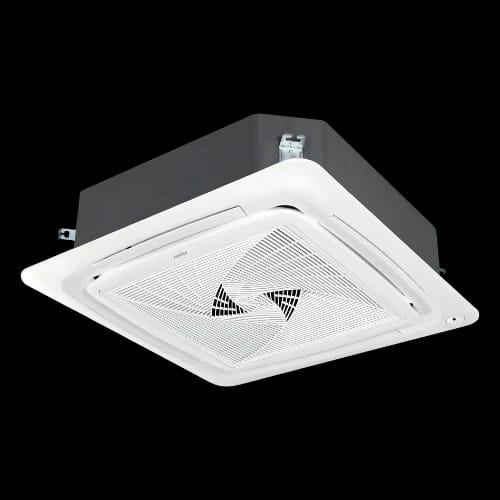

| Indoor Net (W/D/H) | 840 x 840 x 246 mm |

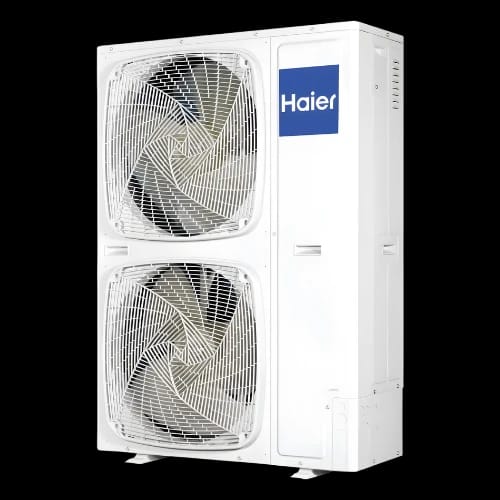

| Outdoor Net (W/D/H) | 950 x 370 x 965 mm |
| Panel Dimension | 950 x 950 x 50 mm |
Weight & Sound
| Indoor Net Weight | 25 kg |
| Outdoor Net Weight | 74 kg |
| Sound Power Level | 53/50/47/43 dB(A) |
Installation
| Liquid Side Pipe | 9.52 mm |
| Gas Side Pipe | 15.88 mm |
| Drain Pump | High Lift-up Built-in |
Warranty Info
| Compressor | 5 years |
| Parts | 1 Years |
| Service | 1 Year Free |
