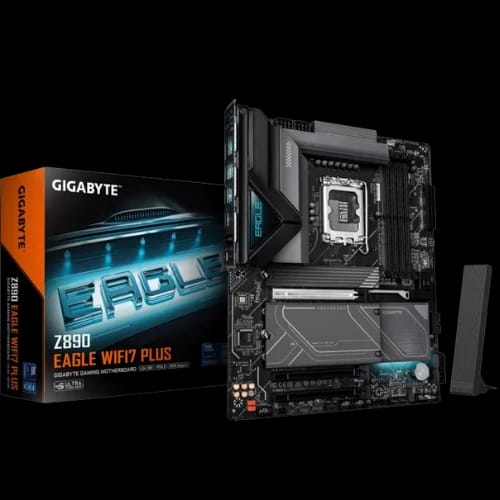

Gigabyte Z890 EAGLE WIFI7 PLUS Intel LGA 1851 ATX Motherboard

Product Description

Gigabyte Z890 EAGLE WIFI7 PLUS Intel LGA 1851 ATX Motherboard

Struggling with limited upgrade headroom? Gigabyte Z890 EAGLE WIFI7 PLUS Intel LGA 1851 ATX Motherboard brings LGA1851 support, DDR5, PCIe 5.0, Wi-Fi 7, and USB4 to Intel Core Ultra builds.

Built on the Intel Z890 Express chipset, this ATX motherboard suits gaming PCs, creator systems, and productivity workstations.

How Does the Gigabyte Z890 EAGLE WIFI7 PLUS Perform?

The motherboard supports Intel Core Ultra processors through the LGA1851 socket. Processor choice affects cache, memory support, and display features.

Four DDR5 DIMM slots provide dual-channel operation and up to 256 GB capacity. Supported memory speeds reach 9466+ MT/s through overclocking, while Intel XMP support helps compatible kits apply rated profiles.

It accepts non-ECC unbuffered DIMMs and CUDIMMs. Actual memory speed and module support depend on the processor and installed configuration.

The primary CPU-connected PCIe x16 slot supports PCIe 5.0 at x16. Two chipset-connected PCIe x16-length slots run at PCIe 4.0 x4 for compatible expansion cards.

Key Features and Benefits

• LGA1851 Core Ultra support
• Intel Z890 Express chipset
• DDR5 9466+ MT/s
• PCIe 5.0 x16
• Four M.2 connectors
• Wi-Fi 7 connectivity
• Realtek 2.5GbE LAN
• USB4 Type-C port

Rear-panel power, reset, Q-Flash Plus, and Clear CMOS buttons simplify troubleshooting. Q-Flash Plus also supports BIOS updates without an assembled system.

Fast Storage and Expansion Options

The board includes four M.2 connectors. One CPU-connected slot supports PCIe 5.0 x4/x2 SSDs, while another supports PCIe 4.0 x4/x2 drives.

Two chipset-connected M.2 slots provide PCIe 4.0 support. One also accepts SATA M.2 SSDs. Four SATA 6Gb/s connectors support extra SSDs and hard drives.

RAID 0, 1, 5, and 10 are supported for compatible NVMe and SATA storage devices. This layout suits users managing large files or several applications.

USB4 and DisplayPort 2.1 Support

The rear USB4 Type-C port supports data and DisplayPort video output. With a supported processor, it can deliver up to 3840 × 2160 at 144 Hz.

A separate DisplayPort connection supports the same maximum resolution. Both outputs support DisplayPort 2.1, though actual graphics support varies by CPU.

Rear and internal headers provide USB 3.2 Gen 2, USB 3.2 Gen 1, USB Type-C, and USB 2.0 connectivity.

Wi-Fi 7, Bluetooth 5.4, and 2.5GbE LAN

The Intel Wi-Fi 7 BE202 module supports 2.4 GHz, 5 GHz, and 6 GHz bands, the 802.11be 160 MHz standard, and Bluetooth 5.4.

Wi-Fi 7 features require Windows 11 SV3, and Windows 10 drivers are unavailable. Access to 6 GHz channels depends on local regulations and compatible networking equipment.

Realtek 2.5GbE LAN supports 2.5 Gbps, 1 Gbps, and 100 Mbps connections. It fits fast broadband, NAS transfers, game downloads, and office networks.

Audio, Cooling, and Monitoring

The Realtek ALC1220 codec supports high-definition 2, 4, 5.1, and 7.1-channel audio. The line-out jack supports DSD audio, while optical S/PDIF provides digital output.

Cooling connections include CPU fan, CPU pump, system fan, and system pump headers. Monitoring covers voltage, temperature, fan speed, water-flow rate, fan failure warnings, and supported fan control.

Gigabyte Control Center provides access to supported board functions.

Who Should Buy This Z890 Motherboard?

This board suits gamers building an Intel Core Ultra system with PCIe 5.0 graphics and fast DDR5 memory. Content creators gain large memory capacity, four M.2 slots, USB4, and 2.5GbE networking.

Software developers, freelancers, IT firms, and tech hobbyists can benefit from its expansion options. Its 30.5 × 24.4 cm ATX size requires an ATX-compatible case.

The power supply must provide one 24-pin ATX connector and two 8-pin ATX 12V connectors. Windows 11 64-bit is the supported operating system.

Warranty and PCB Store Support

Gigabyte provides a three-year manufacturing warranty. PCB Store handles warranty claims, technical issues, and product support directly, backed by reliable after-sales service across Bangladesh.

Buyers checking the Gigabyte Z890 EAGLE WIFI7 PLUS price in Bangladesh can contact PCB Store for current stock and pricing. Compatibility guidance is available for processors, memory, cases, coolers, storage, and power supplies.

Buy the Gigabyte Z890 EAGLE WIFI7 PLUS in Bangladesh

This motherboard offers LGA1851 support, high-speed DDR5, four M.2 slots, Wi-Fi 7, USB4, PCIe 5.0, and 2.5GbE LAN on one ATX platform.

Check availability at PCB Store Dhaka and confirm your full component list before ordering.
