Which CPUs fit this motherboard?

14th, 13th, 12th Gen Intel Core, Pentium Gold, Celeron. Check GIGABYTE’s site.

Can I overclock DDR5?

Yes, up to 7600(OC) MT/s for Core i9/i7 with XMP.

Does Gigabyte Z790 EAGLE AX have Wi-Fi?

Yes, Wi-Fi 6E and Bluetooth 5.3 for fast wireless.

How many M.2 slots are there?How many M.2 slots are there?

Three: one CPU-based (PCIe 4.0), two chipset-based (PCIe 4.0/SATA).

What RAID options are supported?

RAID 0, 1, 5, 10 for NVMe and SATA drives.

What’s the price in Bangladesh?

Get the best deal at PCB Store. Check our site for pricing.

Can Gigabyte Z790 EAGLE AX handle dual monitors?

Yes, via HDMI and DisplayPort for up to 4K displays.

What software is included?

Norton Security, LAN manager, GIGABYTE Control Center for tweaks.

Newsletter Contact Us Forum

HOME

SOLD OUT

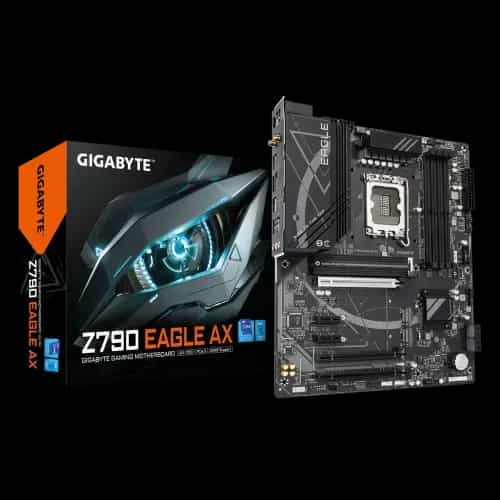

gigabyte z790 eagle ax ddr5 atx motherboard

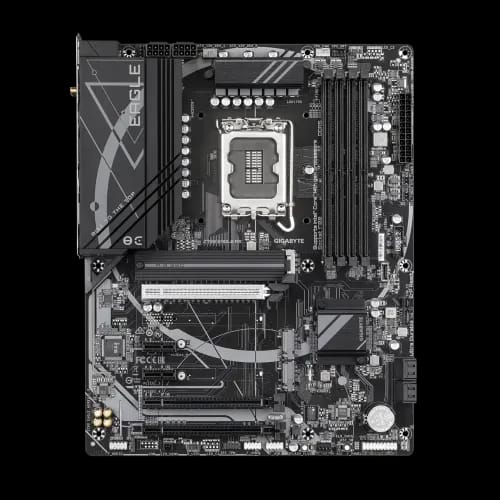

gigabyte z790 eagle ax ddr5 atx motherboard 2

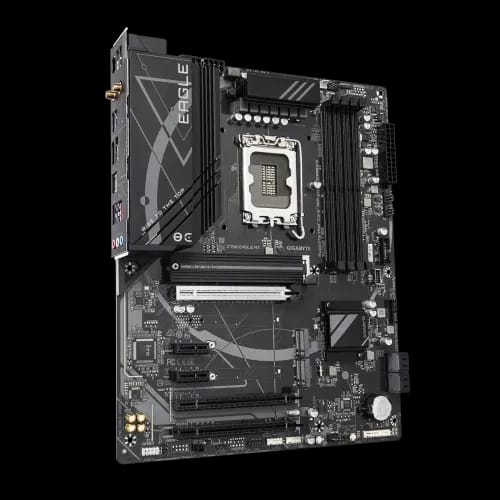

gigabyte z790 eagle ax ddr5 atx motherboard 3

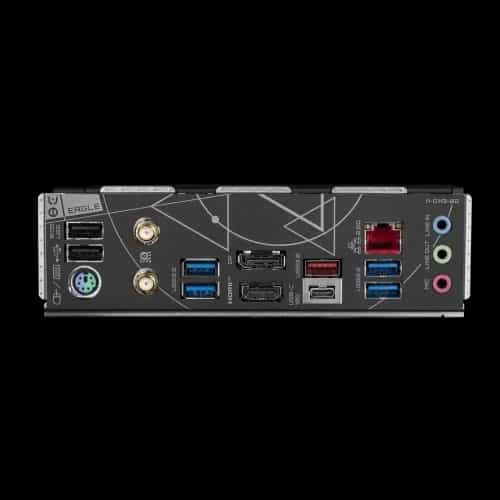

gigabyte z790 eagle ax ddr5 atx motherboard 4

/ PC Components / Motherboard / Gigabyte (Intel) / GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard

GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard

৳29500.00

Key Features

Model: Z790 EAGLE AX
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 4x DDR5, Max 192GB 7600(O.C.)
Graphics Output: 1x HDMI, 1x DisplayPort
Features: Realtek 2.5GbE LAN chip, Intel Wi-Fi 6E

Out Of Stock

Overview

SpecificationDetailsModelZ790 UDForm FactorATXOperating System SupportWindows 11 64-bit, Windows 10 64-bitSocket TypeLGA1700Supported CPUs14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® ProcessorsChipset ModelIntel® Z790 Express Chipset

Memory

CatagoryDetailsMemory SpeedsDDR5 7600(OC), 7400(OC), 7200(OC), 7000(OC), 6800(OC), 6600(OC), 6400(OC), 6200(OC), 6000(OC), 5800(OC), 5600, 5400, 5200, 4800, 4400Slots4 × DDR5 DIMMCapacityUp to 256 GB (64 GB per DIMM)ArchitectureDual ChannelProfiles SupportedIntel XMP

Onboard Graphics

Integrated GPUIntel® HD Graphics (depends on CPU)Outputs1 × HDMI 2.1 (4096×2160@60 Hz, HDCP 2.3) 1 × DisplayPort 1.2 (4096×2304@60 Hz, HDCP 2.3)

Audio

SpecificationDetailsChipsetRealtek® Audio CODECChannels2 / 4 / 5.1 / 7.1 HD AudioFeaturesHigh Definition Audio • Configurable Audio Jacks • S/PDIF Out Support

Networking

SpecificationDetailsLANRealtek® 2.5GbE LAN (2.5G / 1G / 100 Mbps)Wireless (rev.1.0)Intel® Wi-Fi 6E AX211 – Dual-band (2.4 / 5 / 6 GHz), BT 5.3, 160 MHzWireless (rev.1.1)Realtek® Wi-Fi 6E RTL8852CE – Dual-band (2.4 / 5 / 6 GHz), BT 5.3, 160 MHz

Expansion Slots

SpecificationDetailsRealtek® Wi-Fi 6E RTL8852CE – Dual-band (2.4 / 5 / 6 GHz), BT 5.3, 160 MHz1 × PCIe x16 (PCIEX16) – PCIe 5.0 x16 (Graphics card or NVMe SSD)From Chipset1 × PCIe x16 (PCIEX4) – PCIe 4.0 x4 1 × PCIe x16 (PCIEX1_4) – PCIe 3.0 x1 2 × PCIe x1 (PCIEX1_2, PCIEX1_3) – PCIe 3.0 x1

Storage Interface

SpecificationDetailsFrom CPU1 × M.2 (M2A_CPU) – PCIe 4.0 x4/x2 (22110/2280)From Chipset1 × M.2 (M2P_SB) – PCIe 4.0 x4/x2 (2280) 1 × M.2 (M2M_SB) – PCIe 4.0 x4/x2 & SATA (2280)RAID SupportRAID 0 / 1 / 5 / 10 for both NVMe & SATA devices

USB Connectivity

SpecificationDetailsBack Panel (Chipset)1 × USB-C (3.2 Gen 2) • 1 × USB-A (3.2 Gen 2, red) • 4 × USB 3.2 Gen 1 • 2 × USB 2.0Internal Headers1 × USB-C (3.2 Gen 1) • 1 × USB 3.2 Gen 1 Header (2 ports) • 2 × USB 2.0 Headers (4 ports)Total USB PortsUp to 11 × USB Ports (including internal and back panel)

Warranty

Duration3 Years
