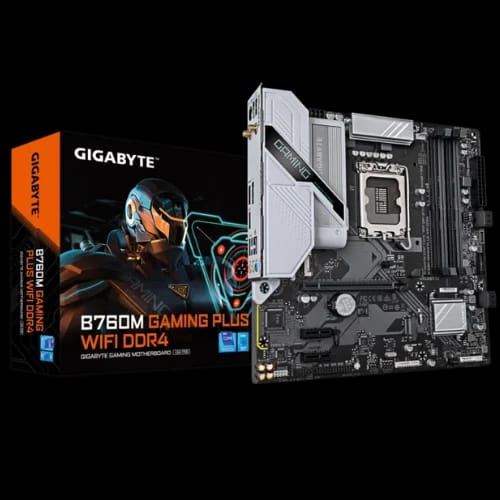

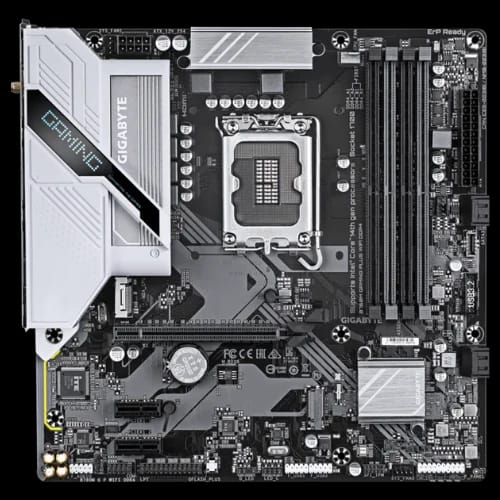

GIGABYTE B760M GAMING PLUS WIFI DDR4 Intel LGA 1700 Micro ATX Motherboard
Key Features
- B760M GAMING PLUS WIFI
- Intel LGA1700 Socket
- DDR4 5333 MT/s
- Dual PCIe M.2
- Wi-Fi 6 Bluetooth
- Q-Flash Plus
Out Of Stock
Share:
Any Questions? Ask On
Technical Specifications
Processor
Chipset and BIOS
Memory
Expansion Slots
Graphics Output
Storage
Networking
Audio
USB Connectivity
Internal Connectors
Rear Panel
Software and Features
Physical Specifications
Warranty
Product Description
GIGABYTE B760M GAMING PLUS WIFI DDR4 Micro ATX Motherboard
Frustrated by limited upgrade options? The GIGABYTE B760M GAMING PLUS WIFI DDR4 Micro ATX Motherboard builds a capable modern Intel platform.
It supports 14th, 13th, and 12th Generation Intel Core processors through the LGA1700 socket.
This Micro ATX Intel motherboard suits gaming PCs, office systems, and compact workstations. Buyers seeking reliable PC Components in Bangladesh receive DDR4 support, Wi-Fi 6, Bluetooth 5.3, and dual PCIe 4.0 M.2 storage.
How Does the GIGABYTE B760M GAMING PLUS WIFI DDR4 Perform?
The Intel B760 Express Chipset provides a practical base for mainstream Intel systems. Its main PCIe x16 slot supports PCIe 4.0 and runs at x16 for a graphics card.
It can alternatively support an NVMe SSD. Two PCIe 3.0 x1 slots support compatible expansion cards.
Four DDR4 DIMM slots accept up to 128GB, with 32GB supported per module. Listed memory speeds range from DDR4-2133 to DDR4-5333 through overclocked profiles.
Dual-channel memory architecture and XMP support help compatible kits reach configured speeds. ECC unbuffered DIMMs operate in non-ECC mode, while standard non-ECC unbuffered memory is supported.
Which GIGABYTE B760M Features Matter Most?
- LGA1700 Intel support
- Four DDR4 slots
- PCIe 4.0 x16
- Dual PCIe 4.0 M.2
- Wi-Fi 6 connectivity
- Q-Flash Plus support
Realtek Wi-Fi 6 RTL8851BE supports 2.4GHz and 5GHz bands with the 11ax 160MHz standard. Bluetooth 5.3 connects compatible wireless peripherals.
Realtek Gigabit Ethernet supports 10Mbps, 100Mbps, and 1Gbps operation.
What Storage and Display Options Are Available?
Two type 2280 M.2 connectors support PCIe 4.0 x4 or x2 NVMe SSDs. One connects through the CPU, while the other connects through the chipset.
Four SATA 6Gb/s ports support SSDs and hard drives. SATA storage supports RAID 0, RAID 1, RAID 5, and RAID 10.
Processors with integrated Intel graphics can use HDMI or DisplayPort. HDMI supports up to 4096 × 2160 at 60Hz, while DisplayPort reaches 4096 × 2304 at 60Hz.
This configuration suits students, office executives, developers, freelancers, and home users who may not require a dedicated graphics card.
What Connectivity and Cooling Headers Are Included?
The rear panel includes three USB 3.2 Gen 1 ports and two USB 2.0/1.1 ports. Internal headers add USB Type-C, USB 3.2 Gen 1, and four USB 2.0/1.1 connections.
The Realtek audio codec supports high-definition 2, 4, 5.1, and 7.1-channel audio. Three rear audio jacks handle common headset and speaker setups.
Builders receive one CPU fan header and three system fan headers. Cooling results depend on the processor, cooler, case airflow, and workload.
Other connections include RGB, addressable LED, S/PDIF Out, serial, parallel, and TPM headers. The board uses one 24-pin ATX and one 8-pin ATX 12V power connector.
Who Should Buy This Micro ATX Intel Motherboard?
The B760M GAMING PLUS WIFI DDR4 fits gamers retaining an existing DDR4 kit. It also suits content producers, software developers, IT firms, and tech hobbyists needing modern networking and storage.
Its 24.4cm × 24.4cm size fits compatible Micro ATX cases. Check CPU support, integrated graphics availability, memory compatibility, case dimensions, and PSU connections before ordering.
Warranty and PCB Store Support
The licensed AMI UEFI BIOS uses a 128Mbit flash chip. Q-Flash and Q-Flash Plus offer practical update options, including the dedicated Q-Flash Plus button.
GIGABYTE Control Center support provides compatible system controls. Bundled software includes Norton Internet Security OEM and LAN bandwidth management software.
The motherboard carries a three-year manufacturing warranty. PCB Store handles warranty claims, technical issues, and product support, backed by reliable after-sales service across Bangladesh.
Buy the GIGABYTE B760M GAMING PLUS WIFI DDR4 in Bangladesh
This board makes sense for Intel builders wanting current connectivity without replacing DDR4 memory. Stock and price in Bangladesh can change, so confirm current availability before completing your parts list.
The motherboard is available at PCB Store Dhaka. Order through PCB Store for authentic PC Components, direct technical guidance, and warranty assistance across Bangladesh.
Delivery Charge Info
Inside Dhaka: ৳100
Outside Dhaka: ৳150
FAQs
What is the price of GIGABYTE B760M GAMING PLUS WIFI DDR4 Micro ATX Motherboard in Bangladesh?
The price varies with stock and market conditions. Check PCB Store’s current listing or contact the team for the latest Bangladesh price.
What makes GIGABYTE B760M GAMING PLUS WIFI DDR4 Micro ATX Motherboard ideal for gamers?
PCIe 4.0 x16, DDR4 XMP, Wi-Fi 6, dual M.2 storage, and LGA1700 compatibility make it suitable for balanced Intel gaming builds.
Where can I buy B760M GAMING PLUS WIFI DDR4 in Bangladesh?
You can buy it from PCB Store Dhaka. PCB Store provides warranty handling, technical support, and after-sales service across Bangladesh.
Which processors support this B760 motherboard?
It supports 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron processors using the LGA1700 socket.
How much DDR4 memory does it support?
It supports up to 128GB across four DDR4 DIMM slots. Each slot accepts capacities up to 32GB.
Does this motherboard include Wi-Fi and Bluetooth?
Yes. It includes Realtek Wi-Fi 6 across 2.4GHz and 5GHz bands, plus Bluetooth 5.3.
Can it run without a graphics card?
Yes, with an Intel processor featuring integrated graphics. HDMI and DisplayPort outputs connect compatible displays.
How many NVMe SSDs can it support?
It supports two type 2280 PCIe 4.0 x4 or x2 M.2 NVMe SSDs.
What power supply connections does it need?
It needs one 24-pin ATX and one 8-pin ATX 12V connection. Required PSU wattage depends on the full system configuration.
Does this board support thermal management?
Yes, through one CPU fan header and three system fan headers. Temperatures still depend on the cooler, airflow, CPU, and workload.
B760M GAMING PLUS WIFI DDR4 vs DDR5 boards?
Choose this model to retain DDR4 memory. DDR5 boards require DDR5 modules, while this board supports DDR4 up to 5333 MT/s overclocked.
