gigabyte b650m gaming plus wifi ddr5 am5 motherboard
/ PC Components / Motherboard / Gigabyte (AMD) / GIGABYTE B650M GAMING PLUS WIFI AM5 Motherboard

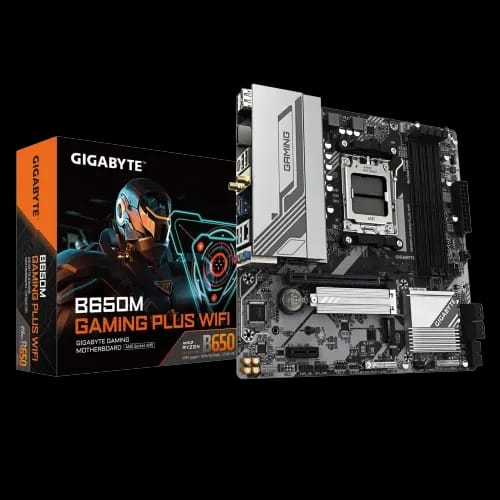

GIGABYTE B650M GAMING PLUS WIFI AM5 Motherboard

20400.00

Key Features

  • Model: B650M GAMING PLUS WIFI
  • Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
  • Supported RAM: 4x DDR5, up to 256GB, 7600 MT/s (OC)
  • Graphics Output: 2x Display Port, 1x HDMI
  • Features: Realtek 2.5GbE LAN & Realtek Wi-Fi 6E RTL8852CE

Out Of Stock

Share:

Technical Specifications

Chipset & CPU Support

ChipsetAMD B650CPU SocketAMD AM5Supported ProcessorsAMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series ProcessorsArchitecture SupportZen 4 / Zen 5CPU Compatibility NoteVisit GIGABYTE CPU Support List for updatesIntegrated GraphicsAvailable only for Ryzen™ CPUs with Radeon™ Graphics (7000G/8000G series)

Memory

Memory TypeDDR5DIMM Slots4 x DDR5 DIMM socketsMaximum CapacityUp to 256 GB (64 GB per DIMM)ECC SupportNon-ECC Un-buffered DIMMs only

Integrated Graphics

Graphics ProcessorIntegrated AMD Radeon™ Graphics (on supported CPUs)Display Outputs2 x DisplayPort 1.4, 1 x HDMI 2.1Display FeaturesSupports HDR and HDCP 2.3LAN Speed2.5 Gbps / 1 Gbps / 100 Mbps

Warranty

Duration3 Years

Storage

M.2 Slots2 x PCIe 4.0 x4SATA Ports4 x SATA 6Gb/sRAID SupportRAID 0, 1, 10

Networking

LANRealtek 2.5GbEWirelessWi-Fi 6E (802.11ax)BluetoothBluetooth 5.3
