What processors are compatible with the B450M-K M.2 V14?

Supports all AMD Ryzen processors that fit the AM4 socket.

How much RAM can this motherboard handle?

Up to 64GB DDR4 across 2 slots, supporting dual-channel mode.

Does it support overclocking?

Yes, memory overclocking up to DDR4-4000(OC) is supported.

Can I use an M.2 NVMe SSD?

Yes, M.2_1 slot supports PCIe 3.0 x4 SSDs.

What display outputs are available?

HDMI 2.0 (up to 4K 60Hz) and VGA ports are included.

No, it only has a Gigabit LAN port.

How many USB ports are there?

2× USB 2.0 and 4× USB 3.2 Gen1 Type-A on the rear panel.

Can I install a high-end graphics card?

Yes, the PCIe 3.0 x16 slot supports large GPUs up to case clearance limits.

Does it support liquid cooling?

Yes, compatible with standard AM4 liquid coolers.

Newsletter Contact Us Forum

HOME

SOLD OUT

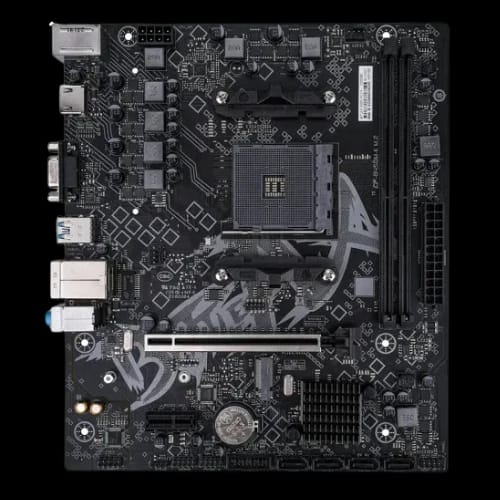

colorful battle ax b450m k m2 v14 am4 m atx motherboard

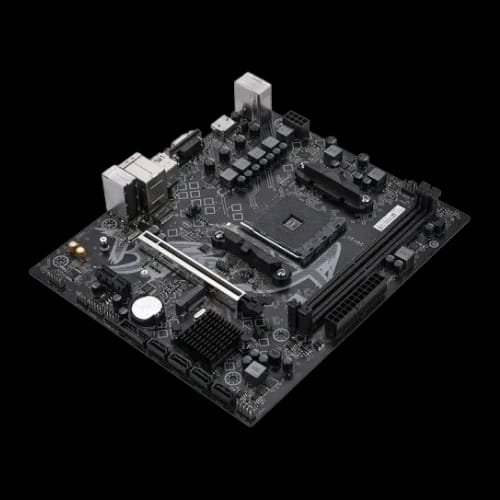

colorful battle ax b450m k m2 v14 am4 m atx motherboard 2

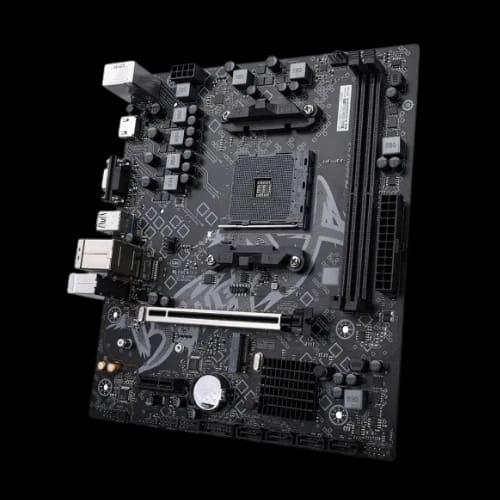

colorful battle ax b450m k m2 v14 am4 m atx motherboard 3

colorful battle ax b450m k m2 v14 am4 m atx motherboard 4

/ PC Components / Motherboard / Colorful (AMD) / Colorful Battle-AX B450M-K M.2 V14 AM4 M-ATX Motherboard

Colorful Battle-AX B450M-K M.2 V14 AM4 M-ATX Motherboard

৳8000.00

Key Features

Colorful B450M-K V14
AMD AM4 Compatible
Supports DDR4 64GB
M.2 NVMe SSD Slot
PCIe 3.0 x16 Slot
4K HDMI Output
Gigabit LAN & Audio

Out Of Stock

General Information

ModelBattle-AX B450M-K M.2 V14SeriesBattle-AXForm FactorMicro-ATX (230mm x 197mm)ColorBlack

CPU & Chipset

ChipsetAMD B450CPU SupportAMD Ryzen series, AM4 socketPower ManagementS3/S4 wake-up, USB/network S5, timing boot

Memory

Memory Slots2× DDR4Max Capacity64GBSupported SpeedsDDR4-4000(OC)/3733(OC)/3600(OC)/3466(OC)/3200/3000/2933/2800/2666/2400/2133 MHzTechnologyXMP, Dual Channel

Storage

SATA Ports4× 6Gb/sM.2 Slot1× 2242/2280, PCIe 3.0 x4 / SATA

Expansion Slots

PCIe 3.0 x161 SlotPCIe 2.0 x11 Slot

Rear I/O Ports

USB 3.2 Gen1 Type-A4USB 2.02HDMI 2.01 (up to 4K 60Hz)VGA1PS/21LAN1× GigabitAudio3× Audio jacks

Onboard Headers

CPU Fan1 PinSystem Fan1 PinUSB 2.0 HeaderExpandable 2 portsUSB 3.2 Gen1 HeaderExpandable 2 portsFront Audio1 PinFront Panel1 PinSpeaker1 PinDigital Audio1 PinClear CMOS1 JumperBIOS Burner1 PinDebug Light1 PinUSB Live Control1 Jumper
