/ PC Components / Motherboard / Asus (Intel) / ASUS TUF GAMING B760M-PLUS II LGA1700 Micro-ATX Motherboard

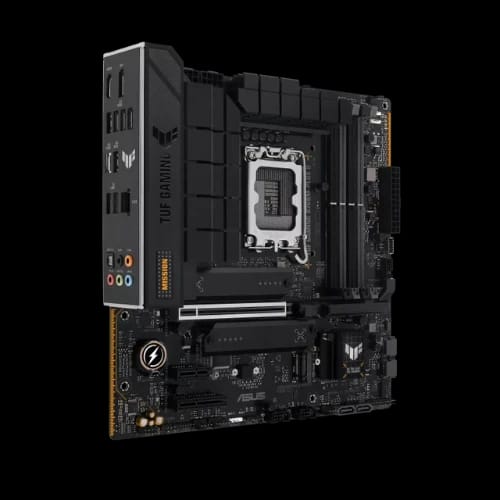

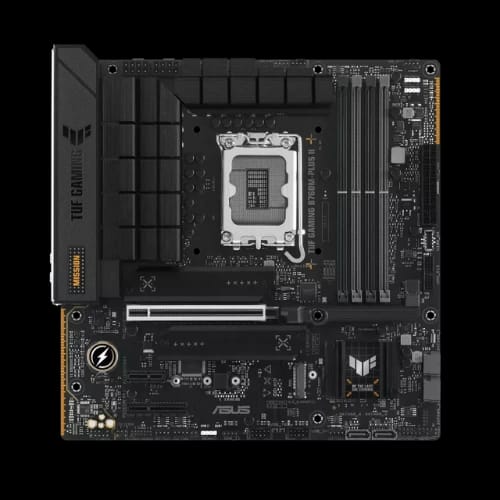

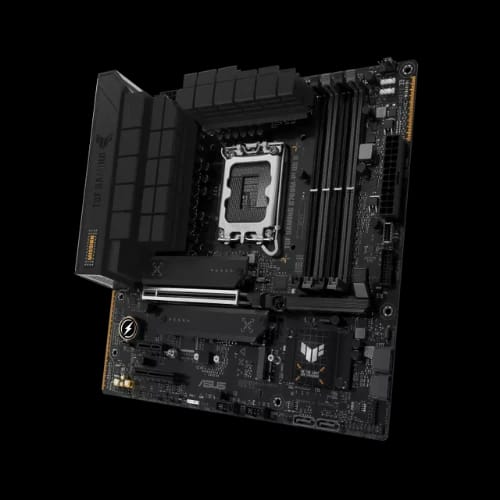

ASUS TUF GAMING B760M-PLUS II LGA1700 Micro-ATX Motherboard

৳22300.00

Key Features

  • TUF B760M-PLUS II
  • LGA1700 support
  • DDR5 192GB
  • PCIe 5.0 GPU
  • Triple M.2 slots
  • 2.5Gb LAN
  • Aura Sync RGB

Out Of Stock

Share:

Technical Specifications

Processor

CPU SupportIntel 14th/13th/12th Gen, Pentium Gold, CeleronSocketLGA1700Turbo TechnologyIntel Turbo Boost 2.0, Turbo Boost Max 3.0

Memory

TypeDDR5Capacity192GBSpeed7800+ OC / 7600–4800ArchitectureDual-channelFeaturesXMP, ASUS AEMP II, On-Die ECC

Storage

M.2 Slots3 × M.2 (PCIe 4.0 x4 / x2)SATA Ports4 × SATA 6Gb/sRAIDSATA RAID 0/1/5/10

Graphics Output

DisplayPort1 × DP 1.4 (4K@60Hz)HDMI1 × HDMI 2.1 (4K@60Hz)

Rear I/O Ports

USB1× USB-C 20Gbps, 1× USB-A 10Gbps, 2× USB-A 5Gbps, 4× USB 2.0Display1 × HDMI, 1 × DisplayPortLAN1 × Realtek 2.5Gb EthernetAudio5 × Audio jacks, 1 × Optical S/PDIF

Internal Connectors

CoolingCPU Fan, CPU OPT, AIO Pump, 3 × Chassis FanPower24-pin ATX, 2 × 8-pin 12VUSBUSB-C 10Gbps, USB 5Gbps header, USB 2.0 headersRGB3 × ARGB Gen 2 headersOtherThunderbolt header, Clear CMOS, F-Audio

Expansion Slots

PCIe x161 × PCIe 5.0 x16PCIe x41 × PCIe 4.0 x4PCIe x11 × PCIe 3.0 x1

Software Support

OSWindows 11, Windows 10 (64-bit)ToolsArmoury Crate, AI Suite 3, Fan Xpert 2+, AURA Sync, DTS Audio

Warranty

Duration3 Years
