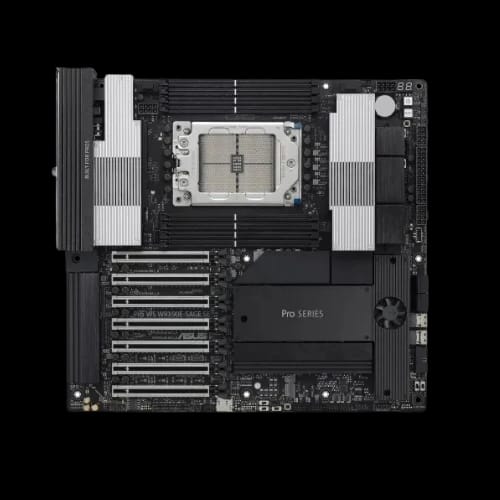

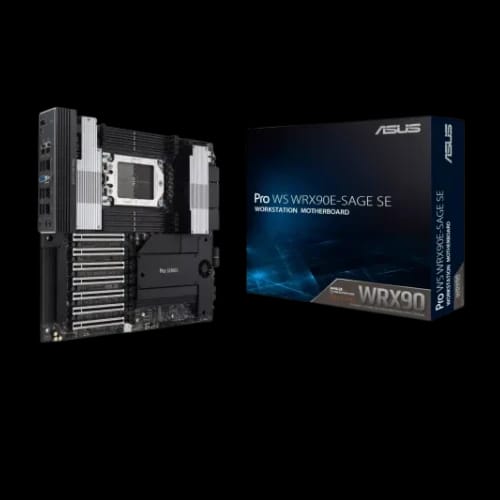

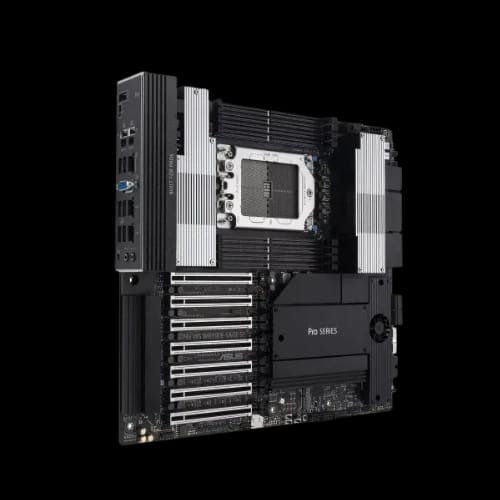

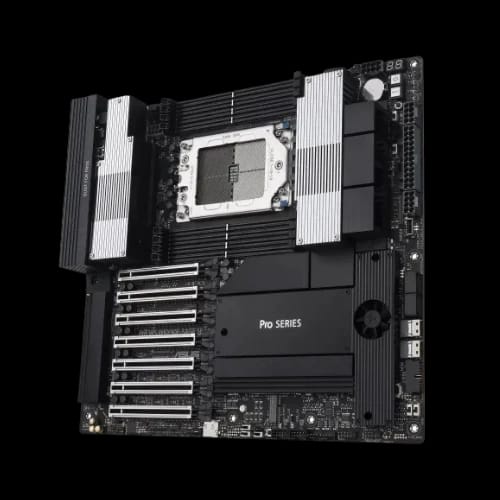

ASUS Pro WS WRX90E-SAGE SE AMD sTR5 EEB Workstation Motherboard

Product Description

Pro ASUS Pro WS WRX90E-SAGE SE for Extreme Workstation Performance

Is your current workstation motherboard holding back your Threadripper PRO build? The ASUS Pro WS WRX90E-SAGE SE is built for professionals who cannot afford bottlenecks. If you are serious about raw compute power and enterprise-grade reliability, the right foundation starts here. Searching for the best gaming PC components for a high-end workstation build? This board sets the benchmark. Designed around the AMD WRX90 chipset and sTR5 socket, it supports Ryzen Threadripper PRO 9000 and 7000 WX-Series processors — the most powerful desktop-class CPUs available today.

This is not a consumer board dressed up in workstation clothing. Every design decision on the best motherboard in Bangladesh list points back to this machine. EEB form factor, eight DDR5 DIMM slots, six PCIe 5.0 x16 slots, and dual 10Gb Intel Ethernet — this is purpose-built iron for rendering farms, simulation rigs, and data-intensive professional workflows.

Chipset, Socket & Platform – The WRX90 Foundation

The WRX90E-SAGE SE is built on AMD's WRX90 platform, purpose-engineered for Threadripper PRO workloads. No gaming board comes close to this level of platform headroom. For professionals comparing the Asus AMD Motherboard Price in Bangladesh, this board represents the pinnacle of what ASUS builds for workstation use.

CPU & Socket Compatibility

The board uses AMD Socket sTR5, supporting Ryzen Threadripper PRO 9000 and 7000 WX-Series processors. This socket class is exclusive to workstation-grade builds and carries enormous bandwidth advantages over consumer AM5 platforms.

Form Factor & BIOS

• The EEB form factor measures 12 x 13 inches (30.5 x 33 cm), requiring a full workstation or server-class chassis for proper fitment.
• BIOS runs on 256 MB Flash ROM with UEFI AMI (text-based), supporting BIOS FlashBack, CrashFree BIOS 3, and EzFlash Utility for reliable firmware management.

The Q-Code display and Safe Boot button give experienced builders and IT administrators precise diagnostic control during system bring-up.

Expansion & Storage – Built for Maximum Throughput

Few boards in any category match the expansion capacity of the WRX90E-SAGE SE. The slot configuration alone separates it from every mainstream and enthusiast option on the market. Professionals evaluating the Asus ROG STRIX X870-A GAMING WIFI AMD AM5 ATX Motherboard for comparison will immediately notice the difference in lane count and slot density at this workstation tier.

PCIe 5.0 Expansion Slots

Six PCIe 5.0 x16 slots plus one additional PCIe 5.0 x16 slot running in x8 mode give you room for multiple GPUs, NVMe expansion cards, capture cards, and high-speed networking adapters simultaneously.

M.2 & SATA Storage Options

• Four M.2 Key-M slots all support PCIe 5.0 x4 mode, accommodating drive lengths from 2242 up to 22110 for enterprise NVMe SSDs.
• Two SlimSAS slots support PCIe 4.0 x4 NVMe devices, and four SATA 6Gb/s ports extend legacy storage compatibility.

AMD RAIDXpert2 Technology supports both PCIe and SATA RAID configurations across RAID 0, 1, 5, and 10 modes — essential for data-redundancy-critical professional environments.

Memory & Connectivity – DDR5 at Scale

Eight DDR5 DIMM slots define the memory architecture of the WRX90E-SAGE SE. Memory type, speed, and module count depend on your specific CPU and configuration — always verify against the official CPU/Memory Support List before purchasing.

Rear I/O USB Configuration

The rear panel delivers nine USB ports in total. Two USB4 40Gbps Type-C ports via ASMedia ASM4242 controller sit alongside six USB 10Gbps Type-A ports and one USB 2.0 Type-A port. Front panel headers add one USB 20Gbps Type-C connector, two USB 5Gbps ports via header, and four additional USB 2.0 ports.

Dual 10Gb LAN & BMC Management

Intel dual 10Gb Ethernet handles primary high-speed networking, while a dedicated Realtek 1Gb LAN port connects the onboard AST2600 BMC for out-of-band IPMI management. This is genuine server-grade remote management built into a desktop workstation board — a rare and valuable feature for IT-managed environments.

Thermal Management & Power Design – Built to Run 24/7

Workstation hardware runs longer and harder than any gaming setup. The WRX90E-SAGE SE was engineered with that reality in mind. Explore all ASUS Products in the workstation lineup, and you will find this thermal philosophy consistent across the range.

VRM & Cooling Infrastructure

DIGI+ VRM delivers a digital power design with SPS for precise voltage regulation under sustained Threadripper PRO loads. Active VRM fans are onboard alongside a dedicated M.2 fan header and an M.2 fan mounted on the board. A steel backplate and M.2 heatsink with thermal pads complete the thermal stack.

Fan Headers & Sensor Points

• One 4-pin CPU fan header, one CPU OPT header, five chassis fan headers, two VRM fan headers, and one M.2 fan header give granular cooling control across the entire build.
• Seven ProbeIt measurement points let technicians take live voltage readings directly from the board without probing individual components blindly.

ProCool II power connectors and the LN2 Mode jumper extend usability into extreme overclocking scenarios for users who need that capability.

Audio, Protection & Software – Professional-Grade Finish

Realtek ALC1220P Surround Sound HD Audio CODEC handles onboard audio with 120 dB SNR stereo playback and 113 dB SNR recording input. It supports up to 32-bit/192kHz playback with premium audio capacitors and dedicated PCB layers for clean signal isolation.

ASUS 5X Protection III & Q-Design

ASUS 5X Protection III covers ESD Guards, LANGuard, overvoltage protection, SafeSlot, and stainless-steel back I/O. Q-Design features, including Q-DIMM, Q-Slot, Q-Release Slim, and Q-LED indicators for CPU, DRAM, VGA, and boot device, simplify assembly and diagnostics.

Bundled Software

Armoury Crate with Fan Xpert 4, ASUS CPU-Z, ASUS Control Centre Express for IT management, Adobe Creative Cloud trial, Norton 360 trial, and WinRAR trial come bundled out of the box.

Warranty & After-Sales Support – Three Years of Coverage

The ASUS Pro WS WRX90E-SAGE SE carries a 3-year manufacturing warranty. For professionals running mission-critical workloads, that coverage window matters.

When you build your own PC online with components sourced from PCB Store, warranty support is handled locally and directly. We provide reliable after-sales service across Bangladesh. Our team handles warranty claims, technical issues, and product support directly through PCB Store — no third-party runarounds, no delays.

Where to Get Genuine ASUS Pro WS WRX90E-SAGE SE in Bangladesh?

Order directly from PCB Store BD for verified stock, competitive pricing, and full warranty coverage. PCB Store is a trusted destination for professional PC builders and IT procurement teams across Bangladesh. Whether you are configuring a single high-end workstation or sourcing components for a multi-seat render farm, PCB Store Dhaka carries the stock and the expertise to support your build from selection through after-sales service.
