What makes the MSI MPG X870E CARBON WIFI the best AM5 motherboard?

Supports Ryzen 7000, 8000, and 9000 series CPUs on AM5, giving flexibility for current and future processors.

Does MSI X870E CARBON WIFI support PCIe 5.0 graphics cards?

Yes — it has 2 × PCIe 5.0 x16 slots (from the CPU) for high-bandwidth devices

Can I use Wi‑Fi 7 on MSI MPG X870E CARBON WIFI for gaming?

Yes — the board comes with a Wi‑Fi 7 solution built-in.

What is the warranty period for MSI X870E CARBON WIFI in Bangladesh?

According to some Bangladesh retailers, the warranty is 3 years for this motherboard.

How many M.2 slots are available on MSI X870E CARBON WIFI?

Also has 4 SATA 6Gb/s ports for additional storage.

Which ATX cases fit the MSI MPG X870E CARBON WIFI motherboard?

Since it's a standard ATX (304.8 × 243.84 mm) form factor, the board will fit in almost any mid-tower or full-tower ATX case.

Newsletter Contact Us Forum

HOME

SOLD OUT

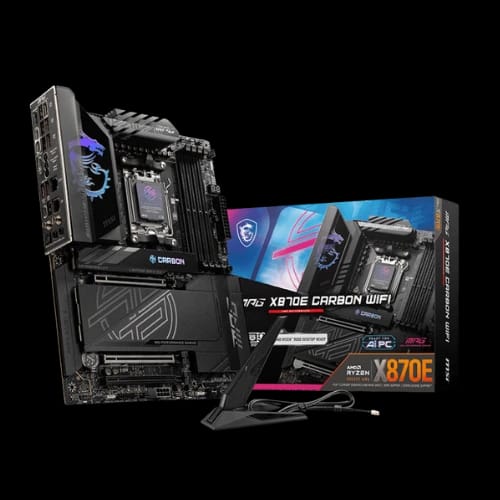

msi mpg x870e carbon wifi amd am5 ddr5 atx motherboard

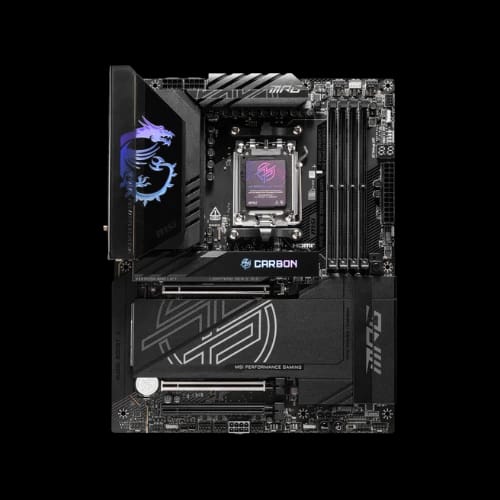

msi mpg x870e carbon wifi amd am5 ddr5 atx motherboard 2

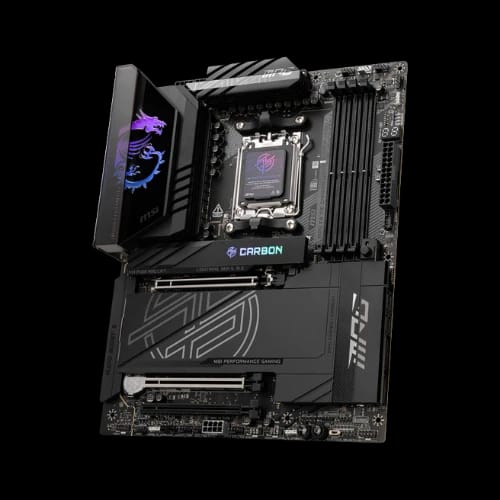

msi mpg x870e carbon wifi amd am5 ddr5 atx motherboard 3

/ PC Components / Motherboard / AMD Motherboard / MSI MPG X870E CARBON WIFI AM5 DDR5 ATX Motherboard

MSI MPG X870E CARBON WIFI AM5 DDR5 ATX Motherboard

৳65500.00

Key Features

Model: MPG X870E CARBON WIFI
Supported CPU: Ryzen 9000/ 8000/ 7000 Series for Socket AM5
Supported RAM: 4x DDR5, Up to 8400-5600 (OC) MT/s
Graphics Output: 1x HDMI, 2x Type-C DisplayPort
Features: 1x 2.5G LAN, 1x 5G LAN, Wi-Fi 7, Bluetooth 5.4

Out Of Stock

Basic Information

Form FactorATXDimensions243.84mm × 304.8mmChipsetAMD X870ECPU SocketAM5Supported CPURyzen 9000 / 8000 / 7000 Series

Memory

Memory TypeDDR5Slots4 DIMMCapacityUp to 256GBSupported SpeedsDDR5 8400–5600 (OC) / 5600–4800 (JEDEC)Ryzen 9000 Max OC1DPC 1R 8400+ MT/s

M.2 Storage

M.2 Slots4 × M.2M.2_1PCIe 5.0 x4, 2280/2260M.2_2PCIe 5.0 x4, 2280/2260M.2_3PCIe 4.0 x4, 22110/2280M.2_4PCIe 4.0 x4, 2280/2260

SATA Storage

SATA Ports4 × SATA 6Gb/sRAID SupportRAID 0 / 1 / 10 (SATA & NVMe)

Graphics Output

HDMI1 × HDMI 2.1 (8K 60Hz)Type-C DisplayPort2 × USB-C DisplayPort 1.4 (4K 60Hz)

Audio

Audio CodecRealtek ALC4080Audio Channels7.1-Channel HD

Networking

LAN1 × 2.5G LANWirelessWi-Fi 7BluetoothBluetooth 5.4

USB Ports (Rear + Front)

USB 40Gbps2 × Type-C (Rear)USB 20Gbps1 × Type-C (Front)USB 10Gbps9 × Type-A (Rear), 2 × Type-C (Rear)USB 5Gbps4 × Type-A (Front)USB 2.04 × (Front)

Internal I/O

Power ConnectorsPower ConnectorsFan HeadersCPU Fan ×1, Pump/Combo ×1, System Fan ×5RGB HeadersARGB ×3, RGB ×1Other HeadersJFP, JAUD, T_SEN, JCI, EZ Conn

Warranty Information

Duration3 Years
