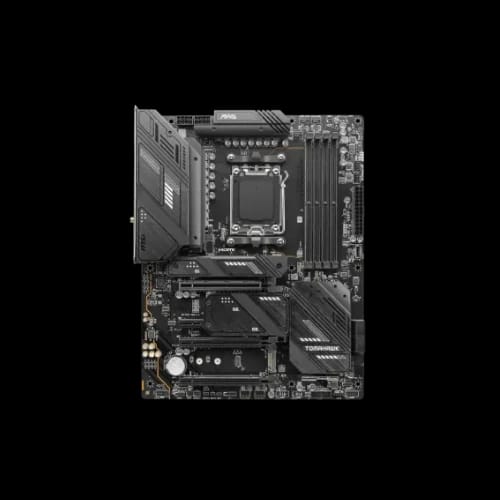

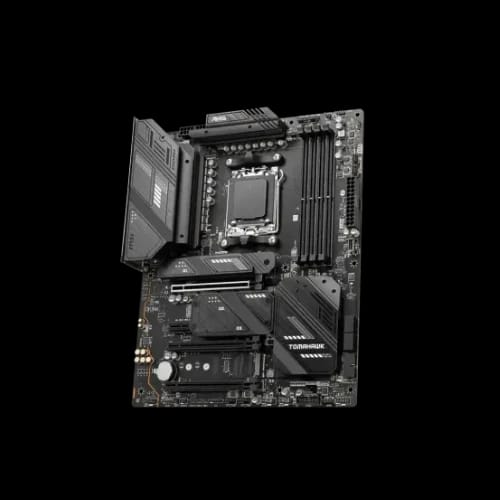

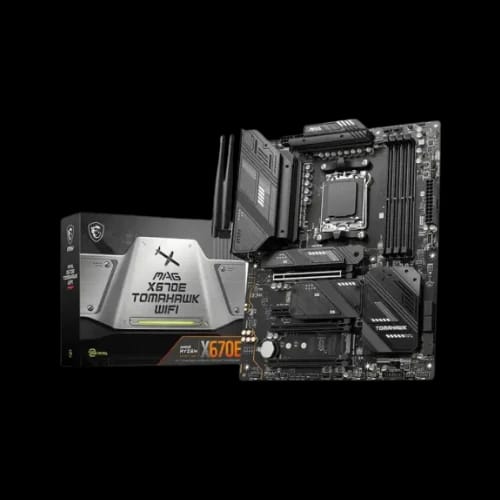

MSI MAG X670E TOMAHAWK WIFI AMD AM5 ATX Motherboard

BASIC INFORMATION

Supported CPUAMD Ryzen 9000 / 8000 / 7000CPU SocketAM5ChipsetAMD X670Form FactorATX (243.84 × 304.8 mm)

AUDIO

CodecRealtek ALC1200Audio Channels7.1 HD AudioS/PDIFSupported

EXPANSION SLOTS

PCI-E x16 Slots3× (x16 / x4 / x2)PCI-E x1 Slot1×PCI_E1PCIe 5.0 x16 (CPU)PCI_E2PCIe 3.0 x1 (Chipset)PCI_E3PCIe 4.0 x4 (CPU)PCI_E4PCIe 4.0 x2 (Chipset)

MEMORY

TypeDDR5Slots4Supported Speeds6000+(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800(JEDEC)Max Capacity192 GBChannel ModeDual-ChannelECCNon-ECC, UnbufferedEXPOSupportedMax OC (1DPC 1R)6000+ MHzMax OC (2DPC 2R)5400+ MHz

GRAPHICS OUTPUT

HDMIHDMI 2.1 (4K 120Hz)DisplayPortDP 1.4 (4K 60Hz)USB-C DPDP 1.4 HBR3 (4K 120Hz)

USB PORTS

USB 2.0 (Front)4×USB 3.2 Gen1 (Rear)4× Type-AUSB 3.2 Gen1 (Front)4× Type-AUSB 3.2 Gen2 (Rear)1× Type-CUSB 3.2 Gen2 (Front)1× Type-CUSB 3.2 Gen2x2 (Rear)1× Type-C

NETWORKING

LANRealtek RTL8125BG 2.5GbpsWi-FiAMD Wi-Fi 6EBluetoothBluetooth 5.3MU-MIMOSupportedBand Support2.4 / 5 / 6 GHz

STORAGE

M.2_1PCIe 5.0 x4 (CPU), 22110/2280M.2_2PCIe 4.0 x4 (Chipset), 2280/2260M.2_3PCIe 4.0 x4 (Chipset), 2280/2260M.2_4PCIe 4.0 x4 (Chipset), 2280/2260SATA4× SATA 6Gb/sRAID (SATA)RAID 0 / 1 / 10RAID (NVMe)RAID 0 / 1 / 10

INTERNAL I/O

ATX_PWR1×CPU_PWR2×CPU Fan1×Pump Fan1×System Fan6×Front Panel2×Chassis Intrusion1×Front Audio1×Tuning Controller (JDASH)1×ARGB V22×RGB2×USB 2.04×USB 3.2 Gen14×USB 3.2 Gen2 Type-C1×TPM Header1× (TPM 2.0)

SPECIAL FEATURES

Debug LEDs4× EZ Debug LED
