What CPUs are compatible with the MSI B840M GAMING WIFI6E AM5 motherboard?

The motherboard supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors.

Does this motherboard support DDR5 memory?

Yes, it supports DDR5 memory up to 8000 MT/s (OC).

Can I install a graphics card on this motherboard?

Yes, it has PCIe 4.0 x16 slots for optimal graphics card performance.

What Wi-Fi standards does this motherboard support?

The MSI B840M supports Wi-Fi 6E, providing speeds up to 2.4Gbps on the 6GHz band.

Does it have built-in Bluetooth?

Yes, the motherboard supports Bluetooth 5.3 for seamless wireless connectivity.

Newsletter Contact Us Forum

HOME

SOLD OUT

/ PC Components / Motherboard / MSI (AMD) / MSI B840M GAMING WIFI6E AM5 mATX Motherboard

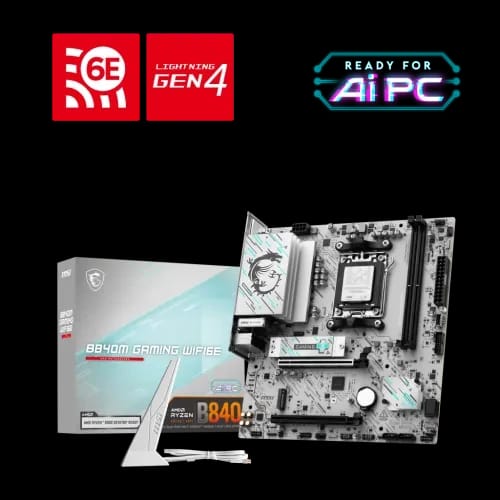

MSI B840M GAMING WIFI6E AM5 mATX Motherboard

৳19000.00

Key Features

Model: B840M GAMING WIFI6E
Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Supported RAM: 2x DDR5, up to 8000 (OC) MT/s
Graphics Output: 1x HDMI, 1x DisplayPort
Features: Realtek 8125D 2.5G LAN, Wi-Fi 6E, Bluetooth 5.3

Out Of Stock

CPU & Chipset

CPU SupportAMD Ryzen 9000/8000/7000 Series, AM5ChipsetAMD B840BIOSFlash BIOS Button

Form Factor & Memory

Form FactormATX (226mm x 243.84mm)Memory Slots2 x UDIMMSupported MemoryDDR5 8000 - 5600 MT/s (OC), 5600 - 4800 MT/sMaximum Memory128GB

Expansion & Storage

Expansion Slots2x PCI-E x16 (1x PCIe 4.0, 1x PCIe 3.0)M.2 Slots2x M.2 (PCIe 4.0 x4, 2280/2260 devices)SATA Ports4x SATA 6G

Graphics & Audio

Graphics Ports1x HDMI 2.1, 1x DisplayPort 1.4AudioRealtek ALC897, 7.1-Channel HD Audio

Connectivity

Network ConnectivityRealtek 8125D 2.5G LAN, Wi-Fi 6EUSB Ports2x USB 2.0 (Rear), 4x USB 2.0 (Front), 4x USB 5Gbps Type A (Rear), 2x USB 5Gbps Type A (Front), 1x USB 5Gbps Type C (Front)

Warranty Information

Duration3 Years

FAQs
