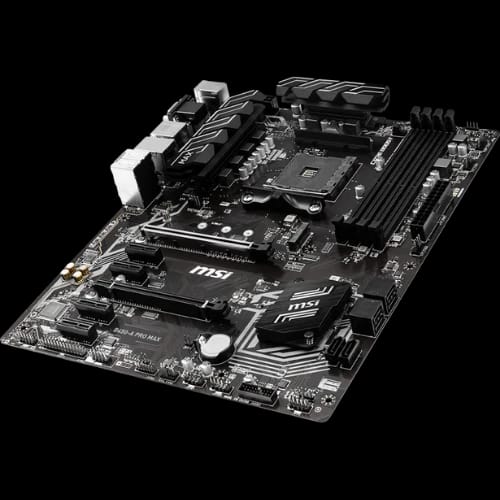

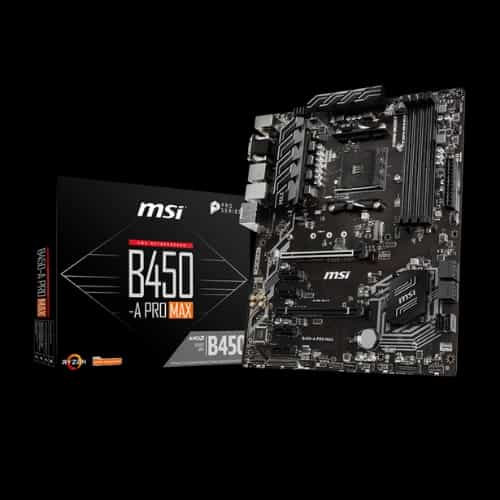

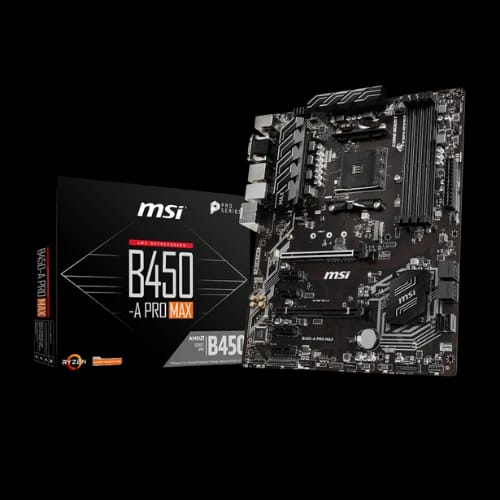

Technical Specifications
General
| Chipset | AMD B450 |
| CPU Support | Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series, 1000 Series Desktop Processors, and Athlon™ with Radeon™ Vega Graphics desktop processors |
| Socket | AM4 |
| Form Factor | mATX |
| PCB Size | 200mm x 236mm |
Memory
| Memory Slots | 4x DDR4 DIMM Slots |
| Maximum Capacity | Up to 128GB |
| Memory Type | DDR4 2667 / 2800 / 2933 / 3000 / 3066 / 3200 / 3466 / 3600 / 3733 / 3866 / 4000 / 4133 MHz (by A-XMP OC MODE) |
| Channel Support | Dual-Channel Mode |
| ECC Support | Supports non-ECC, UDIMM memory and ECC UDIMM memory (non-ECC mode) |
| Memory Architecture | Un-buffered Memory |
Onboard Graphics
| HDMI™ | 1x HDMI™ 2.0b with HDR, Max Resolution: 4K @ 60Hz* |
| DVI-D | 1x DVI-D, Max Resolution: 1920x1200 @ 60Hz |
Expansion Slots
| PCI-E x16 | 1x PCI-E 3.0 x16 (from CPU) |
| PCI-E x1 | 1x PCI-E 2.0 x1 (from Chipset) |
Audio
| Audio | Realtek® ALC897 Codec, 7.1-Channel High Definition Audio |
Storage
| M.2 Slot | 1x M.2_1 (from CPU) — Supports PCIe 3.0 x4 / SATA mode, 2280 / 2260 / 2242 devices |
| SATA Ports | 4x SATA 6Gb/s |
RAID Support
| Supports RAID 0, RAID 1, RAID 10 for SATA storage devices | Supports RAID 0, RAID 1, RAID 10 for SATA storage devices |
USB Connectivity
| Rear Ports | 2x USB 2.0, 4x USB 5Gbps Type-A |
| Front Ports | 4x USB 2.0, 2x USB 5Gbps Type-A |
LAN
| LAN | Realtek® 8125 2.5Gbps LAN Controller |
Internal I/O Connectors
| Power Connectors | 1x 24-pin ATX Power, 1x 8-pin CPU Power |
| Cooling Headers | 1x CPU Fan, 1x System Fan |
| Front Panel | 2x JFP Headers |
| Front Audio | 1x JAUD |
| Chassis Intrusion | 1x JCI |
| COM Port | 1x JCOM |
| TPM | 1x TPM Header (Supports TPM 2.0) |
| Internal USB | 4x USB 2.0 Ports, 2x USB 5Gbps Type-A Ports |
Back Panel Ports
| Keyboard/Mouse | Combo Port |
| Video Output | DVI-D, HDMI™ |
| USB Ports | USB 3.2 Gen 1 5Gbps (Type-A), USB 2.0 |
| LAN Port | 2.5G LAN |
| Audio Connectors | 3x Audio Jacks |
Operating System Support
| Operating System Support | Windows® 11 64-bit, Windows® 10 64-bit |
Warranty Information
| Duration | 03 Years |
