Technical Specifications
General

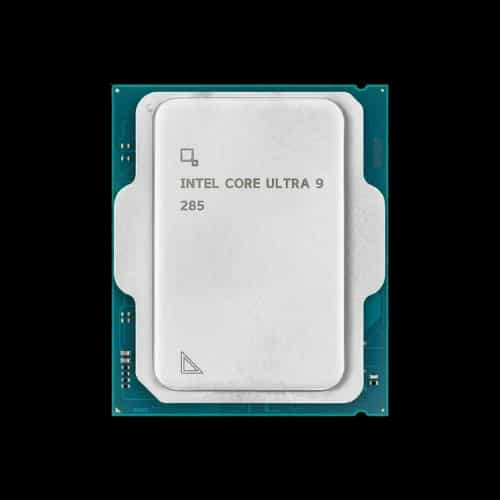

| Processor Model | Intel Core Ultra 9 285 |
| Code Name | Arrow Lake |
| Segment | Desktop |
| Lithography | TSMC N3B |
CPU Performance
| Total Cores / Threads | 24 Cores / 24 Threads |
| Core Configuration | 8P + 16E |
| Max Turbo Frequency | 5.6 GHz |
| P-Core Turbo / Base | 5.4 GHz / 2.5 GHz |
| E-Core Turbo / Base | 4.6 GHz / 1.9 GHz |
| Cache | 36MB L3 + 40MB L2 |
| Processor Base Power | 65 W |
| Max Turbo Power | 182 W |
AI & Compute
| Total AI Performance | 36 TOPS (Int8) |
| NPU Performance | 13 TOPS |
| GPU AI Performance | 8 TOPS |
| DL Boost Support | Yes (CPU + GPU) |
| AI Frameworks | OpenVINO, WindowsML, DirectML, ONNX RT, WebNN |
Memory
| Max Memory Size | 256 GB |
| Memory Type | DDR5 up to 6400 MT/s |
| Memory Channels | 2 |
| ECC Support | Yes |
Integrated Graphics
| GPU Name | Intel Graphics |
| GPU Frequency | 300 MHz – 2 GHz |
| Xe-Cores | 4 |
| Max Resolution (HDMI) | Up to 8K @ 60Hz |
| Max Displays | 4 |
| API Support | DirectX 12, OpenGL 4.5, OpenCL 3 |
| Media Support | H.264 / HEVC / AV1 Encode & Decode |
Expansion & Connectivity
| PCIe Version | 5.0 & 4.0 |
| PCIe Lanes | 24 |
| DMI Revision | 4.0 |
| Thunderbolt | Thunderbolt 4 |
| Scalability | 1S Only |
Advanced Technologies
| Thread Director | Yes |
| Turbo Boost Max 3.0 | Yes |
| Thermal Velocity Boost | Yes |
| Hyper-Threading | No |
| Instruction Set | 64-bit, AVX2, SSE4.1/4.2 |
Security & Manageability
| vPro Support | Enterprise |
| Intel AMT | Yes |
| AES-NI | Yes |
| Trusted Execution | Yes |
| Virtualization | VT-x, VT-d, EPT |
| Memory Encryption | Multi-Key |
Warranty
| Warranty | 3 Years |
