Technical Specifications
Efficiency & Certification
| Efficiency Rating | 85% @ Typical Load |
| Certification | 80 PLUS Bronze |
Input Power
| Input Voltage | 100–240 VAC |
| Frequency Range | 50–60Hz |
| Input Current | 10A Max |
Cooling & Internal Design

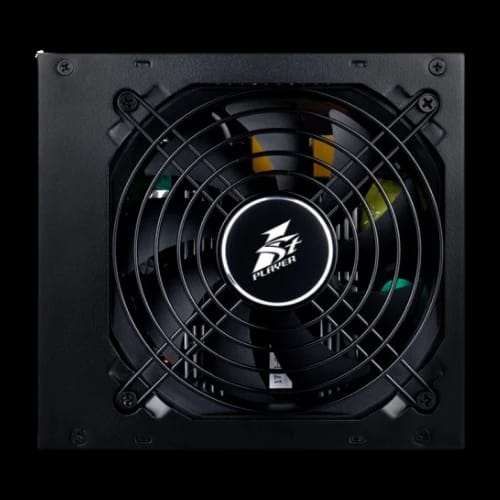

| Fan Size | 120mm |
| Fan Bearing | Hydraulic Bearing |
| Circuit Structure | Double Forward |
Safety & Reliability
| PFC | Active PFC |
| Protection Features | UVP, OVP, OPP, SCP, Lightning |
| Operating Temperature | 0°C – 40°C |
| MTBF | 100,000 Hours |
| Regulatory Compliance | CE, FCC, ROHS, CCC, cTUVus, IEC, EAC |
General Information

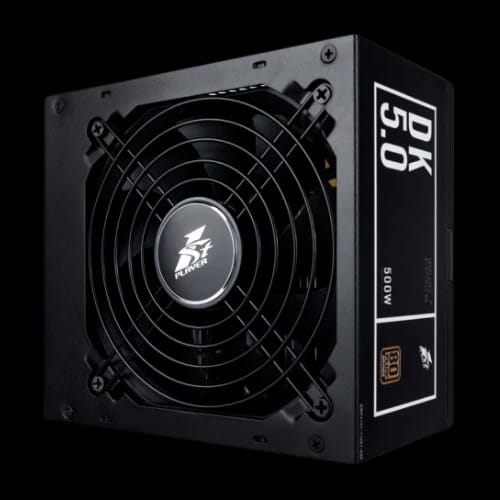

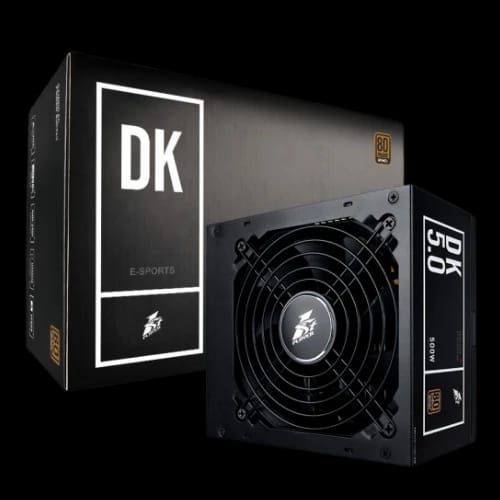

| Product Model | 1STPLAYER PS-500AX |
| PSU Type | Non Modular |
| Total Power | 500W |
| DC Output | 500W |
Warranty Information
| Warranty | 5 Years |
