Technical Specifications
Basic Information

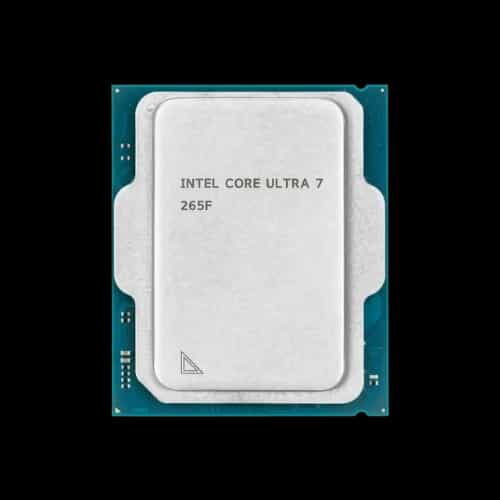

| Model | Intel Core Ultra 7 265F |
| Code Name | Arrow Lake |
| Segment | Desktop Processor |
| Lithography | TSMC N3B |
Core & Performance
| Total Cores | 20 (8P + 12E) |
| Total Threads | 20 |
| Max Turbo Frequency | Up to 5.30 GHz |
| Base Frequency (P-core) | 2.4 GHz |
| Base Frequency (E-core) | 1.8 GHz |
| Cache | 30MB Smart Cache |
| L2 Cache | 36MB |
Power & Efficiency
| Base Power | 65W |
| Max Turbo Power | 182W |
Memory Support
| Max Memory Size | 256GB |
| Memory Type | DDR5 up to 6400 MT/s |
| Memory Channels | 2 |
| ECC Support | No |
Graphics & AI
| Integrated GPU | None |
| NPU | Intel AI Boost (13 TOPS) |
| AI Frameworks | OpenVINO, WindowsML, DirectML, ONNX RT, WebNN |
Expansion & Connectivity
| PCIe Version | PCIe 5.0 & 4.0 |
| PCIe Lanes | 24 |
| Thunderbolt Support | Thunderbolt 4 |
| DMI Version | 4.0 |
Advanced Features
| Hyper-Threading | No |
| Turbo Boost | 2.0 / 3.0 |
| Thread Director | Yes |
| Instruction Set | 64-bit, AVX2, SSE4.1/4.2 |
Security & Virtualization
| Virtualization | VT-x, VT-d, EPT |
| Security Features | AES, Boot Guard, OS Guard |
Warranty Info
| Warranty | 3 Years |
