Technical Specifications
General Information

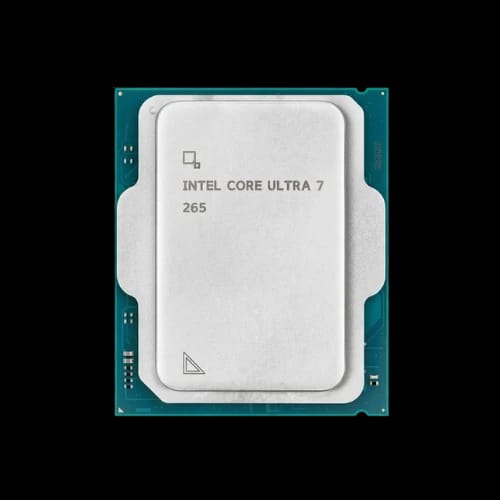

| Processor Model | Intel® Core™ Ultra 7 265 |
| Code Name | Arrow Lake |
| Segment | Desktop |
| Lithography | TSMC N3B |
Performance
| Total Cores | 20 |
| Performance Cores | 8 |
| Efficient Cores | 12 |
| Threads | 20 |
| Max Turbo Frequency | 5.30 GHz |
| Base Frequency (P-core) | 2.4 GHz |
| Base Frequency (E-core) | 1.8 GHz |
| Cache | 30 MB Smart Cache |
| L2 Cache | 36 MB |
| Base Power | 65 W |
| Max Turbo Power | 182 W |
AI & Processing
| CPU AI Performance | 33 TOPS (Int8) |
| NPU | Intel® AI Boost |
| NPU Performance | 13 TOPS |
| GPU AI Performance | 8 TOPS |
| AI Frameworks | OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN |
Memory Support
| Max Memory Size | 256 GB |
| Memory Type | DDR5 6400 MT/s |
| Memory Channels | 2 |
| ECC Support | Yes |
Graphics (Integrated)
| GPU | Intel® Graphics |
| Base Frequency | 300 MHz |
| Max Frequency | 1.95 GHz |
| Xe Cores | 4 |
| Max Displays | 4 |
| Max Resolution (HDMI) | 7680×4320 @60Hz |
| Max Resolution (DP) | 7680×4320 @60Hz |
| DirectX Support | 12 |
| OpenGL | 4.5 |
| AV1 Encode/Decode | Yes |
Expansion & Connectivity
| PCIe Version | 5.0 & 4.0 |
| PCIe Lanes | 24 |
| DMI Version | 4 |
| Thunderbolt 4 | Yes |
Advanced Technologies
| Turbo Boost Max 3.0 | Yes |
| Thread Director | Yes |
| Hyper-Threading | No |
| Instruction Set | 64-bit |
| AVX Support | AVX2 |
Security & Reliability
| Intel vPro® | Enterprise |
| AES-NI | Yes |
| Secure Boot | Yes |
| Virtualization (VT-x, VT-d) | Yes |
| Threat Detection | Yes |
Warranty
| Warranty | 3 Years |
