Technical Specifications
Basic Information

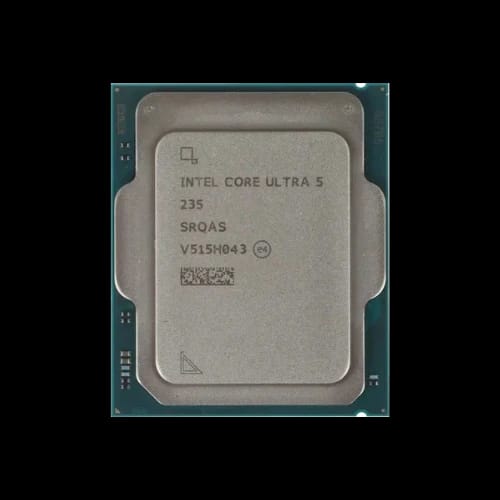

| Processor Model | Intel® Core™ Ultra 5 235 |
| Code Name | Arrow Lake |
| Segment | Desktop |
| Lithography | TSMC N3B |
CPU Configuration
| Total Cores | 14 |
| Performance Cores | 6 |
| Efficient Cores | 8 |
| Total Threads | 14 |
| Max Turbo Frequency | 5.00 GHz |
| Base Frequency (P-core) | 3.4 GHz |
| Base Frequency (E-core) | 2.9 GHz |
| Cache | 24 MB Smart Cache |
| L2 Cache | 26 MB |
Power & Performance
| Processor Base Power | 65 W |
| Max Turbo Power | 121 W |
| CPU AI TOPS | 27 TOPS (Int8) |
Memory Specifications
| Max Memory Size | 256 GB |
| Memory Type | DDR5 6400 MT/s |
| Memory Channels | 2 |
| ECC Support | Yes |
Integrated Graphics
| GPU Name | Intel® Graphics |
| Base Frequency | 300 MHz |
| Max Frequency | 2 GHz |
| GPU AI TOPS | 6 TOPS |
| Xe Cores | 3 |
| Max Displays | 4 |
| Max Resolution (HDMI) | 8K @ 60Hz |
| DirectX Support | 12 |
| OpenGL Support | 4.5 |
NPU (AI Engine)
| NPU Name | Intel® AI Boost |
| NPU Performance | 13 TOPS |
| Sparsity Support | Yes |
| Windows Studio Effects | Yes |
Expansion & Connectivity
| PCIe Version | 5.0 & 4.0 |
| PCIe Lanes | 24 |
| DMI Version | 4.0 |
| Thunderbolt | Thunderbolt™ 4 |
Advanced Technologies
| Intel Thread Director | Yes |
| Turbo Boost | 2.0 |
| Hyper-Threading | No |
| Instruction Set | 64-bit |
| AVX Support | AVX2 |
Security & Virtualization
| Intel vPro | Enterprise |
| Intel TDT | Yes |
| Intel AMT | Yes |
| VT-x / VT-d | Yes |
| AES-NI | Yes |
| Boot Guard | Yes |
Warranty
| Warranty | 3 Years |
