Technical Specifications
Basic Information

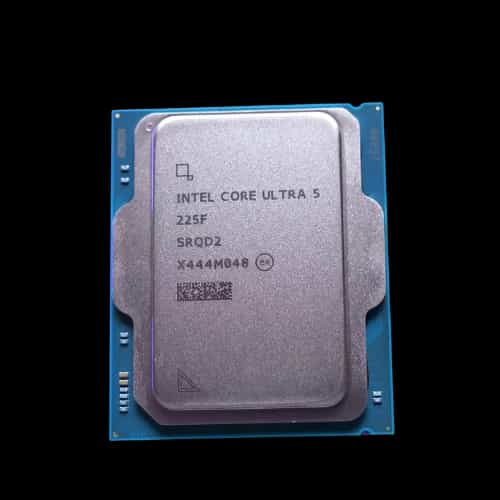

| Model | Intel Core Ultra 5 225F |
| Code Name | Arrow Lake |
| Segment | Desktop Processor |
| Lithography | TSMC N3B |
CPU Configuration
| Total Cores | 10 (6P + 4E) |
| Total Threads | 10 |
| Max Turbo Frequency | Up to 4.9 GHz |
| Base Frequency | 3.3 GHz (P-core), 2.7 GHz (E-core) |
| Cache | 20 MB Smart Cache |
| L2 Cache | 22 MB |
Power & Performance
| Base Power | 65 W |
| Max Turbo Power | 121 W |
| AI Performance | 19 TOPS (CPU) |
| NPU | Intel AI Boost (13 TOPS) |
Memory Support
| Max Memory Size | 256 GB |
| Memory Type | DDR5 Up to 6400 MT/s |
| Memory Channels | 2 |
| ECC Support | No |
Graphics & Display
| Integrated Graphics | None |
| Xe Cores | 0 |
| Display Support | 0 |
| Quick Sync Video | No |
Expansion & Connectivity
| PCIe Version | PCIe 5.0 & 4.0 |
| PCIe Lanes | Up to 24 |
| DMI Version | 4.0 |
| Thunderbolt Support | Yes (Thunderbolt 4) |
Advanced Technologies
| Intel Thread Director | Yes |
| Turbo Boost | 2.0 |
| Hyper-Threading | No |
| Instruction Set | 64-bit, AVX2, SSE4.1/4.2 |
| Virtualization | VT-x, VT-d |
Security Features
| AES-NI | Yes |
| Trusted Execution | Yes |
| Boot Guard | Yes |
| OS Guard | Yes |
Warranty
| Warranty | 3 Years |
