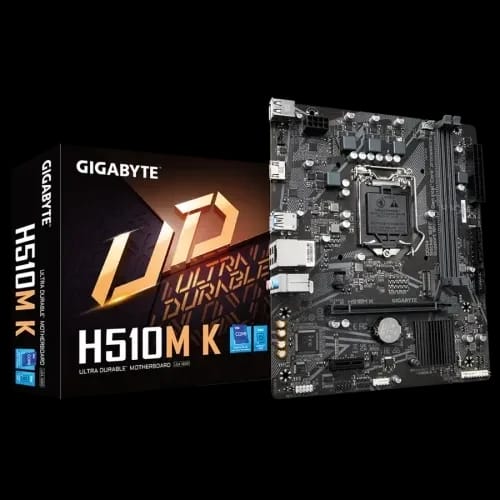

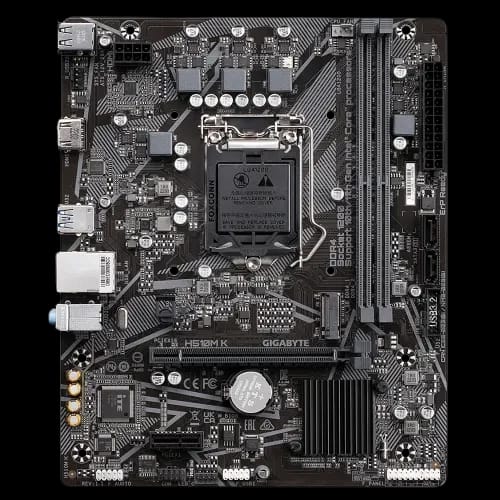

GIGABYTE H510M K Micro ATX Motherboard

Basic Information

ModelGIGABYTE H510M K Micro ATX MotherboardForm FactorMicro ATX, 22.6 cm x 18.5 cmChipsetIntel B560 Express ChipsetBIOS1 x 128 Mbit flash, AMI UEFI BIOS

Processor Support

Supported CPU10th Gen Intel Core i9/i7/i5/i3, Pentium, CeleronCache SupportL3 cache varies by CPU

Memory

Memory TypeDDR4Memory Slots2 x DIMMMaximum Memory64GBMemory ArchitectureDual-channelMemory Speed Support3200/3000/2933/2666/2400/2133 MT/sXMP SupportYesECC SupportECC Un-buffered DIMM supported in non-ECC mode

Graphics

Integrated GraphicsIntel HD Graphics supportVideo Output1 x HDMIMax Resolution4096 x 2160 @ 30 HzHDMI VersionHDMI 1.4HDCP SupportHDCP 2.3

Expansion Slots

PCIe x16 Slot1 x PCI Express x16, PCIe 4.0 x16 with 11th Gen CPUPCIe x1 Slot1 x PCI Express x1, PCIe 3.0 x1

Storage

M.2 Slot1 x Socket 3, M key, Type 2280, PCIe 3.0 x4/x2 SSDSATA Ports2 x SATA 6Gb/s

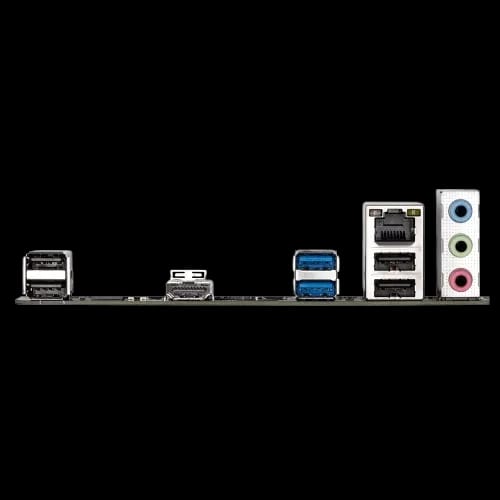

Rear I/O Ports

HDMI Port1 x HDMIUSB 3.2 Gen 12 x back panelUSB 2.0/1.14 x back panelLAN Port1 x RJ-45Audio Jacks3 x audio jacks

Internal I/O Connectors

Power Connectors1 x 24-pin ATX, 1 x 8-pin ATX 12VFan Headers1 x CPU fan, 1 x system fanUSB Headers1 x USB 3.2 Gen 1, 1 x USB 2.0/1.1Storage Connectors1 x M.2, 2 x SATA 6Gb/sOther HeadersFront panel, front panel audio, RGB LED strip, serial port, Clear CMOS jumper

Networking and Audio

LAN ChipRealtek GbE LAN, 1 Gbps/100 MbpsAudio CodecRealtek Audio CODECAudio Channels2/4/5.1/7.1-channel High Definition Audio

Software and Features

Special FeaturesAPP Center, @BIOS, Ambient LED, EasyTune, Smart Backup, System Information Viewer, Q-Flash, Xpress InstallBundled SoftwareNorton Internet Security OEM, LAN bandwidth management software
