Does the GIGABYTE B650M K support AMD Ryzen 7000 and 8000 series processors?

Yes, it fully supports AMD Socket AM5 Ryzen 7000 &amp;amp;amp;amp;amp;amp; 8000 series processors.

How much RAM can this motherboard handle?

It supports up to 256GB of DDR5 memory across 4 DIMM slots.

Can I overclock RAM on this motherboard?

Yes, it supports AMD EXPO™ and XMP memory profiles for overclocking.

What are the graphics output options?

It has 1 x HDMI 2.1 port and 1 x DisplayPort 1.4.

Is PCIe 4.0 supported?

Yes, the main PCIe x16 slot supports PCIe 4.0 at full speed.

How many storage drives can I connect?

You can connect 2 M.2 SSDs and 4 SATA 6Gb/s drives, with RAID support.

Newsletter Contact Us Forum

HOME

SOLD OUT

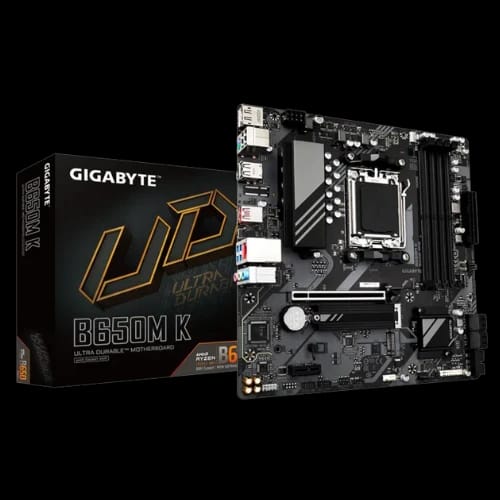

gigabyte b650m k am5 amd ddr5 micro atx motherboard

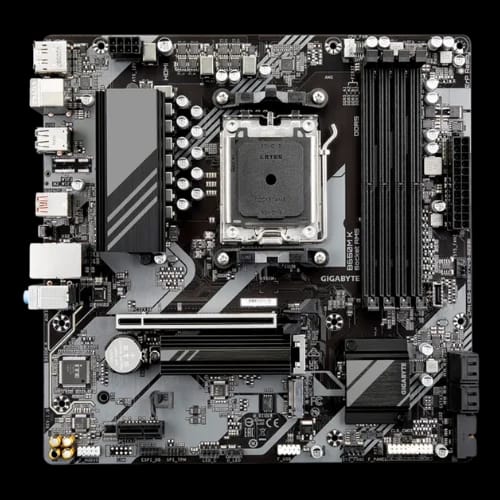

gigabyte b650m k am5 amd ddr5 micro atx motherboard 2

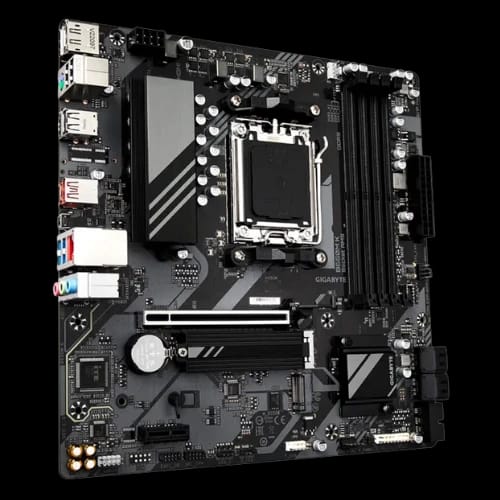

gigabyte b650m k am5 amd ddr5 micro atx motherboard 3

/ PC Components / Motherboard / AMD Motherboard / GIGABYTE B650M K AM5 DDR5 Micro ATX Motherboard

GIGABYTE B650M K AM5 DDR5 Micro ATX Motherboard

৳15000.00

Key Features

Model: B650M K
Supported CPU: Ryzen 8000 & 7000 Series Processors for Socket AM5
Supported RAM: 4x DDR5, up to 192GB, 8000(OC)
Graphics Output: 1x Display Port, 1 x HDMI
Features: 2.5GbE LAN

Out Of Stock

Basic Information

Supported CPUAMD Ryzen 8000 & 7000 SeriesChipsetAMD B650BIOS1 x 256 Mbit flash, AMI UEFIForm FactorMicro ATX, 24.4cm x 24.4cmAudioRealtek Audio CODEC, HD Audio, 2/4/5.1/7.1-channel

Memory

TypeDDR5Slots4 DIMMsSupported Memory4800–8000 MT/s (OC), Dual Channel, Non-ECC, 1Rx8/2Rx8/1Rx16, AMD EXPO & XMPMaximum Memory256 GB

Expansion Slots

PCIe x16 Slot1 x PCIe 4.0, x16PCIe x1 Slot1 x PCIe 3.0, x1

Storage & RAID

M.2 Connectors1 x M.2 (Socket 3, PCIe 4.0 x4/x2, 2280/2580/25110)SATA Ports4 x SATA 6Gb/sRAID SupportRAID 0, 1, 10 for NVMe & SATA

Connectivity & USB

USB Type-C1 x USB 3.2 Gen 2 (Back Panel), 1 x USB 3.2 Gen 1 (Internal)USB 3.23 x USB 3.2 Gen 1 (2 Back, 2 Internal)USB 2.06 x USB 2.0/1.1 (2 Back, 4 Internal)

Internal I/O & Headers

Power1 x 24-pin ATX, 1 x 8-pin 12VFan Headers1 x CPU, 2 x SystemLED Headers1 x Addressable, 1 x RGBFront PanelAudio, USB Type-C, USB 3.2 Gen 1, USB 2.0/1.1, Reset, Clear CMOS
