/ PC Components / Motherboard / Asus (AMD) / Asus PRIME B650M-F AM5 mATX Motherboard

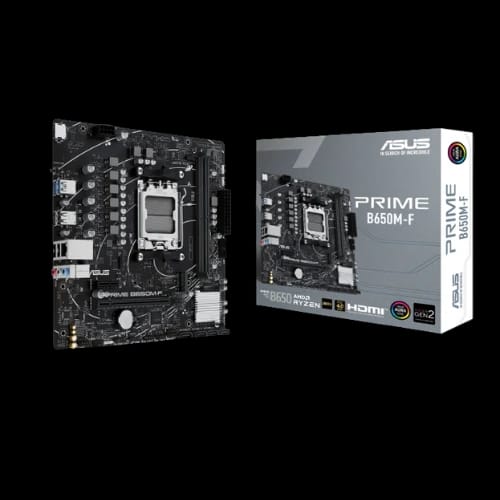

Asus PRIME B650M-F AM5 mATX Motherboard

13,800

Key Features

  • Asus PRIME B650M-F
  • AMD AM5 Socket
  • DDR5 7200+ Support
  • PCIe 4.0 Expansion
  • M.2 NVMe Storage
  • BIOS FlashBack Button

Share:

Technical Specifications

General

Model
PRIME B650M-F
Brand
ASUS
Form Factor
micro-ATX (22.6 × 21.8 cm)
Chipset
AMD B650

Processor Support

CPU Socket
AMD Socket AM5
Supported CPUs
AMD Ryzen™ 9000 / 8000 / 7000 Series
Max CPU Support
Up to 120W

Memory

Memory Slots
2 × DDR5 DIMM
Maximum Capacity
96GB
Memory Speed
DDR5 7200+(OC) to 4800
Memory Architecture
Dual Channel
Memory Profile
AMD EXPO™
ECC Support
Non-ECC, Un-buffered (On-Die ECC)

Graphics

Display Output
1 × HDMI™ 2.1
Maximum Resolution
4K @ 60Hz

Expansion Slots

PCIe x16
1 × PCIe 4.0 x16
PCIe x1
1 × PCIe 4.0 x1

Storage

M.2 Slot
1 × PCIe 4.0 x4
SATA Ports
4 × SATA 6Gb/s
RAID Support
RAID 0/1/10 (PCIe & SATA)

Networking

LAN
Realtek 1Gb Ethernet
LAN Protection
ASUS LANGuard

USB Connectivity

Rear USB
2 × USB 5Gbps Type-A, 4 × USB 2.0
Front USB
2 × USB 5Gbps, 4 × USB 2.0

Audio

Audio Codec
Realtek 7.1 HD Audio
Audio Features
Audio Shielding, Premium Capacitors

Internal Connectors

CPU Fan Header
1 × 4-pin
Chassis Fan Headers
2 × 4-pin
RGB Headers
3 × Addressable Gen 2
Power Connectors
24-pin ATX, 8-pin CPU

Special Features

Protection
ASUS 5X Protection III
Cooling
Aluminum Heatsink
DIY Features
Q-DIMM, Q-Slot, Q-LED Core
BIOS Feature
BIOS FlashBack™
Lighting
Aura Sync

Software

Utilities
Armoury Crate, AI Suite 3
BIOS
UEFI AMI BIOS, 256Mb Flash ROM
Operating System
Windows® 11, Windows® 10 64-bit

Warranty

Warranty
3 Years

Product Description

Powerful Asus PRIME B650M-F AM5 mATX Motherboard for Reliable AMD Performance

Struggling with slow PC performance? The Asus PRIME B650M-F AM5 mATX Motherboard delivers a dependable foundation for your next AMD Ryzen upgrade. Whether you are replacing aging desktop computer components or planning a new system, choosing the right Computer Motherboard plays a crucial role in long-term stability, compatibility, and performance. Built with ASUS engineering, DDR5 memory support, and PCIe 4.0 connectivity, the Asus PRIME B650M-F AM5 mATX Motherboard provides a balanced platform for everyday computing, gaming, and professional workloads.

Designed for AMD Ryzen 9000, 8000, and 7000 Series desktop processors, this motherboard offers the essential features required for modern desktop systems without unnecessary complexity.

Asus AMD Motherboard Price in Bangladesh is a common search among users comparing AM5 platforms, and this model stands out with dependable performance, broad compatibility, and trusted local support. Available through PCB Store, it includes reliable after-sales service, warranty assistance, and technical support across Bangladesh, making it an excellent choice for gamers, creators, professionals, students, and PC enthusiasts.

Asus PRIME B650M-F AM5 mATX Motherboard Specifications and Performance

The Asus PRIME B650M-F AM5 mATX Motherboard is engineered around the AMD B650 chipset to deliver dependable performance for current-generation AMD Ryzen processors. It balances speed, expandability, and reliability, making it suitable for users who want a modern platform for productivity, gaming, and content creation.

AMD B650 Platform Built for Everyday Reliability

Supporting AMD Socket AM5 processors with up to 120W CPU support, the motherboard is designed for users who value consistent operation and future upgrade flexibility. Its micro-ATX layout fits a wide range of desktop cases while maintaining the connectivity expected from a modern ASUS platform.

The combination of DDR5 memory support and PCIe 4.0 architecture enables responsive multitasking, faster storage access, and improved overall desktop performance without compromising stability.

Key Features of Asus PRIME B650M-F AM5 mATX Motherboard

The Asus PRIME B650M-F combines practical hardware with modern connectivity to create a dependable platform for a wide variety of computing needs. Every feature is designed to improve compatibility, installation convenience, and long-term usability.

Support for the Latest AMD Ryzen Processors

The AM5 socket provides compatibility with AMD Ryzen 9000, 8000, and 7000 Series desktop processors. This flexibility allows users to build everything from reliable office PCs to powerful gaming systems and professional workstations while staying within the ASUS ecosystem.

High-Speed DDR5 Memory Support

Supporting up to 96GB DDR5 memory with frequencies reaching 7200+(OC), the motherboard delivers the bandwidth required for demanding applications, creative workloads, and responsive multitasking. AMD EXPO compatibility also simplifies memory configuration for supported DDR5 kits.

PCIe 4.0 Expansion for Modern Hardware

A PCIe 4.0 x16 slot provides high-bandwidth support for modern graphics cards, while the PCIe 4.0 x1 slot accommodates additional expansion cards such as networking adapters, capture cards, or storage controllers. This balanced expansion capability allows users to configure systems according to their workload requirements.

Flexible Storage Options

Storage expansion remains straightforward with support for both NVMe and SATA drives.

  • One PCIe 4.0 M.2 storage slot
  • Four SATA 6Gb/s ports
  • AMD RAIDXpert2 RAID support

This combination enables users to pair high-speed NVMe storage with larger-capacity SATA drives for an efficient balance of speed, storage capacity, and long-term flexibility.

Who Should Buy the Asus PRIME B650M-F AM5 mATX Motherboard?

The Asus PRIME B650M-F strikes an excellent balance between modern performance and practical expandability. It is well suited for users seeking a dependable AMD AM5 platform without paying for unnecessary premium features.

Ideal Users and Recommended Applications

This motherboard is an excellent choice for:

  • PC gamers building an AM5 gaming desktop
  • Office professionals requiring reliable productivity
  • Software developers running multitasking workloads
  • Graphic designers using DDR5 memory platforms
  • Video editors working with fast NVMe storage
  • Freelancers building efficient home-office computers
  • Content creators producing digital media
  • Students assembling long-term desktop systems
  • IT businesses deploying dependable office computers
  • Technology enthusiasts planning a Ryzen-based custom pc build

Its compact micro-ATX form factor also fits a broad selection of PC cases, making it suitable for space-efficient desktop builds without sacrificing essential expansion options.

Where to Buy Asus PRIME B650M-F AM5 mATX Motherboard Online in BD?

If you are comparing the price in Bangladesh before making your purchase, choosing an authorized retailer is just as important as selecting the right motherboard. Buying from a trusted source ensures genuine products, manufacturer warranty coverage, and dependable technical assistance.

Customers looking for all ASUS Products can explore a wide selection through PCB Store, where genuine ASUS hardware is available with competitive pricing and professional customer support. Whether you are upgrading an existing desktop or building a new Ryzen platform, PCB Store provides reliable after-sales service across Bangladesh.

Many buyers searching for PCB Store BD choose the retailer for direct warranty handling, technical guidance, and responsive product support. From purchase to installation assistance, the experienced team helps customers enjoy a smoother ownership experience while ensuring confidence in every component they purchase.

Delivery Charge Info

Inside Dhaka: 80

Outside Dhaka: 130

FAQs

  • What is the price of Asus PRIME B650M-F AM5 mATX Motherboard in Bangladesh?

    Prices change over time. Contact PCB Store for the latest price in Bangladesh and current promotional offers.

  • What makes Asus PRIME B650M-F AM5 mATX Motherboard ideal for gamers?

    Its AM5 support, DDR5 compatibility, PCIe 4.0 expansion, and stable ASUS design make it suitable for modern gaming systems.

  • Where can I buy this motherboard in Bangladesh?

    PCB Store is a trusted source offering genuine products, warranty support, and nationwide after-sales service.

  • Does it support AMD Ryzen 9000 Series processors?

    Yes. It supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors using the AM5 socket.

  • How much DDR5 memory does it support?

    It supports up to 96GB of DDR5 memory with speeds reaching 7200+(OC), depending on CPU and memory configuration.

  • Does it support PCIe Gen4 SSDs?

    Yes. The motherboard includes one PCIe 4.0 M.2 slot for compatible NVMe SSDs.

  • Does it have built-in Wi-Fi?

    No. Wireless networking is not listed among the provided specifications.

  • Is BIOS FlashBack available?

    Yes. BIOS FlashBack allows BIOS updates without installing a compatible CPU.

  • Asus PRIME B650M-F vs B650E motherboard?

    The PRIME B650M-F focuses on practical everyday performance, while B650E models generally offer additional premium expansion features depending on the model.

  • Is this motherboard suitable for content creators?

    Yes. DDR5 memory support, PCIe 4.0 storage, and Ryzen processor compatibility make it suitable for editing, productivity, and creative workloads.
