Technical Specifications
Model Details

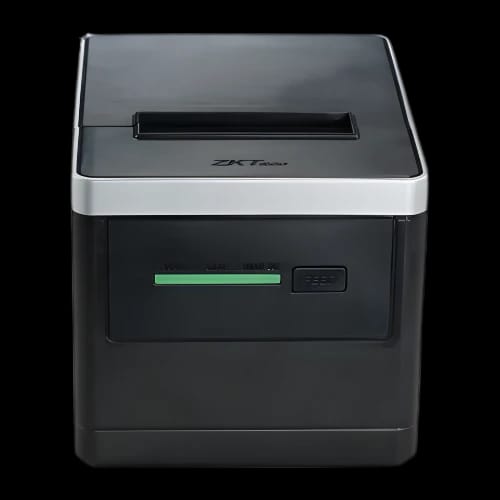

| Model | ZKTeco ZKP8008 |
| Product Type | POS Receipt Printer |
| Category | Office Equipment |
| Sub-Category | POS Printer |
Printing System
| Print Method | Direct Thermal Line Printing |
| Print Speed | 260 mm/sec |
| Print Command | ESC/POS Compatible |
| Print Head Life | 100 km |
Character Printing
| Font A | 12×24 dots, 1.5(W) × 3.0(H) mm |
| Font B | 9×17 dots, 1.1(W) × 2.1(H) mm |
| Chinese Characters | 24×24 dots, 3.0(W) × 3.0(H) mm |
| Alphanumeric | ASCII 12×24 dots |
Barcode Support
| 1D Barcode Types | UPC-A, UPC-E, EAN13, EAN8, CODABAR, ITF, CODE39, CODE93, CODE128 |
Connectivity Interface
| Interface | USB + LAN |
Power Specifications
| Power Output | DC 24V / 2.5A |
| Cash Drawer Port | DC 24V / 1A |
Paper Handling
| Paper Type | Thermal Receipt Paper |
| Paper Width | 79.5 ± 0.5 mm |
| Print Width | 72 mm |
| Paper Thickness | 0.060 – 0.08 mm |
| Roll Diameter | 83 mm |
| Paper Cutter | Auto Cutter (Full / Partial) |
Operating Environment
| Operating Temperature | 5 – 45°C |
| Operating Humidity | 10 – 80% RH |
Physical Dimensions
| Dimensions | 192 × 145 × 133 mm |
| Weight | 2 kg |
Software Support
| Supported OS | Android, iOS, Linux, Windows 2000, Windows 2003, Windows XP, Windows 7, Windows 8, Windows 8.1 |
Warranty
| Warranty | 1 Year |
