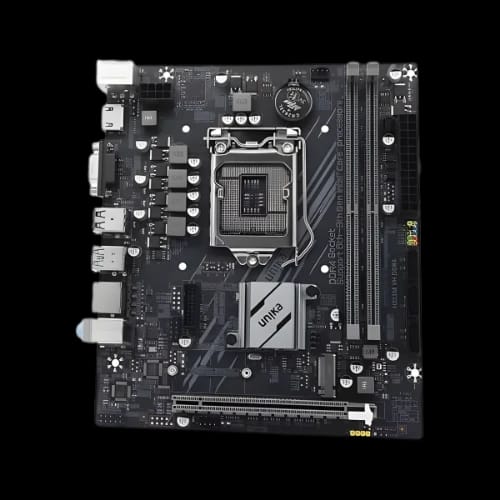

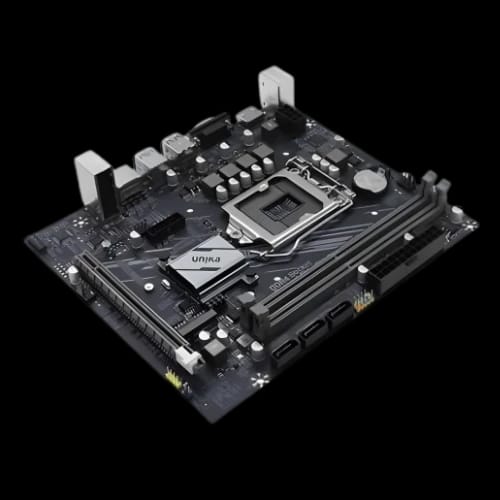

Unika UN-H311M VH DDR4 SNIPER 9th Gen Micro ATX Motherboard

Product Description

Unika UN-H311M VH DDR4 SNIPER 9th Gen Micro ATX Motherboard

Is system lag ruining your workflow? The Unika UN-H311M VH DDR4 SNIPER 9th Gen Micro ATX Motherboard eliminates performance bottlenecks. This board provides a stable foundation for Intel enthusiasts. It handles demanding tasks without breaking a sweat. You get consistent power delivery for long-term use.

Unika UN-H311M VH Performance and Socket Support

The Unika UN-H311M VH focuses on high compatibility within the Intel platform. It utilizes the LGA1151 socket to house various processors. You can install Intel 6th, 7th, 8th, or 9th Gen CPUs easily. This makes it a top choice for users upgrading existing systems. It also maintains support for legacy Intel Core i7, i5, and i3 chips.

The Intel H311M chipset provides a stable foundation for daily computing tasks. It handles data traffic between the CPU and peripherals efficiently. This board fits into the PC Components category as a reliable entry-level backbone. Whether you use a Celeron or a Pentium, the power delivery remains consistent.

Memory and Storage Capabilities of UN-H311M VH

Speed matters when multitasking in Bangladesh. The Unika UN-H311M VH DDR4 SNIPER features two DDR4 memory slots. It supports a maximum capacity of 16 GB RAM. You can use high-speed modules ranging from 2666MHz to 3000MHz. This range helps reduce latency during heavy application use.

Storage options are modern and fast. The integrated M.2 interface supports NVMe or SATA SSDs. It accepts 2242, 2260, and 2280 type storage devices. This slot allows for much faster boot times than standard hard drives. Your Motherboard will feel snappy and responsive with an M.2 drive installed.

Expansion Slots and Graphics Integration

Building a custom PC at PCB Store requires room for expansion. The Unika UN-H311M VH includes a PCI-Express 4.0 X 16 slot. This allows you to add a dedicated graphics card for better visuals. There is also a PCI-E X 1 slot for extra add-in cards.

Connectivity is a major highlight of this UNIKA Shuangmin product. It features three different display outputs. You get a DisplayPort, an HDMI port, and a VGA port. This variety ensures you can connect almost any monitor or projector. It is ideal for office setups or home media centers.

Networking and Audio Features

Reliable internet is vital for any user in Bangladesh. The Unika UN-H311M VH DDR4 SNIPER 9th Gen Micro ATX Motherboard uses a Realtek 8111H Gigabit card. This RJ45 Ethernet port provides stable wired connections. For those who prefer wireless, it includes a dedicated M.2 Wi-Fi interface. You can add a Wi-Fi card without taking up a PCIe slot.

Audio quality is handled by the Realtek ALC897 sound card. This high-fidelity independent chip produces clear sound for music and movies. The rear panel includes three 3.5mm audio ports for speakers or headsets. It delivers a solid audio experience without needing external DACs.

Physical Build and USB Connectivity

The m-ATX form factor measures just 170mm x 220mm. This compact size fits into almost any small or medium PC case. The black PCB gives it a professional look. It uses a 24pin plus 8pin power connector for stable energy flow.

USB ports are plentiful on this board. You find two USB 3.0 ports at the rear for fast data transfers. Four USB 2.0 ports are available for keyboards and mice. You can expand further using the front-panel headers. This provides a total of four additional USB ports for your chassis.

Reliable Choice at PCB Store

Choosing the right Motherboard involves looking at long-term support. UNIKA Shuangmin offers a 3-year warranty on this model. This protection builds trust for buyers looking for durability. You can find this board at PCB Store, a trusted name for PC Components. It serves as a cost-effective solution for building a new PC or repairing an old one. The build quality targets longevity and steady performance.
