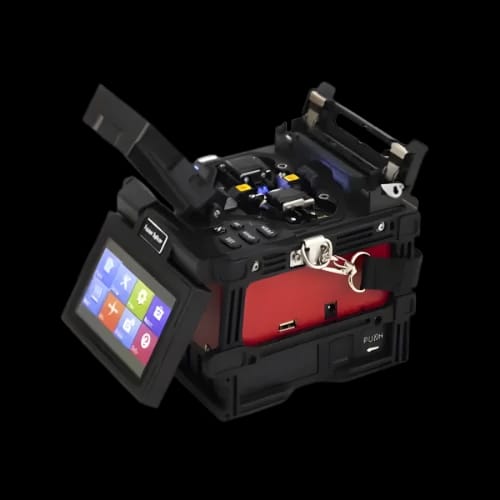

Shinho X-97 Optical Fiber Splicing Machine
Key Features
- X-97 Model
- Wide Fiber Support
- High Magnification
- Precise Cleave Range
- Dual-Axis Viewing
Out Of Stock
Share:
Technical Specifications
General
Fiber Handling
Optical System
Warranty
Product Description
Shinho X-97 Optical Fiber Splicing Machine — Stop splice errors slowing your network builds
Precision splice failures waste time, fiber, and trust. Shinho X-97 Optical Fiber Splicing Machine targets that pain with controlled cleave ranges, high magnification views, and wide fiber support—built for clean joints and predictable field work.
Shinho X-97 Optical Fiber Splicing Machine overview for networking professionals
Networking teams in Bangladesh handle mixed fiber types daily. This splicer fits that reality. The X-97 works across common G-series fibers and supports practical cleave lengths for consistent preparation.
Short setup cycles matter. Clear visual feedback matters more. The X-97 centers on magnification control and fiber diameter tolerance to support accurate alignment without guesswork.
Product specifications and performance snapshot of Shinho X-97
These specifications define how the machine behaves during real splicing tasks. No inflated claims. Just what the unit supports.
- Model: X-97
- Fiber cleave length: 10–16 mm
- Supported fiber diameter: 80–150 μm
- Fiber magnification:
- 320X on X or Y single-axis view
- 160X on dual-axis X and Y view
- Applicable fiber types: G651, G652, G653, G655, G657, and related variants
Each parameter supports controlled handling across installation and maintenance workflows.
Key features that define Shinho X-97 Optical Fiber Splicing Machine value
Controlled cleave length for stable preparation
Cleave length control reduces variability during splicing. The 10–16 mm range fits common field practices. It supports repeatable fiber positioning without frequent rework.
Wide fiber diameter tolerance
Fiber diameters vary across deployments. The X-97 accepts 80–150 μm. That range covers standard single-mode fibers used across access and backbone networks.
High magnification views for confident alignment
Visual clarity drives splice quality. The X-97 provides 320X magnification on single-axis views. Dual-axis inspection runs at 160X. This balance supports both inspection depth and spatial awareness.
Broad fiber compatibility for mixed networks
The machine supports G651 through G657 fibers. That coverage suits legacy links, metro builds, and modern bend-insensitive runs. Teams avoid switching tools between jobs.
Optical performance focus inside Shinho X-97 splicing workflow
Splicing accuracy depends on what technicians see and control. The X-97 emphasizes visual verification during alignment. Single-axis magnification allows focused inspection. Dual-axis mode confirms symmetry before final steps.
Controlled cleave length supports fiber end-face consistency. Consistent preparation improves alignment confidence. The process stays predictable across repeated operations.
No exaggerated automation claims here. The value sits in clear viewing and tolerance handling that experienced technicians appreciate.
Practical use cases for Shinho X-97 Optical Fiber Splicing Machine
This splicer fits varied networking scenarios across Bangladesh.
- FTTH rollout and last-mile maintenance
- ISP backbone repairs and expansions
- Campus and enterprise fiber management
- Metro network upgrades using mixed G-series fibers
Teams dealing with multiple fiber standards benefit from one dependable splicer on-site.
Compatibility and deployment fit within networking environments
The Shinho X-97 integrates into existing fiber workflows without forcing process changes. It works with common fiber standards already present in regional networks.
Technicians trained on standard optical splicing practices adapt quickly. The magnification options support both learning and expert-level inspection habits.
Networking contractors sourcing tools from PCB Store often seek machines that handle varied jobs. The X-97 fits that requirement within the local market.
Reliability expectations from Shinho X-97 Optical Fiber Splicing Machine
Reliability starts with predictable behavior. The X-97 focuses on stable handling across supported fiber diameters and cleave lengths.
Clear optical feedback reduces operator uncertainty. Reduced uncertainty lowers repeated splice attempts. That protects fibers and saves project time.
While warranty terms depend on seller policies, the machine’s defined operating ranges support dependable daily use when handled properly.
Why networking teams choose Shinho X-97 at PCB Store Bangladesh
Availability matters as much as capability. Sourcing through PCB Store in Bangladesh means local access, faster procurement, and regional support expectations.
Networking projects move fast. Waiting weeks for replacements slows rollouts. Local stock presence reduces downtime risks for contractors and ISPs.
Ready to deploy cleaner fiber joints today
If splice accuracy, fiber compatibility, and visual control drive your decisions, this machine fits the brief. The Shinho X-97 supports real-world networking demands without unnecessary complexity.
Check current availability at PCB Store Bangladesh and align your next deployment with reliable optical splicing control.
Delivery Charge Info
Inside Dhaka: ৳100
Outside Dhaka: ৳150
FAQs
Is Shinho X-97 Optical Fiber Splicing Machine compatible with single-mode fibers?
Yes. The X-97 supports common single-mode standards like G652, G655, and G657. This compatibility suits access, metro, and backbone networks using standard single-mode fiber types.
What fiber diameter range does the Shinho X-97 support?
The machine works with fiber diameters from 80 to 150 micrometers. This range covers most standard optical fibers used in telecom and ISP installations.
Does Shinho X-97 handle bend-insensitive fibers?
Yes. Support for G657 fibers allows handling bend-insensitive fiber commonly used in FTTH and indoor installations where tight routing paths exist.
How does the magnification system help during splicing?
The X-97 offers 320X magnification for single-axis inspection and 160X for dual-axis views. These options help technicians verify alignment clearly before completing splices.
Is Shinho X-97 suitable for field technicians in Bangladesh?
Yes. Its supported fiber types and tolerance ranges align with fiber commonly deployed across Bangladesh. Local availability through PCB Store also supports faster project execution.
How does Shinho X-97 compare with other optical splicing machines?
Compared with basic splicers, the X-97 provides higher magnification control and wider fiber compatibility. This suits mixed-network environments rather than single-standard deployments.
What power or thermal considerations apply to Shinho X-97?
The provided specifications focus on optical handling and compatibility. Power and thermal behavior depend on operating conditions and proper handling during field use.
Is the Shinho X-97 available at PCB Store in Bangladesh, and what is the price?
Yes. PCB Store lists the Shinho X-97 in Bangladesh. Pricing varies by stock and supply conditions, so checking the current listing gives the most accurate local price.
