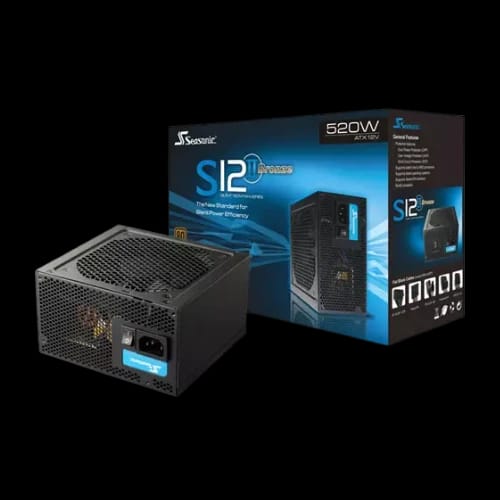

SEASONIC S12II 520 Watt Power Supply

Product Description

SEASONIC S12II 520 Watt Power Supply — Power instability ruining your PC’s reliability?

Unstable voltage, random shutdowns, or coil noise often trace back to weak power delivery.

The SEASONIC S12II-520 Watt Power Supply targets that pain directly.

It focuses on electrical stability, controlled thermals, and long operating life.

Built for daily systems that demand consistency, not marketing noise.

This unit sits in the PC Components category under the Power Supply segment.

At PCB Store, shoppers across Bangladesh often choose it for dependable mid-range builds.

Its design favors proven engineering over experimental features.

SEASONIC S12II-520 Watt Power Supply Specifications and Performance Overview

Power supplies shape system stability more than any single component.

The SEASONIC S12II-520 Watt Power Supply uses an Intel ATX 12 V form factor.

That standard supports mainstream desktop platforms without adapter workarounds.

The housing measures 150 mm × 140 mm × 86 mm.

This size fits most ATX cases sold in Bangladesh.

Cable routing remains manageable even in compact mid-towers.

Efficiency matters under daily loads.

This unit carries an 80PLUS® Bronze rating.

Lower energy loss means reduced heat and steadier voltage under stress.

Electrical Design and Output Stability

Full-range AC input supports varied grid conditions.

That matters in regions with voltage fluctuation.

The PSU adapts without manual switching.

Built-in protections include OPP, OVP, UVP, and SCP.

These safeguards limit damage during abnormal events.

They also extend connected component lifespan.

The internal platform focuses on consistent rail behavior.

Stable output prevents sudden crashes during gaming or productivity spikes.

That reliability defines Seasonic’s long-standing reputation.

Cooling Architecture and Thermal Behavior

Thermal control defines power supply longevity.

The SEASONIC S12II-520 Watt Power Supply uses a 120 mm fan.

Larger blades move air at lower RPM.

Fan operation relies on Seasonic S2FC control logic.

Speed adjusts based on internal temperature.

Noise remains restrained during low to mid loads.

A Fluid Dynamic Bearing supports smoother rotation.

Friction stays low even after years of use.

This design aligns with the unit’s extended service life goals.

The operating temperature ceiling reaches 40 °C.

That suits typical room conditions across Bangladesh.

Thermal stability holds during extended sessions.

Build Quality, Cabling, and Internal Longevity

The PSU follows a fully wired design.

All cables come fixed to the chassis.

This approach favors electrical integrity and lower resistance.

Cables arrive as flat black cables.

They bend easily and route cleanly.

Airflow obstruction stays minimal inside the case.

Rated life expectancy reaches 50,000 hours at 40 °C.

Humidity tolerance spans 15% to 65% R.H.

Such figures reflect conservative engineering margins.

The internal platform posts an MTBF of 150,000 hours at 25 °C, fan excluded.

That metric signals reliability across long duty cycles.

Office systems benefit as much as home PCs.

Power Efficiency and Real-World Usage

Efficiency reduces wasted energy.

Lower waste means less heat buildup.

That eases stress on internal components.

An Energy Star compliant design supports modern efficiency standards.

Compliance also includes RoHS, WEEE, and REACH.

Environmental responsibility aligns with regulatory demands.

Daily users notice steadier behavior during multitasking.

Gaming loads stay controlled without voltage sag.

Productivity workflows avoid unexplained restarts.

Compatibility With Modern PC Builds

The SEASONIC S12II-520 Watt Power Supply supports standard ATX cases.

Motherboards using Intel ATX 12 V layouts connect directly.

No proprietary connectors complicate installation.

It pairs well with mid-range CPUs and GPUs.

Workstations, home PCs, and office builds fit its output range.

System integrators at PCB Store often recommend it for balance-focused setups.

This PSU suits users prioritizing stability over RGB lighting.

Function takes precedence over aesthetics.

That focus appeals to long-term system planners.

Reliability, Warranty, and Brand Trust

Seasonic’s track record rests on electrical discipline.

This model reflects that philosophy clearly.

No exaggerated claims distract from core performance.

The unit includes a 03-year warranty.

That coverage supports confidence after purchase.

Local buyers in Bangladesh value accessible warranty handling.

PCB Store maintains availability within the local market.

That shortens replacement timelines if service is required.

Trust builds through consistent after-sales support.

Why Choose SEASONIC S12II-520 Watt Power Supply From PCB Store

Power delivery defines system health.

Cheap units risk component damage over time.

This model avoids that gamble.

PCB Store stocks genuine units for Bangladesh customers.

Local sourcing reduces uncertainty.

Pricing reflects the official distribution channel.

The SEASONIC S12II-520 Watt Power Supply suits builders wanting calm reliability.

No flashy extras distract from its purpose.

It simply powers systems correctly, day after day.

Availability remains steady due to ongoing demand.

Waiting often leads to stock gaps.

Securing one early avoids build delays.
