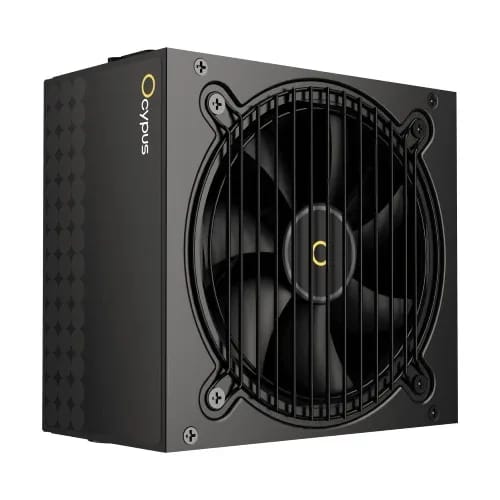

Ocypus BETA P600 600W Non Modular ATX Power Supply

Product Description

Ocypus BETA P600: A 600W ATX Power Supply for Your Build

The Ocypus BETA P600 600W Non Modular ATX Power Supply provides a conventional wired power setup for a compatible desktop PC. It follows the ATX 2.53 standard and combines a 600W output rating with active PFC and a temperature-controlled cooling fan. The BETA P600 price in Bangladesh is BDT 3,700 at PCB Store, with a 3-year warranty.

Plan Around Your System Requirements

A power supply should match both the power requirements and the connections of the complete computer. Consider the processor, graphics card, drives, cooling hardware and any planned upgrades when deciding whether 600W is appropriate. Check the component manufacturers’ recommendations and connector requirements before buying. The wattage rating is one part of that decision; the physical fit and available cable connections matter as well.

The BETA P600 uses an active PFC and double-tube forward design. Its specified AC input range is 200–240V, with a 50–60Hz frequency and 5A input current rating. Confirm that the power available at the installation location matches that range. The rated 600W output describes its power capacity, rather than a fixed amount that every computer will continuously draw.

Non-Modular Cables and Compact ATX Housing

The non-modular design keeps the cables attached to the unit. Route the cables you need to their corresponding components, then secure unused sections where they will not obstruct airflow or moving fans. Planning the route before fitting components can make the build easier to assemble and maintain. Avoid sharply bending cables at the connectors or placing tension on the component sockets.

The black enclosure measures 140 × 150 × 86mm, and the net weight is approximately 1.35kg. Check the case power-supply bay and leave space for the attached cables when assessing clearance. An enclosure with a drive cage near the PSU may need particular attention to cable room. Follow the case mounting arrangement so that the unit has access to ventilation.

Temperature-Controlled Cooling and Protection

A 120mm hydraulic-bearing fan cools the power supply. Thermal control adjusts fan speed according to operating conditions, balancing cooling demand with fan operation. Keep the intake and exhaust areas clear during use, and follow the case filter-maintenance guidance to reduce dust buildup around the ventilation openings.

The BETA P600 includes over-voltage protection, short-circuit protection and over-power protection, commonly abbreviated OVP, SCP and OPP. Its specified hold-up time is greater than 12ms. These are useful technical details to compare when selecting components for a compatible desktop system. Install and connect the unit according to its instructions, with the computer disconnected from mains power during assembly.

Ocypus BETA P600 Price and Warranty

At BDT 3,700 from PCB Store, the BETA P600 offers a 600W rating, fixed cabling and an ATX 2.53 format. A 3-year warranty accompanies the unit. Confirm your system load, cable needs and case clearance to choose it for a suitable build.
