Technical Specifications
General Information

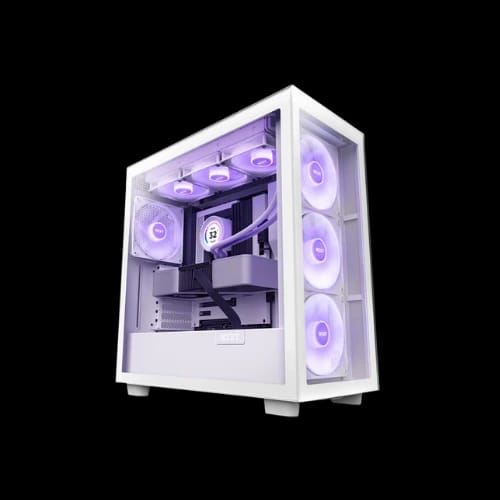

| Product Name | NZXT H7 Elite 2023 Edition Premium ATX Mid-Tower Casing (White) |
| Product Category | PC Components – Casing |
| Case Type | Mid-Tower |
Build & Design
| Color | White |
| Materials | SGCC Steel, Dark Tinted Tempered Glass |
| Tempered Glass Panel | Yes |
Motherboard Compatibility
| Supported Motherboards | Mini-ITX, Micro-ATX, ATX |
| Expansion Slots | 7 |
Dimensions & Weight
| Height | 505 mm (with feet) |
| Width | 230 mm |
| Depth | 480 mm |
| Weight | 11.36 kg |
Front I/O Ports
| USB Ports | 2 × USB 3.2 Gen 1 Type-A |
| Type-C Port | 1 × USB 3.2 Gen 2x2 Type-C (20 Gbps) |
| Audio Port | 1 × Headset Audio Jack |
Cooling Support
| Front Radiator | Up to 360 mm (Push/Pull) |
| Top Radiator | Up to 360 mm |
| Rear Radiator | Up to 140 mm |
| Front Fan Support | 3 × 120 mm / 3 × 140 mm |
| Top Fan Support | 3 × 120 mm / 2 × 140 mm |
| Rear Fan Support | 1 × 120 mm / 1 × 140 mm |
| Dust Filters | All Air Intakes |
Pre-Installed Fans
| Front Fans | 3 × F140 RGB Core |
| Rear Fan | 1 × F140Q Airflow Fan |
Storage Support
| 2.5″ Drive Bays | 4 + 2 |
| 3.5″ Drive Bays | 2 |
Clearance Space
| Max CPU Cooler Height | Up to 185 mm |
| Max GPU Length | Up to 400 mm |
Connectivity
| Fan Connector | 4-pin PWM |
Warranty
| Warranty | No Warranty |
