Technical Specifications
Graphics Card

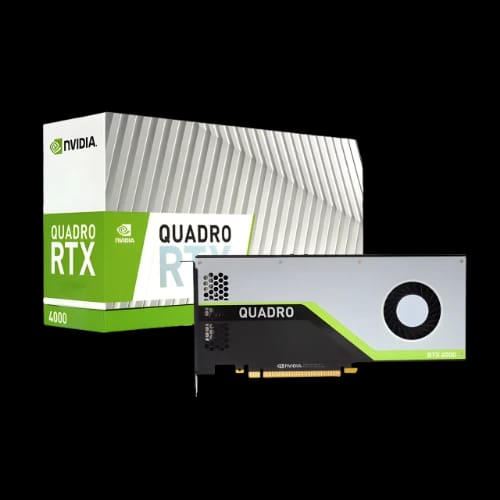

| Model | Nvidia Quadro RTX4000 |
| Category | AI Work Station HPC |
| Sub-Category | Nvidia Quadro |
| Form Factor | 4.4" H × 9.5" L, Single Slot |
Memory
| Memory Capacity | 8 GB GDDR6 |
| Memory Interface | 256-bit |
| Memory Bandwidth | Up to 416 GB/s |
Processing Performance
| CUDA Cores | 2304 |
| Tensor Cores | 288 |
| RT Cores | 36 |
| Single Precision Performance | 7.1 TFLOPS |
| Tensor Performance | 57.0 TFLOPS |
Interface & Connectivity
| System Interface | PCI Express 3.0 x16 |
| Display Connectors | 3× DisplayPort 1.4, 1× USB-C |
| Max Simultaneous Displays | Up to 4 Displays |
Display Resolution Support
| 4 Display Output | 3840×2160 @ 120Hz |
| 4 Display Output | 5120×2880 @ 60Hz |
| 2 Display Output | 7680×4320 @ 60Hz |
Power & Thermal
| Total Board Power | 160 W |
| Total Graphics Power | 125 W |
| Thermal Solution | Active Cooling |
API Support
| Graphics APIs | Shader Model 5.15, OpenGL 4.66, DirectX 12.05, Vulkan 1.16 |
| Compute APIs | CUDA, DirectCompute, OpenCL |
| VR Support | VR Ready |
Warranty
| Warranty | 2 Years |
