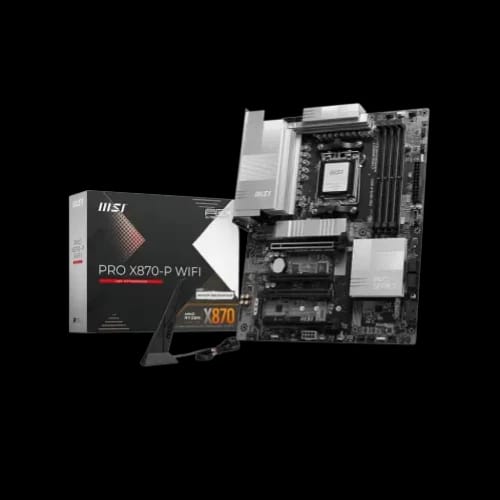

MSI PRO X870-P WIFI AM5 ATX Motherboard

Product Description

MSI PRO X870-P WIFI AM5 ATX Motherboard in Bangladesh

Is unstable connectivity limiting a modern Ryzen build? The MSI PRO X870-P WIFI targets that problem with Wi-Fi 7, 5G LAN, DDR5 support, and PCIe 5.0 expansion. This MSI Motherboard uses the AMD X870 chipset with AM5 socket support for Ryzen 9000, 8000, and 7000 Series processors.

AMD X870 Platform and Core Engineering

The MSI PRO X870-P WIFI is an ATX AMD AM5 Motherboard built around AMD's X870 chipset. Its four DDR5 UDIMM slots support up to 256GB, with memory speeds reaching 8200+ MT/s through overclocking.

Key platform advantages include:

• AMD Ryzen 9000, 8000, and 7000 Series support
• Four DDR5 memory slots
• Up to 256GB system memory
• AMD EXPO memory support
• Dual-channel memory architecture
• PCIe 5.0 x16 graphics interface
• Three M.2 NVMe storage slots

The primary PCIe x16 slot connects directly to the CPU and supports PCIe 5.0 with compatible Ryzen 9000 or 7000 processors. Lower processor tiers can operate the slot at PCIe 4.0 bandwidth.

PCIe 5.0 Graphics and High-Speed Storage

The board provides one CPU-connected PCIe 5.0 x16 slot alongside chipset-connected PCIe slots for additional expansion cards. This configuration suits gaming PCs, productivity systems, and workstation-style builds requiring multiple devices.

Storage flexibility comes from three M.2 sockets with different bandwidth levels:

• M.2_1: PCIe 5.0 x4 from CPU
• M.2_2: PCIe 4.0 x4 from chipset
• M.2_3: PCIe 4.0 x2 from chipset
• RAID 0 and RAID 1 support for M.2 NVMe drives

The primary Gen5 M.2 interface makes this DDR5 Motherboard suitable for users planning a high-speed NVMe upgrade path without replacing the platform later.

Wi-Fi 7, 5G LAN and USB Connectivity

The integrated Wi-Fi 7 module supports 2.4GHz, 5GHz, and 6GHz bands, including 320MHz channels and speeds up to 5.8Gbps. Bluetooth 5.4 and Multi-Link Operation add modern wireless connectivity.

Wired networking uses Realtek 8126VB 5G LAN, providing a higher-bandwidth alternative for compatible routers, switches, and local network infrastructure. This makes the board particularly useful as a WiFi Motherboard BD buyers can use for modern wireless setups.

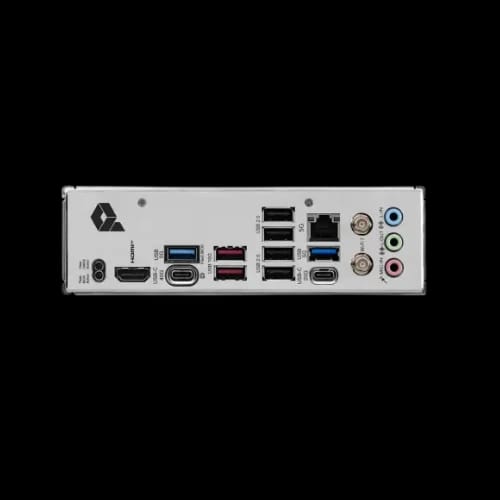

Rear connectivity includes:

• USB 40Gbps Type-C
• USB 20Gbps Type-C
• USB 10Gbps Type-A
• USB 5Gbps Type-A
• HDMI 2.1
• Type-C DisplayPort 1.4
• 5G Ethernet
• Wi-Fi 7 antenna connection

The USB 40Gbps Type-C interface also supports high-bandwidth peripheral and storage workloads, while the board includes connectors for optional Thunderbolt 5 expansion cards.

Power Delivery, Cooling and System Control

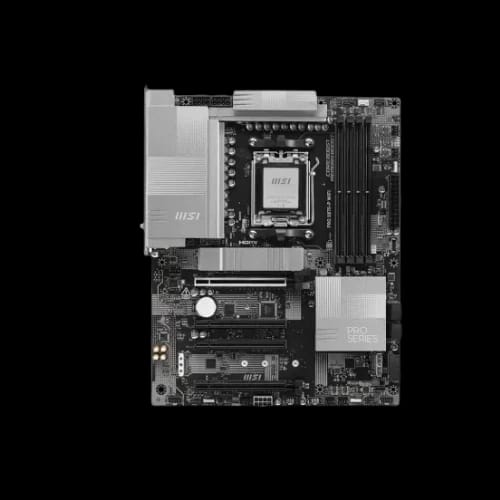

The internal layout provides one ATX power connector, two CPU power connectors, and a dedicated 8-pin PCIe power connector. Six system-fan headers plus CPU and combo pump/system-fan connections support flexible cooling configurations.

For maintenance and troubleshooting, four EZ Debug LEDs provide quick visual indication of hardware initialization problems. Three addressable RGB headers and one standard RGB header support compatible lighting components without requiring additional controller hardware.

Practical Setup Checklist

• Install the latest compatible Ryzen processor for the intended workload.
• Populate DDR5 modules according to the recommended dual-channel configuration.
• Use the CPU-connected M.2 slot for the fastest Gen5 NVMe drive.
• Connect the Wi-Fi antennas before wireless networking setup.
• Provide adequate case airflow around the CPU and VRM area.
• Use a quality power supply matched to the complete system.

Real-World Use Cases and Target Users

The MSI PRO Motherboard fits gaming, professional productivity, content creation, software development, and enthusiast PC builds. Its AM5 platform also gives buyers room for future processor and storage upgrades.

Recommended users include:

• Ryzen gaming PC builders
• Freelancers and office professionals
• Software developers
• Content creators
• PC enthusiasts
• High-speed network users
• Students and home workstation users

For users comparing an older platform with a new Ryzen system, the combination of DDR5, Wi-Fi 7, 5G LAN, and PCIe 5.0 provides a significantly more current connectivity foundation.

Compatibility and Bangladesh Setup Considerations

The motherboard requires an AM5-compatible Ryzen processor, DDR5 memory, and an ATX-compatible chassis. Display outputs depend on the processor's graphics capability, while PCIe and M.2 bandwidth vary according to the installed Ryzen generation.

In Bangladesh, dust accumulation and seasonal humidity make airflow and periodic cleaning particularly useful. Keep intake filters clean, avoid placing the PC directly against dusty surfaces, and maintain unobstructed fan paths for stable long-session operation.

Reliability, Warranty, and PCB Store Trust

The MSI PRO X870-P WIFI carries a 3-year manufacturing warranty. Buyers should retain purchase documentation and follow the applicable warranty process for hardware-related claims.

PCB Store supports customers seeking Original MSI Products, with local purchasing assistance, warranty guidance, and nationwide delivery options. Availability and the current Motherboard Price in BD can vary with stock and market conditions.

Availability, Price and Purchase Guidance

The MSI PRO X870-P WIFI is a strong choice for buyers planning a feature-rich AM5 system with modern networking and high-speed expansion. Its combination of X870, Wi-Fi 7, 5G LAN, PCIe 5.0, and DDR5 makes it suitable for long-term platform upgrades.

For buyers looking to buy  MSI motherboard in Bangladesh, PCB Store is a practical local purchasing option for checking current stock, pricing, authenticity, and warranty coverage.
